MSilentW-U6 Series Infrared Panoramic Camera

China Moneypro

SilentW-U6 is a solution for large area monitoring by using a 12μm 640×512 thermal detector and capturing 360° panoramic image.

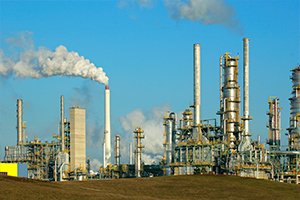

SilentW is able to detect mulitple objects at same time and can be widely used in oil/gas fiels and mines to make a comprehensive security solution.

Feature

Industry-Leading Infrared Detector

Adopts either a state-of-the-art 12μm uncooled infrared sensor or a high-performance mid-wave infrared (MWIR) cooled detector, paired with advanced infrared imaging algorithms to deliver sharp, long-range visuals.

360° Panoramic Monitoring

Recognizes a complete 360° field of view in about 2 seconds and streams live panoramic footage, ensuring all-around visual coverage with no hidden gaps.

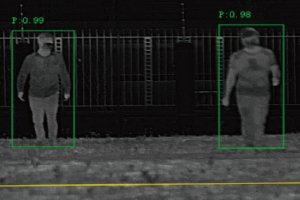

Multi-Target Detection

Simultaneously identify and follow as many as 128 objects, with a detection distance reaching 8 kilometers.

Link with PTZ Camera

To simplify calibration, connect a dual-spectrum PTZ camera for target tracking. Employ a zoom lens to capture detailed visuals from extended ranges.

Intelligent Detection Algorithm

An artificial intelligence algorithm based on deep learning, capable of identifying targets such as people, ground vehicles, maritime vessels, and unmanned aerial vehicles.

Low Power Consumption

Low power consumption, compatible with solar power, and minimizes infrastructure requirements.

Specification

Thermal Module
Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
Resolution	640×512
Pixel Pitch	12μm
Focal Length	55mm/75mm
PTZ
Pan	360° continuous，180°/s or 133°/s
Tilt	-20°~+35°，motorized
Scan mode	Panorama Scan
Smart Function
Fire Detection	Support
VCA	Motion Target Detection/AI Detection
Linkage Action	Linkage of PTZ camera
System Interface
Power	DC 30V 5A
Network	1000M Ethernet port
General
Work Environment	-40℃~+70℃
Protection	IP66
Power Consumption	≤30W
Dimenstion(mm)	327×260×377
Weight	20kg
