MTR630 Thermal Imaging Scope
China Moneypro
TR Series is an economical civilian infrared thermal imaging scope that adopts high sensitivity thermal detector with three different lens options 25 mm, 35 mm, and 50 mm. The TR Series offers sharp, detailed images with 640 × 512 IR resolution while retaining accuracy. TR thermal scope also features a compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in harsh weather.
640×512IR resolution
35mm F1.0Focal length
12.5°×10.0°Field of view
1024×768AMOLED display

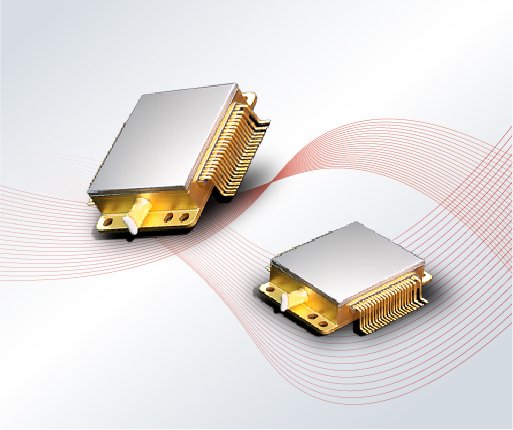

High Definition Detector
The TR Series is equipped with premium 12µm thermal sensors, delivering a 400×300 resolution and a 25mK NETD. This enables exceptionally clear imaging and outstanding thermal sensitivity, even under diverse weather conditions.
Full-color HD AMOLED Display
Featuring a 0.39-inch full-color HD AMOLED screen at 1024×768 resolution, this display brings every moment to life with crystal clarity, deep contrast, and brilliant color reproduction.

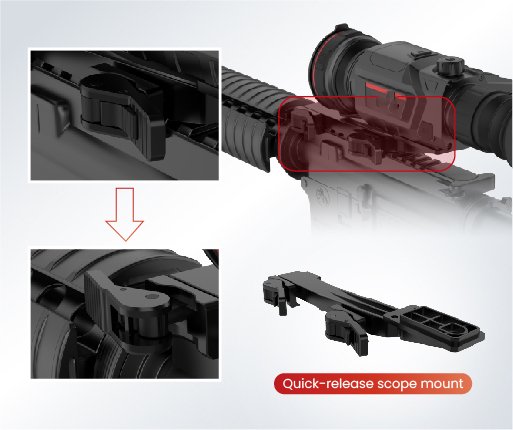

Quick-release scope mount for tool-free mounting
Simply attach the TR Series to the quick-release scope mount, then secure it by tightening the locking lever—no additional tools are needed for a fast, reliable setup.

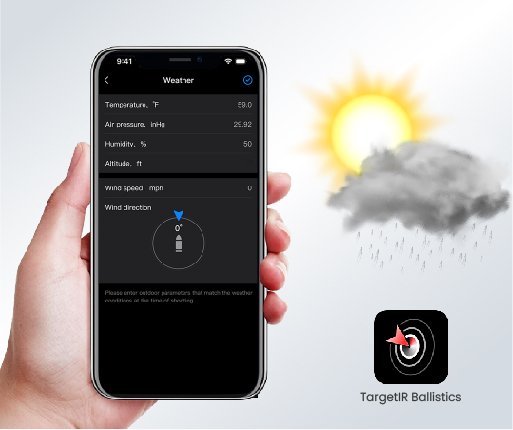

Ballistic Calculation
Connect your device to the TargetIR Ballistics App (available on Android and iOS) to configure bullet and weather settings. Once the data is sent to the device for ballistic computation, you can achieve highly accurate shooting with ease.

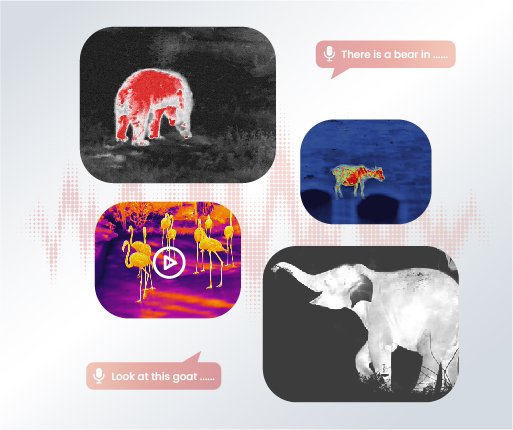

Capturing photos and videos with audio
The photo and video feature lets users record and share great moments on the go, and it comes with a built-in microphone for capturing audio.

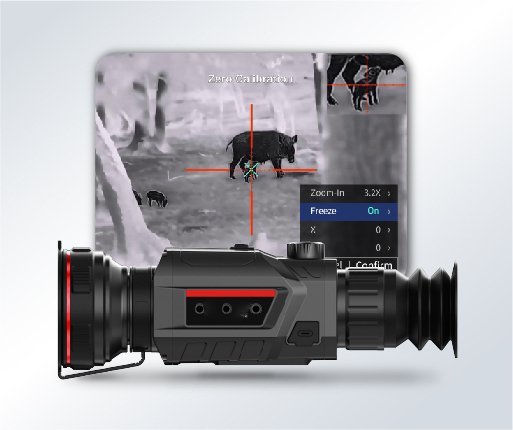

One-touch Freeze
The screen can be frozen to enable fast, effortless zeroing, which boosts precision and makes operation more convenient—leading to an improved overall user experience.

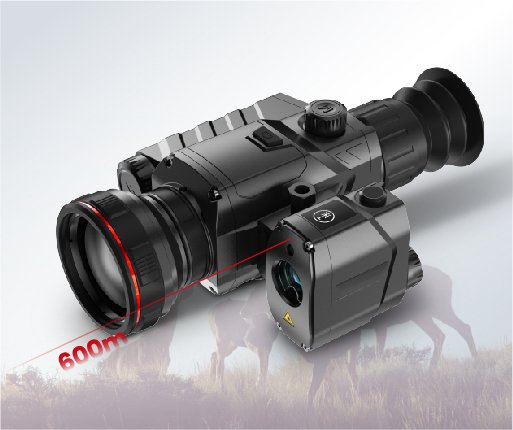

External Laser Range Finder
With an external laser rangefinder, the TR series enables precise distance measurement up to 600 meters for rapid target acquisition. It supports plug-and-play functionality upon startup, eliminating the need for manual pairing.

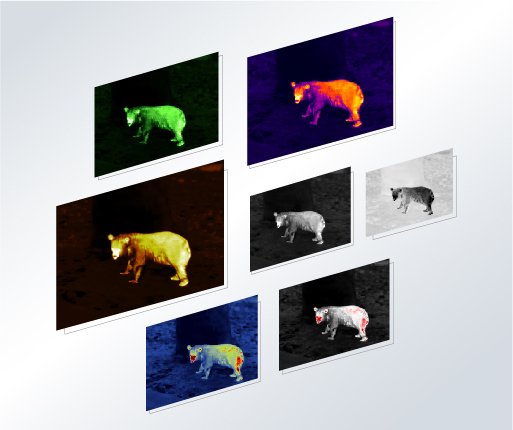

Seven Color Palettes
These 7 color palettes enhance visibility in different environments. White Hot, Black Hot, and Red Hot work best for detecting objects. Meanwhile, Green Hot, Iron Red, Blue Hot, and Sepia aid in improving target recognition and identification.

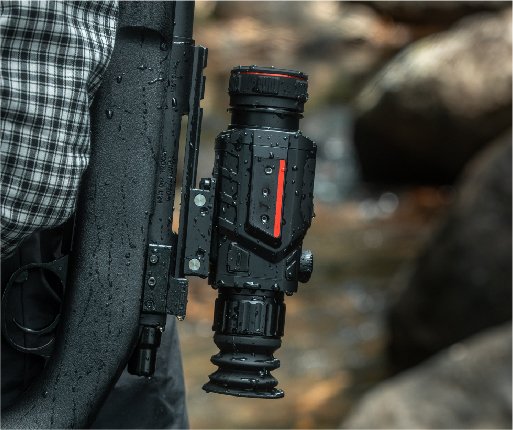

IP67 Protection Rating
With an IP67 rating for waterproof and dustproof protection, the TR Series is built to perform in high humidity, heavy rain, and dusty environments. It also offers outstanding durability against physical impact, withstanding shocks as high as 800G.

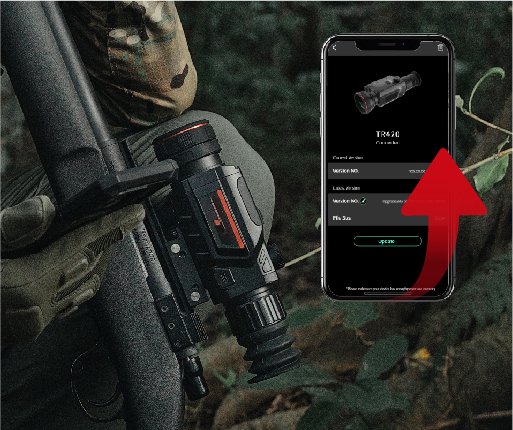

OTA Upgrade
To enable efficient device firmware updates, establish a connection using TargetIR.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5°×10.0° | |||
| FOV m@100m | 22×17 | |||
| Magnification | 2.1x~16.8x | |||
| Detection range | 1800m/1950yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1024×768 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48 mm; Diopter ± 4; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G | |||
| Interface | USB Type-C | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, replaceable 18650 battery | |||
| Operating time | 8 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30°C to 50°C / -22°F to +122°F | |||
| Shock | 800G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 575/20.28 | |||
| Size (mm/in) | 206×89×66/8.11×3.50×2.60 | |||
| Standard | Device, Quick-release scope mount, Type-C cable, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, Lens cover, Eye mask, Quick start guide, Warranty card | |||
| Optional | 18650 battery, Dovetail guide, Bluetooth remote control, Laser rangefinder | |||
