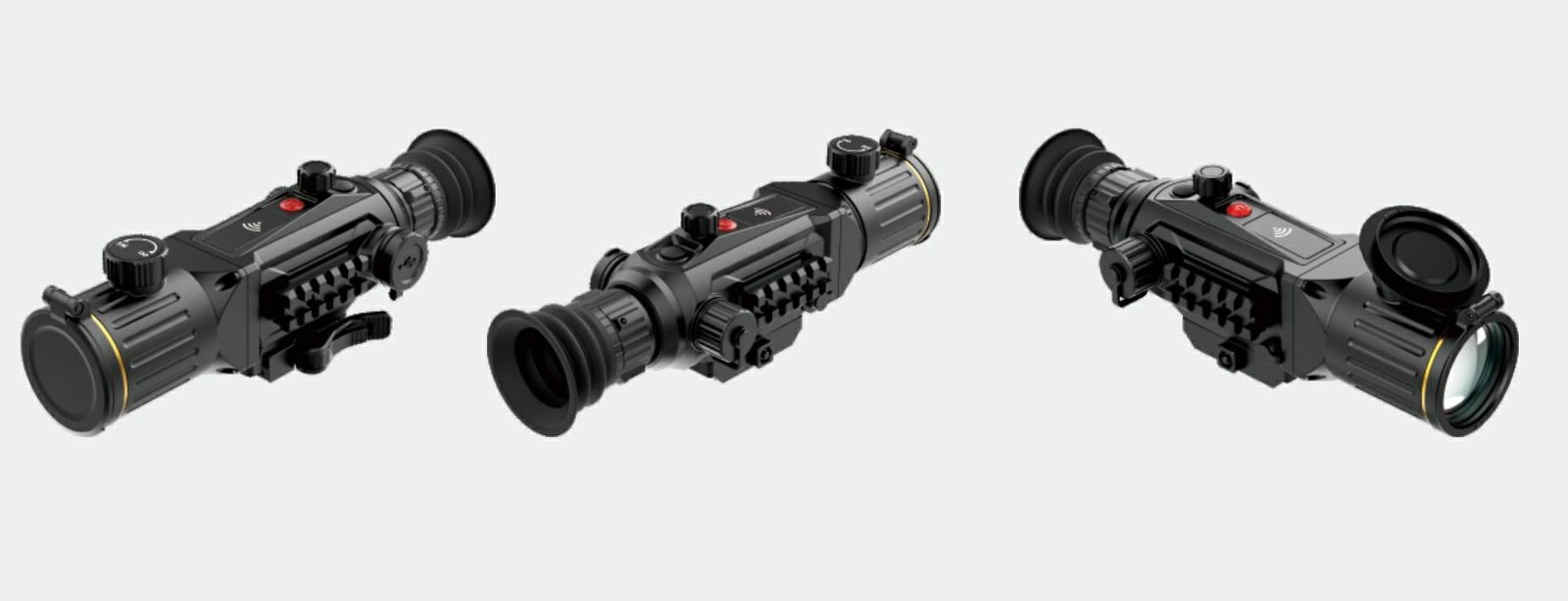

China Moneypro MMPS670 Long Range Multi-Functional Thermal Sight

Key Features

• Real-Time Ballistic Calculation & Distance Measurement
• Integrated laser rangefinder enables automatic ballistic compensation on the fly.
• Advanced Thermal Imaging
• 3rd-gen 12μm / 640×512 (50Hz) IR detector delivers smooth, high-definition visuals.
• Long-Range Detection
• Identifies and recognizes human targets up to 1200 meters.
• Rugged & Ready for Extremes
• Magnesium alloy body with IP67 rating performs reliably in cold, heat, high altitude, jungle, or rainforest conditions.
• One-Scroll Intuitive Control
• Single-wheel interface allows fast operation with no menu memorization.
• Shockproof Durability
• Withstands brutal impacts of 1500g / 0.3ms.
• All-Day Battery Life
• Runs up to 12 hours continuously using dual 18650 batteries.
• Wireless Connectivity
• Wi-Fi transmission supports real-time image sharing and remote device control.
• Media Storage
• Captures photos and videos; stores up to 10,000 images or 12 hours of footage.
• Smart Target Recognition
• Automatically identifies personnel, vehicles, drones, and other objects.
• Multi-Reticle System
• Includes multi-range and mil-dot reticles for precision aiming.
• Modular & Fast-Deploy Design
• Quick field setup and adaptable configuration for mission-ready deployment.

Technical Parameters

IR Parameters

• Resolution: 640 512
• Pixel Pitch: 12 m
• Frame Rate: 50Hz
• OLED: 1024 768

Power Supply

• Battery: 2 18650
• Operating Time: 12h

Physical Characteristics

• Weight: 1050g
• Dimensions: 300mm 120mm 150mm

Interface

• Electrical: Type-C / RS232 / PAL
• Mechanical: Standard Picatinny rail

Optical Parameters

• Focal Length: 70mm F1.0
• FOV: 6.2 5.0
• Diopter Adjustment: -4D ~ +2D
• Exit Pupil Distance: 45mm

Environmental Requirements

• Protection: IP67
• Operating Temperature: -40 C ~ +55 C
• Reliability: 1500g / 0.3ms

Functional Parameters

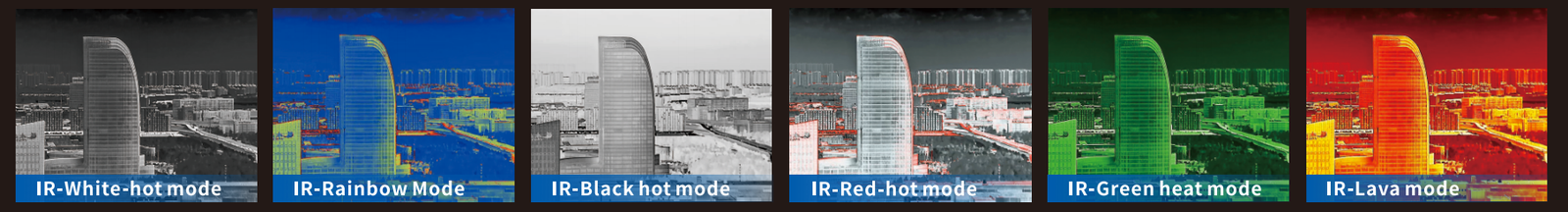

• Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow, Outline
• Digital Zoom: 1C4x
• Digital Compass: Azimuth, Pitch, Roll Angle
• Memory: 128GB
• Intelligent Target Recognition: Personnel, Vehicles, Drones, etc.
• Reticle: Multi-range & Mil-dot
• Custom Reticle: Supports offline customization & upgrade
• Picture-in-Picture: Yes
• Probabilistic Ranging: Yes
• One-Click Zeroing: Yes
• Ballistic Calculation: Yes
• Wi-Fi Transmission: Yes

Laser Module

• Wavelength: 905nm
• Measurement Range: 1.2km (Personnel)
• Accuracy: 2m
• Accuracy Rate: 98%
• Ranging Frequency: 1Hz

Effective Range

• Personnel Recognition: 1.2 km
• Personnel Detection: 3.0 km
• Vehicle Recognition: 2.4 km
• Vehicle Detection: 6.0 km

FAQs

Q1: What is the maximum identification and detection distance of the China Moneypro MPS670?
A1: The device can identify human targets at up to 1.2 km and vehicles at 2.4 km, while detection ranges extend to 3.0 km for personnel and 6.0 km for vehicles.

Q2: How reliable is the laser rangefinder in actual combat scenarios?
A2: Operating at a 905nm wavelength, the laser module delivers 2-meter accuracy with a 98% success rate, even when GPS signals are unavailable.

Q3: Can the China Moneypro MPS670 function non-stop under extreme weather conditions?
A3: Yes. With an IP67 environmental rating, it operates reliably between -40°C and +55°C, performing equally well in arctic cold, desert heat, or humid jungles.

Q4: How does the ballistic solver enhance shooting precision?
A4: The system continuously adjusts firing solutions in real time, enabling highly accurate trajectory predictions and significantly boosting first-shot hit probability.

Q5: What sets the China Moneypro MPS670 apart from conventional thermal sights?
A5: Unlike standard thermal scopes, the MPS670 combines laser ranging, Wi-Fi data transmission, and an advanced ballistic computer in one compact unit, delivering a complete multifunctional combat solution.
