MFC225T Dual-Spectrum Bullet Camera

China Moneypro

The MFC225T Dual-Spectrum Bullet Camera is a new type of dual-spectral IP camera that integrates infrared thermal imaging with HD visible light capabilities. Equipped with a state-of-the-art passive infrared thermal imaging sensor and enhanced by industrial-grade temperature measurement and analysis tools, smoke and fire detection algorithms, and dual-spectral behavior analysis algorithms, it also features an array of alarm linkage functions to truly achieve 24/7 security monitoring and fire warning. It can be widely used for indoor and outdoor scenario monitoring in various intelligent security and fire protection fields such as perimeter protection, charging piles, warehouse equipment rooms, gas stations, and electrical power monitoring.

Feature

12μm Uncooled Infrared Detector

Adopting the latest 12μm uncooled infrared detectors and incorporating cutting-edge infrared imaging algorithms, the system delivers significantly enhanced image quality.

Dual-Spectrum Imaging

Round-the-clock, all-condition surveillance featuring both thermal and visible-light dual-spectrum imaging.

Accurate Temperature Measurement

Measuring range: -20°C to 550°C. Accuracy: ±2°C or 2% of reading.

AI Target Recognition

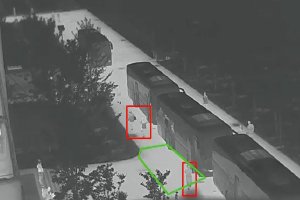

Intelligent analysis of video streams, featuring human and vehicle identification via thermal imaging for line-crossing and perimeter breach alerts.

Intelligent Alarm

Supports linking alarms to multiple triggers, with both sound and light alert capabilities.

Platform Integration

Supports ONVIF, includes SDK and demo for development, and offers NVR and VMS software for application use.

Specification

Thermal Module
Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	256×192
Pixel Pitch	12μm
Focal Length	3.2mm/7mm/10mm
Optical Module
Sensor	5MP 1/2.8″ Progressive Scan CMOS
Resolution	2560×1920
Focal Length	4mm/8mm/12mm
IR distance	30m
Image Function
Bi-Spectrum Image Fusion	Support
Temperature Measurement
Temperature Range	-20℃~+550℃
Temperature Accuracy	±2℃ or ±2%
Temperature Measurement	Support 4 temperature measure ment rules(fullframe, point, line, area)
Smart Function
Fire Detection	Support
VCA	Support Line Crossing&Intrusion detection with AI human/Vehicle recognition
2-Way Audio	Support
Linkage Action	Video/ Snapshot/Email/Alarm output/sound and light alarm
System Interface
Power	DC 12V±25%/POE(802.3af)
Network	1 RJ45 10M / 100M self-adaptive Ethernet port
Audio	1 in/1 out
Alarm	2 in/1 out
Storage	Micro SD memory（maximum 256G）
Reset	Support
Serial Port	1 channel RS485, can support Pelco protocol
General
Work Environment	-40℃~+70℃；<95%RH
Protection	IP66
Power Consumption	≤6W
Dimenstion(mm)	265×99×87
Weight	≤0.95kg
