MQT049 Panoramic Surround View System

China Moneypro

The MQT049 Panoramic Surround View System is an advanced surveillance solution featuring six ultra-wide-angle cameras positioned around the front, back, left, and right sides to capture complete 360-degree coverage. The system uses sophisticated graphics processing to correct and seamlessly stitch images together, creating a unified 3D panoramic display. Equipped with AI-powered threat analysis and human and vehicle detection capabilities, it provides wireless alarm notifications for enhanced security. The system supports 4G network remote management, allowing real-time monitoring from anywhere. With multiple control methods including RS422, CAN, and UDP protocols, plus 100M network video interface, it delivers reliable performance. Weighing just 2kg and measuring 152mm x 170mm x 88.5mm, this compact system operates on 20-32V power supply, making it ideal for area alert applications and comprehensive perimeter security monitoring.

I. Product Introduction

The MQT049 panoramic surround view system is equipped with six ultra-wide-angle cameras mounted on the front, rear, left, and right sides of the product to capture full-coverage images of the surrounding environment. These images are then corrected and seamlessly stitched together by a graphics processing unit to generate a cohesive 3D panoramic view. In addition, the system leverages AI recognition algorithms to perform threat analysis and issue wireless alerts.

I. Photos of the actual product

Figure 1 Product Image

II. Product Functions

a) Supports 360-degree video display capability;
b) Features image correction and seamless stitching functions;
c) Includes human and vehicle detection capabilities;
d) Equipped with 4G network remote management function;
e) Provides threat analysis capability;
f) Integrated with wireless alarm function.

III. Application Scenarios

Area alert.

IV. Main Technical Parameters

model	QT049
System parameters
Number of cameras	6
focal length	5mm
Control method	RS422, CAN, UDP
Video interface	100M network
power supply	20 to 32V
net weight	2Kg

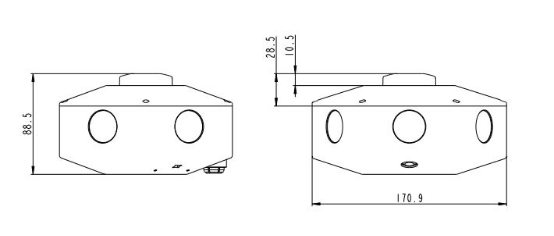

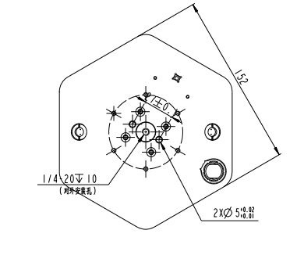

Product Dimensions	152mm x 170mm x 88.5mm
