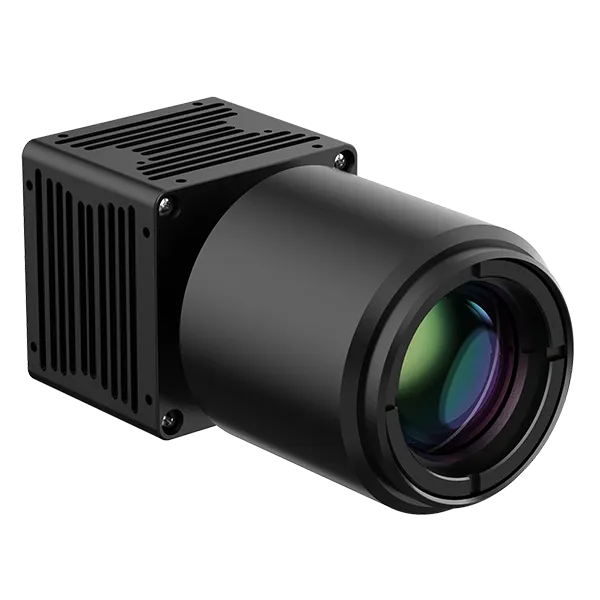

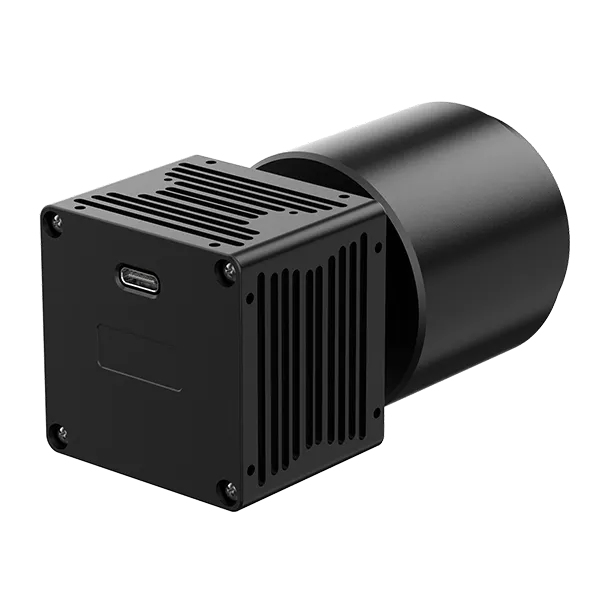

Keen MB615 Uncooled Short-Wave Infrared Module Component

China Moneypro

The Keen B615 short-wave infrared module component adopts a high-sensitivity InGaAs short-wave infrared detector with a pixel size of 15 m and an array size of 640 512.

Combined with excellent image processing algorithms, it can provide more delicate and high-quality images.

The product features low power consumption, low noise, and wide dynamic range.
It supports multiple serial communication and video output interfaces.

It is widely used in security monitoring, machine vision, semiconductor testing, laser detection, and other fields.

Feature

Excellent Performance

Equipped with a self-developed InGaAs shortwave infrared detector with a resolution of 640 512 and a pixel size of 15 m.
Combines miniaturization, low power consumption, and lightweight design.
Built-in TEC temperature control system ensures lower dark current.

All Weather Multi-Scenario Imaging

The product showcases a robust capacity to permeate haze and smoke, enabling long detection distances even in adverse weather conditions.
The InGaAs spectral band covers various commonly used laser wavelengths, making it widely applicable in the laser field.
It features some thermal imaging characteristics, capable of detecting high-temperature radiation targets ( 250 C).

Multiple Selections

It supports multiple video protocols, including BT.656, BT.1120, and LVDS.
Expandable USB 3.0 and Cameralink user interfaces.
It provides an SDK that is simple and easy to use, supporting secondary development.

Specification

Performance Indicators
Detector Type	InGaAs Short-Wave Infrared Detector
Resolution	640 512
Pixel Pitch	15 m
Detector Frame Rate	25/50Hz
Spectral Band	0.9 1.7 m
Quantum Efficiency	70%
Operability	99.8%
Average Pixel Dark Current	60fA (@-0.2V image element bias@25 )
Exposure Time Range	0.1~30ms
Integration type	Snapshot global shutter
Cooling Mode	TEC 1
Depth of Output Data	8bit/10bit/14bit
Image Adjustment
Palette	Support
Digital Zoom	1.0~2.0 continuous zoom (step size: 0.1)
Image Processing	Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement
Mirroring	Horizontal/Vertical/Diagonal
Cross Cursor	Display/Blank/Move
Power and Interface
Power Supply Range	5-24V DC (Recommended voltage of 12V DC)
Typical Power Consumption at 25 C	1.5w
Digital Video	Cameralink/USB 3.0
Communication Interface	RS-232/RS-422/UART (3.3V)
Optical Interface	C-Mount
Physical Characteristics
Weight	130 3g
Size	48 48 48.5mm
Environment Adaptability
Operating Temperature	-40+50
Storage Temperature	-45+85
Humidity	5-95%, non-condensing
Vibration	6.06g, random vibration, 3 axial
Shock	80g, 4ms, final peak sawtooth wave, three axes and six directions
Product Certification	RoSH2.0
