Key Features

• Enhanced Multi-Scenario Adaptability
• Integrates infrared, visible light, low-light imaging, laser rangefinding, and laser designation for versatile operational use.
• Advanced Positioning & Connectivity
• Features an embedded BD + GPS + GLONASS module, electronic compass, and Wi-Fi to enable real-time geolocation and seamless data transmission.
• Intelligent Fusion Modes
• Supports infrared-visible and infrared-low-light image fusion to improve target recognition under complex conditions.
• Day-and-Night Long-Range Reconnaissance
• Delivers persistent surveillance capability across both daytime and nighttime, reliably adapting to diverse environments.
• High-Precision Laser Ranging
• Incorporates a precision laser rangefinder for fast, accurate distance measurement.
• Target Geolocation & Operator Tracking
• Captures the operator’s local coordinates while precisely calculating the target’s geographic location.
• Tactical Azimuth Measurement
• Provides bearing data on targets to support comprehensive intelligence gathering for tactical operations.
• High-Definition Evidence Capture
• Records HD photos and videos to ensure clear documentation and effective post-mission analysis.
• Rapid Data Transmission
• Enables instant mission report sharing via high-speed Wi-Fi/Bluetooth, supporting timely decision-making.
• Real-Time Battlefield Intelligence
• Enhances combat personnel effectiveness by delivering live situational awareness and actionable field data.

Technical Parameters

Optical Specifications

• Thermal Camera

• Detector Type: Uncooled IR FPA
• Resolution:1280 1024 @12 m
• FOV: 12 9
  • Day Camera
• Detector: Color HD CMOS
• Resolution:1/1.8 , 4MP
• FOV: 2.1 1.7
  • Low-Light Camera
• Detector: HD CMOS
• Resolution:1280 960 @12 m
• FOV: 17 13

Laser Rangefinder

• Wavelength:535 m (Eye-safe)
• Range:50m C 9000m
• Precision: 2m

Positioning & Orientation

• Positioning Mode:BD + GPS + GLONASS
• DMC Accuracy: 0.5
• Self-Position Precision:CEP 5m, PE 5m
• Target Locating Precision:CEP 10m (target @ 2km)

Laser Designation

• Wavelength:830nm / 660nm
• Performance Range:>600m (Low), >2000m (High)

Image Display

• Infrared: Contrast & brightness adjustable; switch betweenwhite hotandblack hot
• Visible Light: Supportsdefog + brightness/contrast adjustment
• Low Light: Brightness & contrast adjustable

Magnification & Frame Rate

• Magnification:0 C 4.0 continuous optical zoom & E zoom
• Frame Rate:25Hz

Physical & Power

• Weight: 2.4kg (without battery)
• Battery:6 Military 18650 Rechargeable Batteries
• Operation Time: 10hrs(ambient temperature)
• Interface:USB / PAL / RS232 / HDMI / WiFi / Bluetooth / External power supply
• Protection:IP67
• Operating Temperature:-40 C ~ +55 C
• Storage Temperature:-55 C ~ +70 C

Effective Range

• Infrared (IR)

• Personnel Recognition:5km
• Vehicle Recognition:2km
• Personnel Detection:3km
• Vehicle Detection:6km
  • Visible Light
• Personnel Recognition:4km
• Vehicle Recognition:6km
• Personnel Detection:8km
• Vehicle Detection:12km
  • Glimmer
• Personnel Recognition:4km
• Vehicle Recognition:8km
• Personnel Detection:8km
• Vehicle Detection:6km

5 Professional FAQs

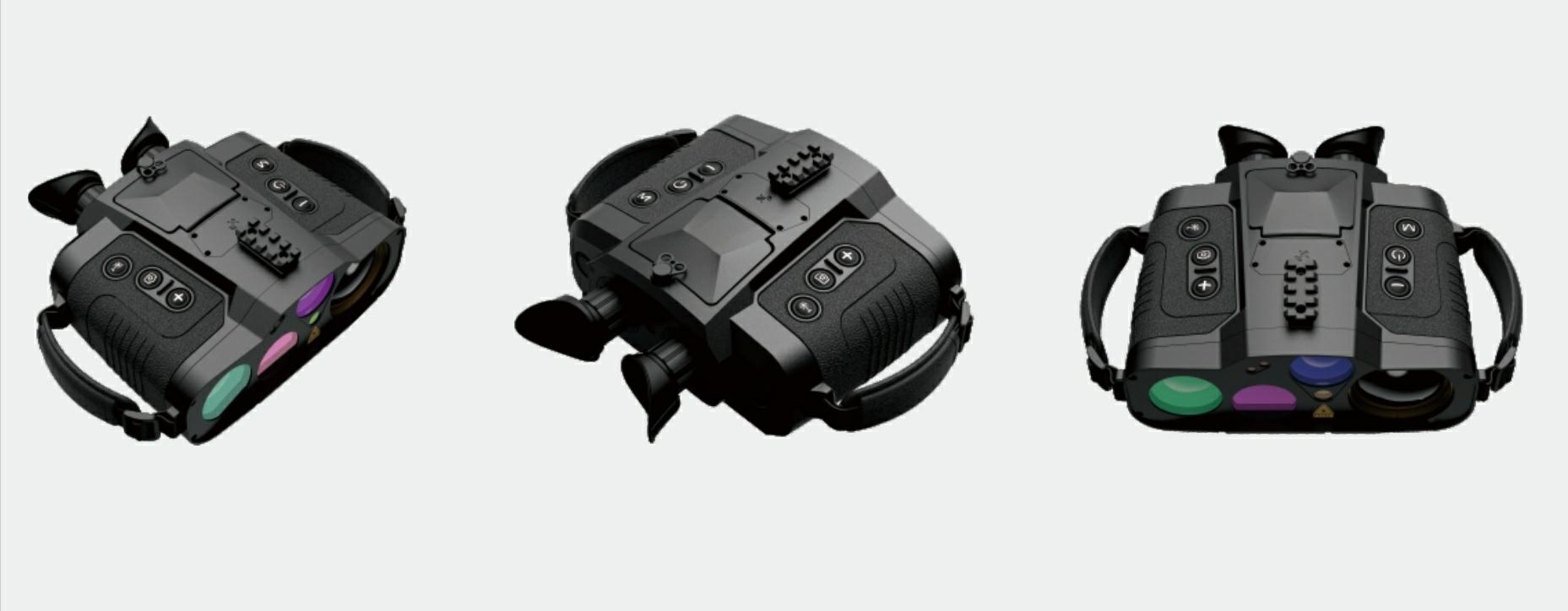

Q1: What gives the China Moneypro MY5222 an edge over standard thermal binoculars?
A1: Unlike conventional thermal binoculars, the China Moneypro MY5222 combines thermal, daylight, and low-light imaging with integrated laser targeting and geolocation, delivering superior adaptability across diverse environments and real-time tactical intelligence.

Q2: How reliable is its laser rangefinding and geolocation performance?
A2: The laser rangefinder delivers precision within ±2 meters at distances up to 9 km, while geolocation achieves a CEP of 10 meters at 2 km, making it a trustworthy tool for mission-critical operations.

Q3: Is the China Moneypro MY5222 suitable for harsh climates like deserts or the Arctic?
A3: Absolutely. With an IP67 dust/water resistance rating, an operational temperature range from -40°C to +55°C, and storage tolerance from -55°C to +70°C, it is built to endure extreme conditions—whether sandy, humid, or freezing.

Q4: How does the MY5222 support data sharing for team coordination?
A4: The device offers multiple connectivity options including Wi-Fi, Bluetooth, USB, RS232, HDMI, and PAL video output, enabling seamless and rapid integration into command-and-control networks for coordinated operations.

Q5: What is the battery life of the China Moneypro MY5222 on a full charge?
A5: Powered by six military-grade 18650 rechargeable batteries, the MY5222 provides up to 10 hours of continuous operation, ensuring long-lasting performance during extended field missions.
