China Moneypro MMPS630 Miniature Dual-Purpose Thermal Sight
China Moneypro

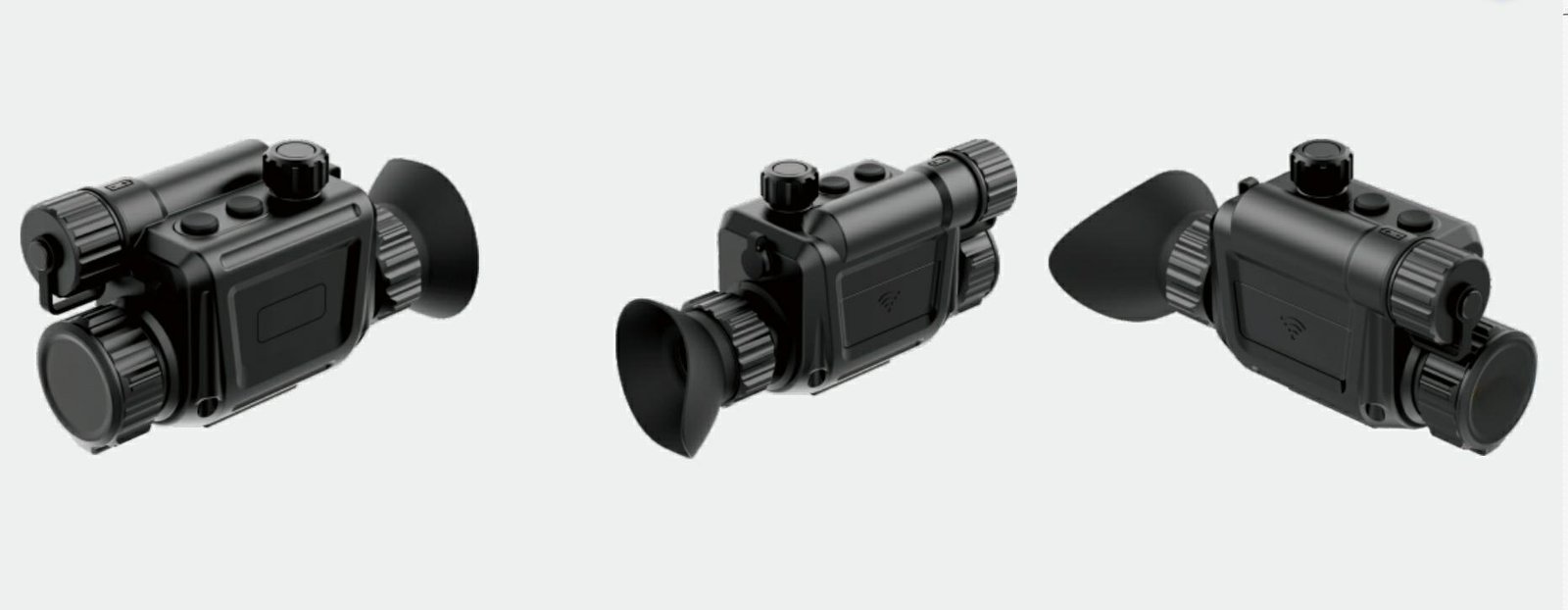

China Moneypro MMPS630 is a miniature dual-purpose thermal sight designed to operate in complete darkness, smoke, and dust. It can be used as a standalone weapon sight or paired with a day optic to enhance aiming accuracy. An intuitive scroll-wheel UI enables quick switching among handheld, gunsight co-work, and helmet modes, significantly improving the effectiveness of individual operators in all-weather, all-terrain missions.
Rugged, lightweight, and highly adaptable, China Moneypro MMPS630 is suitable for military, law-enforcement, counter-terrorism, and search-and-rescue applications, offering advanced tactical performance backed by reliable engineering.
Main Features
- Multi-mode adaptability: handheld / gunsight / co-work / helmet
- Intelligent target recognition: auto-identifies personnel, vehicles, drones
- Lightweight & portable: 280 g magnesium-alloy shell; IP67 protection
- Ultra-long endurance: 12 h continuous operation (18650 battery)
- One-click zeroing & ballistic calculation for higher first-round hit probability
- Image/video capture: up to 10,000 images or 12 h video storage
- Wireless control: Wi-Fi image transmission + remote command
- Multi-reticle & Picture-in-Picture display for tactical flexibility
Technical Parameters
IR Parameters
- Resolution: 640 512
- Pixel Pitch: 12 m
- Frame Rate: 50 Hz
- OLED: 1024 768
Optical Parameters
- Focal Length: 26.7 mm F1.0
- Field of View: 16.3 13.1
- Magnification: 1
- Diopter Adjustment: -5D ~ +3D
- Exit Pupil Distance: 20 mm / 40 mm
Power Supply
- Battery: 18650 1
- Operating Time: 12 h
Physical Characteristics
- Weight: 280 g
- Dimensions: 120 50.5 75 mm
Environmental
- Protection Rating: IP67
- Operating Temperature: -40 C ~ +55 C
- Reliability: 1000 G / 0.3 ms
Interfaces
- Electrical: Type-C / RS232 / PAL
- Mechanical: L4G24 (Picatinny compatible)
Functional Parameters
- Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow
- Digital Zoom: 1C4
- Digital Compass: Azimuth, Pitch, Roll
- Memory: 128 GB
- Intelligent Target Recognition: Personnel, vehicles, drones
- Picture-in-Picture: Yes
- Probabilistic Ranging: Yes
- One-Click Zeroing: Yes
- Ballistic Calculation: Yes
- Wi-Fi: Yes
- Flip Protection: Yes
Effective Range
- Personnel: Detection up to 1 km, recognition 0.4C0.8 km
- Vehicles: Detection up to 2 km, recognition 1 km
FAQ
Q1. What makes China Moneypro MPS630 reliable in extreme environments
A1. China Moneypro MPS630 uses a magnesium-alloy housing with IP67 protection, operates from -40 C to +55 C, and is shock-qualified to 1000 G / 0.3 ms, ensuring stable performance in harsh conditions.
Q2. How does intelligent target recognition help operators
A2. The onboard algorithm auto-identifies personnel, vehicles, and drones, reducing operator workload and improving response speed.
Q3. Can China Moneypro MPS630 be mounted on different platforms
A3. Yes, with L4G24/Picatinny compatibility, it supports rifles, machine guns, and helmet mounts.
Q4. Is the power system sufficient for long missions
A4. A single 18650 battery powers 12 h continuous operation, minimizing downtime during extended tasks.
Q5. What do one-click zeroing and ballistic calculation provide
A5. Faster sight alignment and real-time trajectory compensation, ensuring higher accuracy in dynamic scenarios.
