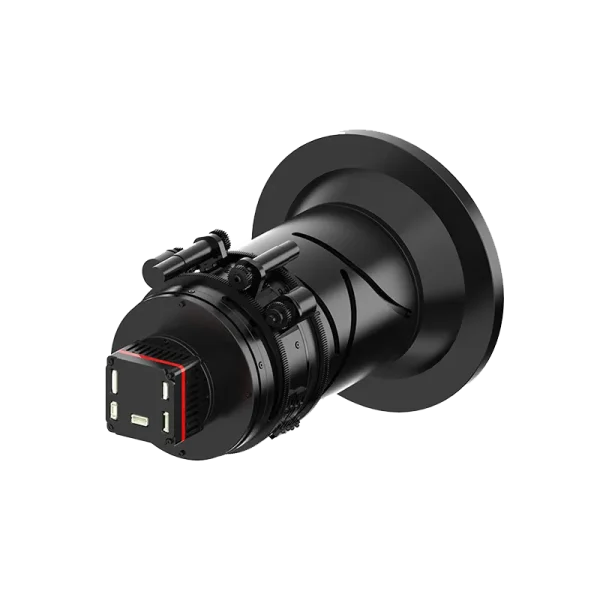

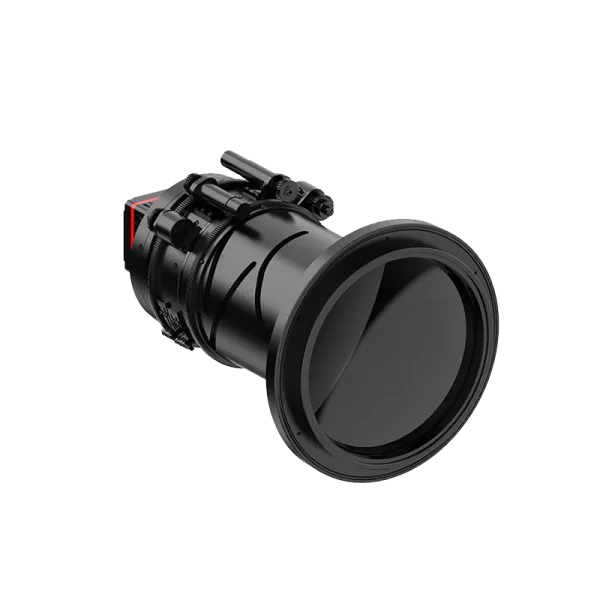

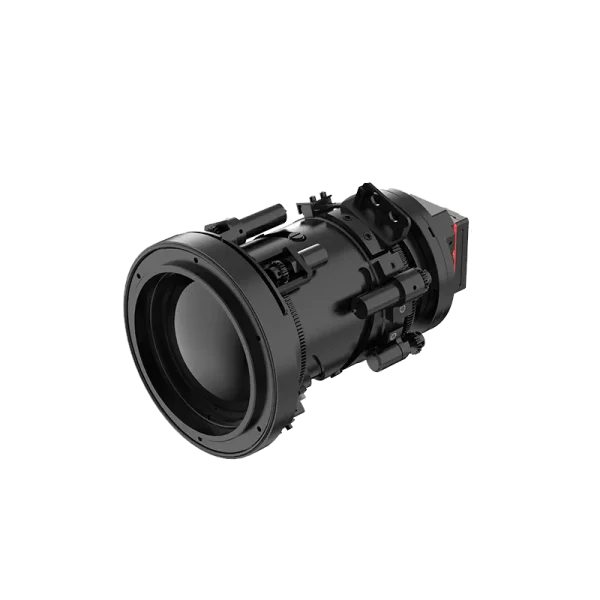

Turing MF1280 Uncooled Infrared Module

China Moneypro

The Turing MF1280 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and technology of lens control, bringing a new experience for long-distance monitoring. The product can be widely used in application scenarios such as perimeter security, high-altitude observation, forest fire prevention, water area monitoring, and industrial temperature measurement.

Feature

Powerful Detector Performance

It has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and technology of lens control, bringing a new experience for remote monitoring.

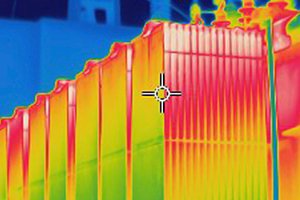

The product can be widely used in application scenarios such as perimeter security, high-altitude observation, forest fire prevention, water area monitoring, and industrial temperature measurement.

Upgraded Image Algorithm

The module has upgraded the image algorithm to the new generation and optimized it for special scenarios, such as forests, sea, sky, rainy, and foggy weather, providing customers with clear and sharp infrared images.

Providing Optimized Lens

It supports athermalized prime lenses, prime electric focusing lenses, and continuous zoom lenses.
It can realize electric focus, continuous zoom, automatic focus, and defocusingcompensation functions, etc.

Multiple Network Interfaces

It provides Ethernet, LVCMOS, BT.1120, and other video output interface options.
Expandable SDI, USB, Cameralink, and HDMI interfaces
It provides an SDK, which is simple and easy to use, shortening the development cycle, improving efficiency, and reducing secondary development costs

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	1280 × 1024
	Detector Frame Rate	30 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤50 mK @ 25℃, F#1.0
Image Adjustment	Palette	Support (20 types)
	Digital Zoom	1.0~4.0× continuous zoom (step size: 0.1)
	Brightness/Contrast Adjustment	Manual / Auto 0 / Auto 1
	Image Processing	Non-uniformity correction / Digital filter noise reduction / Digital detail enhancement
	Mirroring	Horizontal / Vertical / Diagonal
Network Function	Network Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS, etc.
	Platform Access	ONVIF, GB28181, SDK
	Simultaneous Previewed Videos	Up to 20 channels
	User Management	Up to 20 users, 3 levels: administrator, operator, user
	Browser	Supports IE8+ and multiple languages
Intelligent Functions	Fire Point Detection	Supported
	Intelligent Video	Supported
	Intelligent Alarm	Abnormality detection for network cable failure, IP conflict, full memory, memory error, illegal access, and linkage alarm
	Intelligent Detection	Supports Tripwire and regional intrusion detection, and other intelligent video analysis functions
	Alarm Linkage	Video recording / Image capture / Email / Linked PTZ / Alarm output
Lens	Lens Type	Athermalized / Motorized fixed-focus / Continuous zoom
	Focus Mode	Manual / Automatic
	Electric Focusing	Supported
	Electric Zooming	Supported
Digital	Power Supply Range	5-24V DC (Recommended: 12V DC)
	Typical Power Consumption @25°C	<2.6 W
	Digital Video	LVCMOS / LVDS / BT.1120 / SDI
	Communication Interface	RS-232 / RS-485
	Weight	168 ±10 g (without lens)
	Size	55 × 55 mm
Network Type	Power Supply Range	12V DC ±10%
	Typical Power Consumption @25°C	<3.8 W
	Communication Interface	One RJ45 10M/100M adaptive Ethernet port, one RS-485
	Alarm Interface	One input, one output
	Audio Interface	One input, one output
	Weight	220 ±10 g (without lens)
	Size	55 × 55 mm
Interface	Analog Video	1-channel PAL system
Environment Adaptability	Operating Temperature	-40℃ ~ +60℃
	Storage Temperature	-45℃ ~ +85℃
	Humidity	5~95%, non-condensing
	Product Certification	RoHS2.0
