MTU650M 3.0 Thermal Imaging Scope
The MTU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, long-range solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.
640×512@12μmIR Resolution
18mKNETD
1920×1080@2.9μmDigital Resolution
2600mDetection range

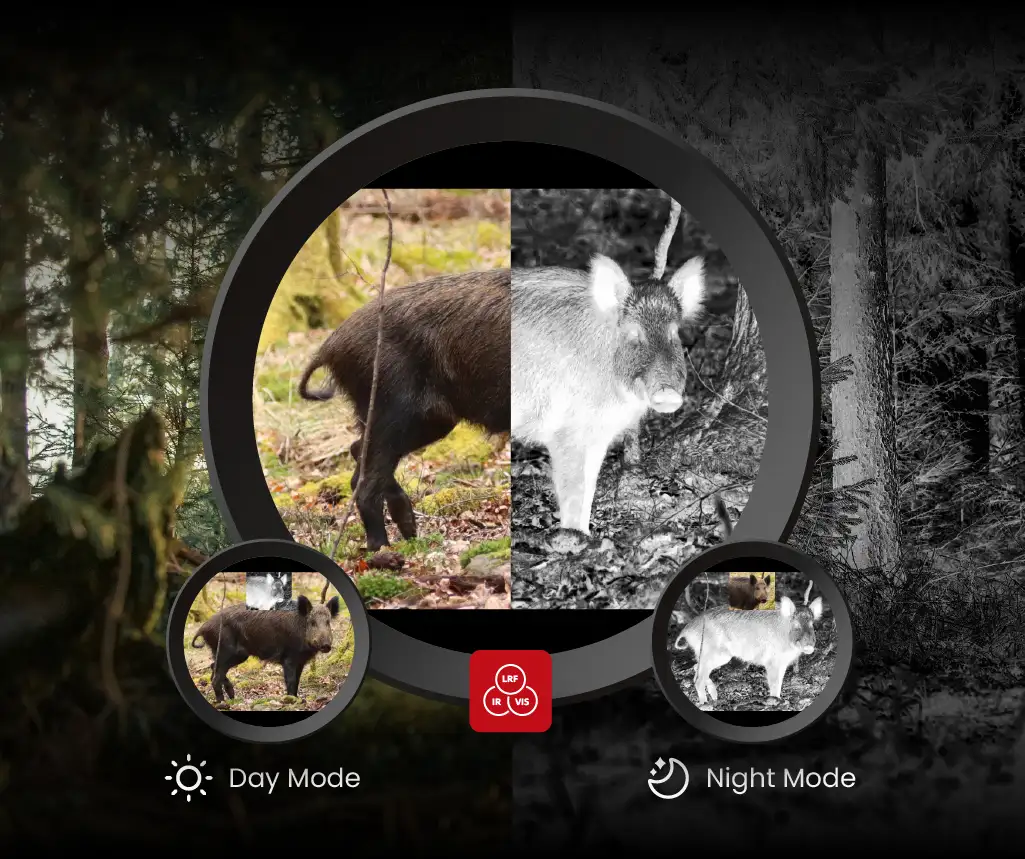

Thermal & Optical All-Day. All-Weather
The TU MUO 3.0 Series combines thermal imaging and visible light technology, offering day, night, and low-light modes tailored for any condition. Whether you’re hunting in the woods, through thick brush, or in rain or snow, this device delivers clear vision around the clock.

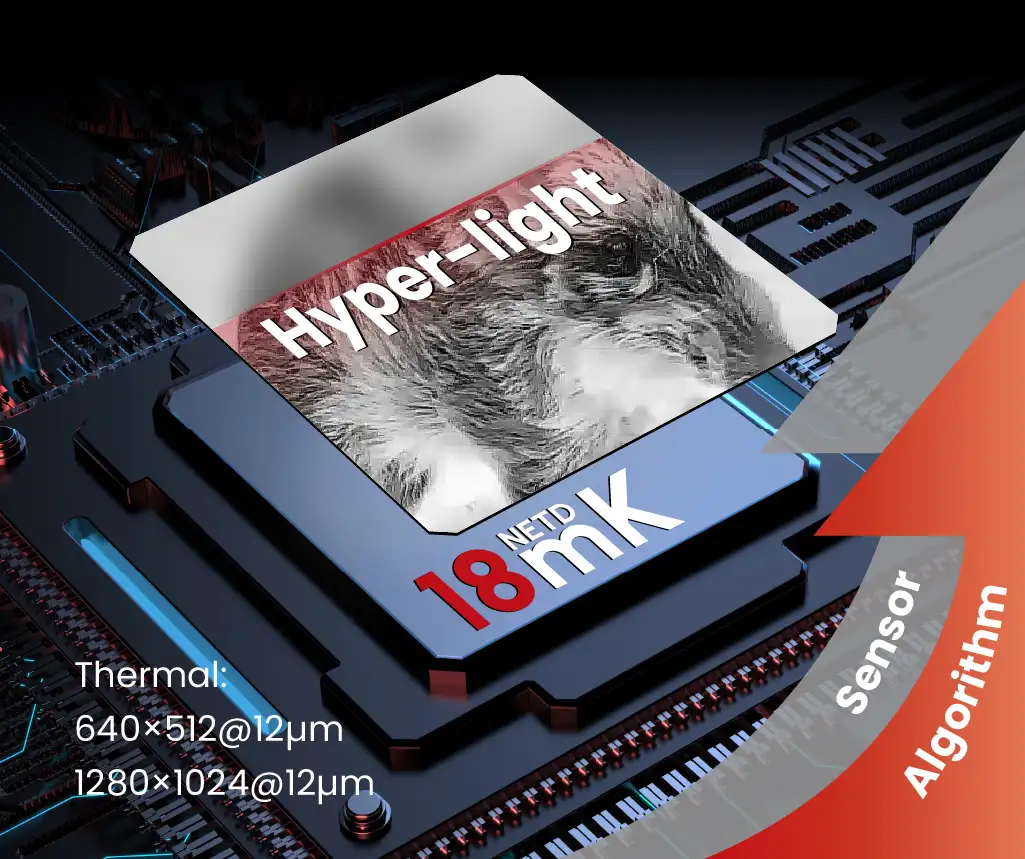

Hyper-Light Algorithm Ultra-Premium Visuals
Powered by next-gen sensors and the Hyper-light algorithm, this product elevates image quality on every level—delivering sharper clarity, less noise, optimized contrast, and finely detailed resolution.

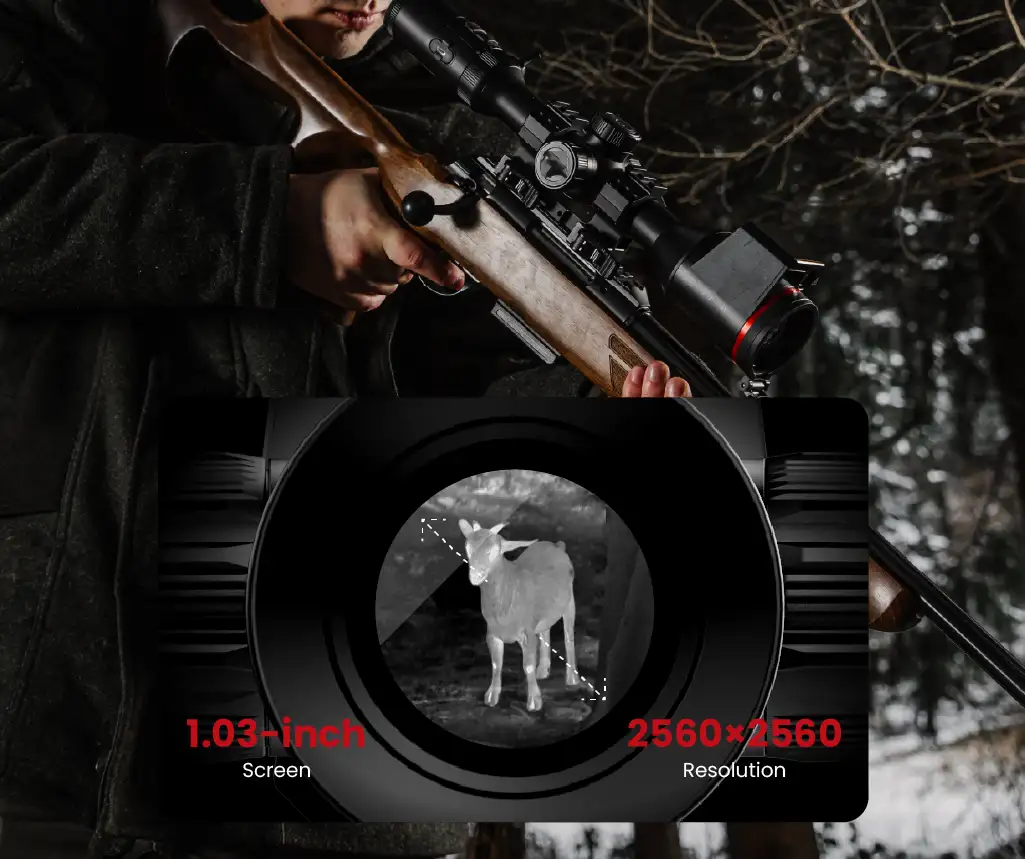

QHD AMOLED Display Comfortable Viewing
The TU MUO 3.0 Series features a sharp 1.03-inch AMOLED display with 2560×2560 resolution, along with 60mm eye relief and AI-enhanced imaging. Together, these deliver crisp, vivid visuals while minimizing eye strain for lasting comfort—even during extended use.

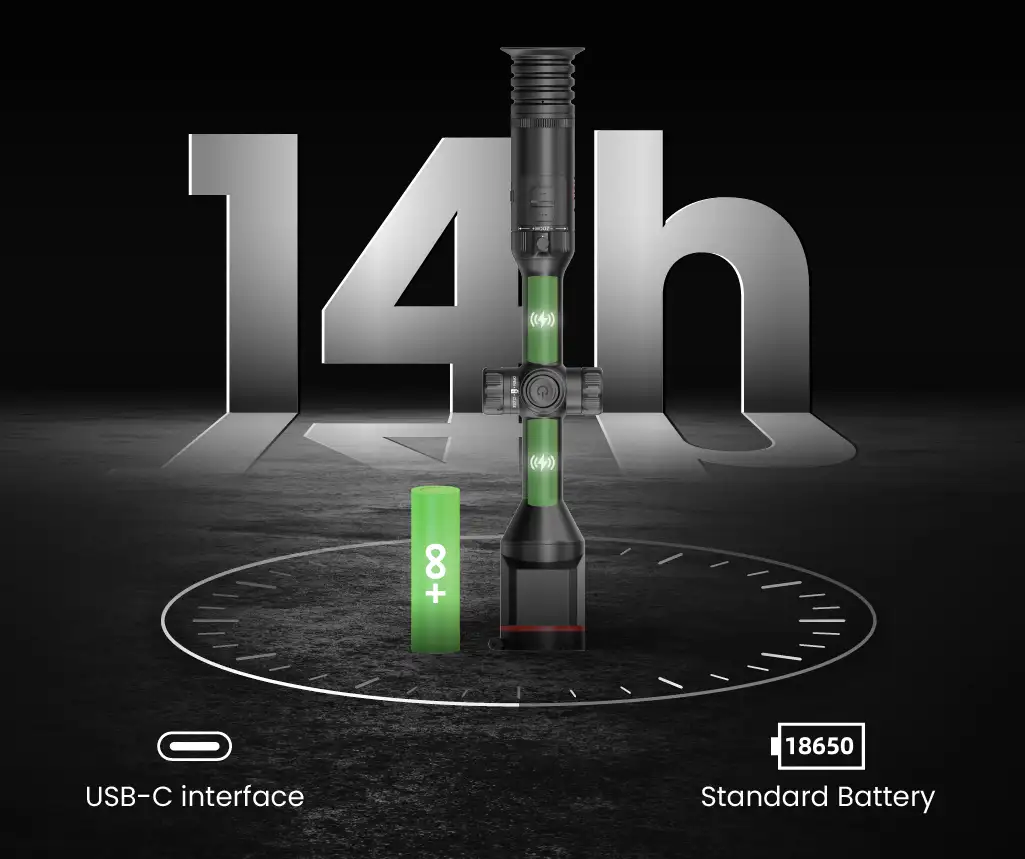

Dual Battery Design Worry-Free Power
With two built-in batteries and an external battery system, you get reliable backup power for hunting sessions lasting up to 14 hours. Plus, the standard 18650 batteries are replaceable and support hot swapping, so you can keep going with virtually unlimited runtime.

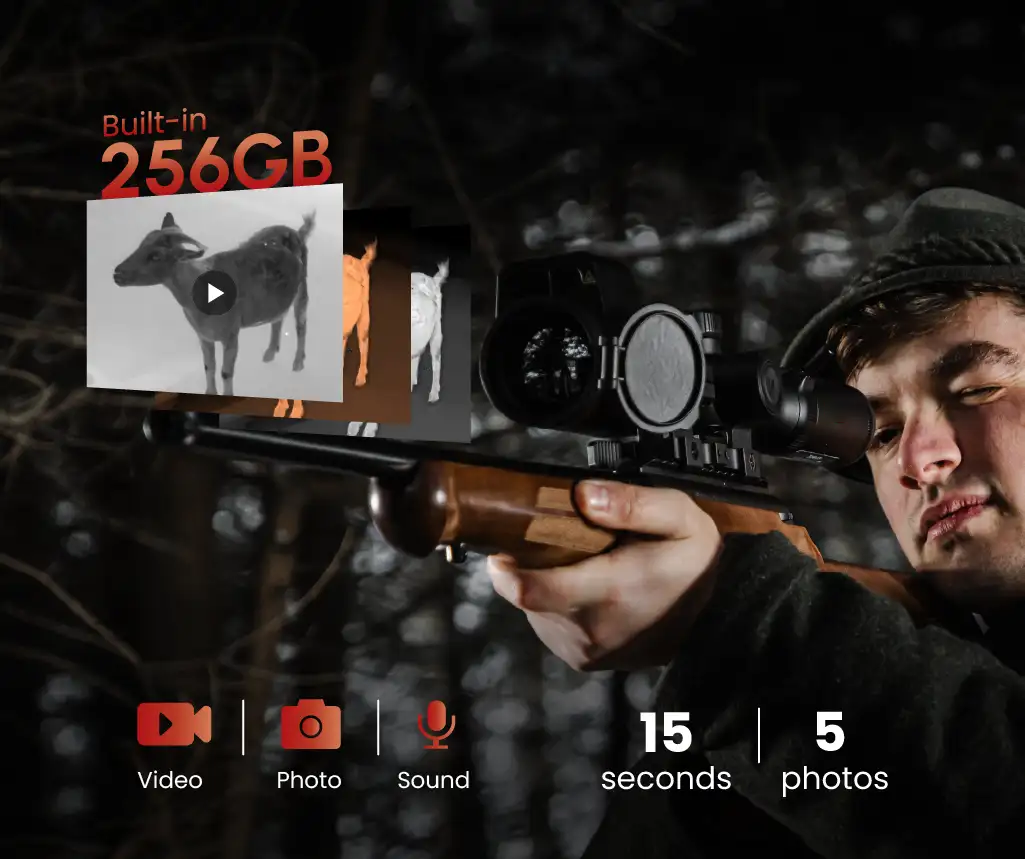

Smart Recording Best Moments Captured
The recoil-activated recording automatically captures a 15-second video and 5 photos with every shot, and lets you instantly replay the action. With a massive 256GB of built-in storage, you’ll never miss a single breathtaking moment.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS | |||
| Resolution | Thermal: 640×512@12μm (NETD 18mK); Digital: 1920×1080@2.9μm | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | Thermal: 50mm, F1.0; Digital: 35mm, F4.0 | |||
| Field of view | Thermal: 8.8°×7.0°; Digital: 6.4°×5.1° | |||
| FOV m@100m | Thermal: 15×12; Digital: 11×9 | |||
| Magnification | Thermal: 3.7x~29.6x; Digital: 3.7x~29.6x | |||
| Detection range | Thermal: 2600m/2800yd; Digital: 500m/550yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 1.03” AMOLED 2560×2560 | |||
| Color palettes | IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light | |||
| Eyepiece | Eye relief: 60mm; Diopter -5 to +5; Zoom: 7.8x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Charge/USB2.0) | |||
| Tube diameter | Standard 30 mm | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 256GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 18650 ×2 Battery (Built-in) and 18650 ×2 Battery (External) | |||
| Operating time | 14 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J/1200G | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 1013/35.73 | |||
| Size (mm/in) | 457×90×84/17.99×3.54×3.30 | |||
| Standard | Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, IR Illuminator, IR Illuminator Bracket, 18650 Battery ×2, Battery Charger, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, 18650 Battery | |||
