China Moneypro
MTL450 Multispectral Fusion Thermal Monocular
China Moneypro
The TL Series is the first multispectral fusion thermal monocular of Guide Outdoor whose all-in-one design meets the needs of all-day and all-weather observation. Equipped with a 12 m high-end thermal sensor, 1920 1080 CMOS sensor and 1920 1080 AMOLED display, the TL Series offers significantly sharp and richly contrasted images with an integrated laser rangefinder with up to 600m accurate ranging. Integrated with a built-in GPS, laser rangefinder, and gyroscope, target latitude and longitude, target distance, and device angle information can be obtained for quick aiming.
Day & Night UseThermal+Digital
400 300@12 mIR Resolution
1920 1080 AMOLED Display
600mLaser Ranging
All-in-one Design for All-day and All-weather Observation

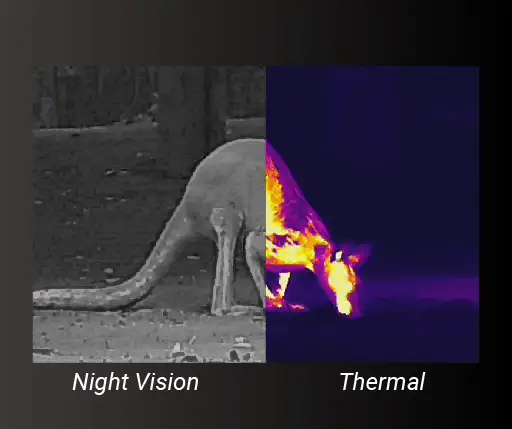

With a combined thermal and night vision function, suitable for both day and night use, enabling fast searching and accurate target identification.
Integrated HD Thermal Detector and Digital Sensor
Superior thermal imaging and night vision provide crisp, well-defined visuals, enabling better identification of animals, their physical features, and fine details like twigs, foliage, grass, and terrain—whether day or night.
1920 1080 AMOLED Display
High-resolution 0.39-inch AMOLED (1920×1080) enables reduced power usage, expanded viewing angles, and enhanced color richness, delivering finer observation details.
Built-in Precision Laser Rangefinder
The built-in high-precision laser ranging module delivers accurate distance measurements up to 600 meters, providing reliable target distance data with no need for calibration.

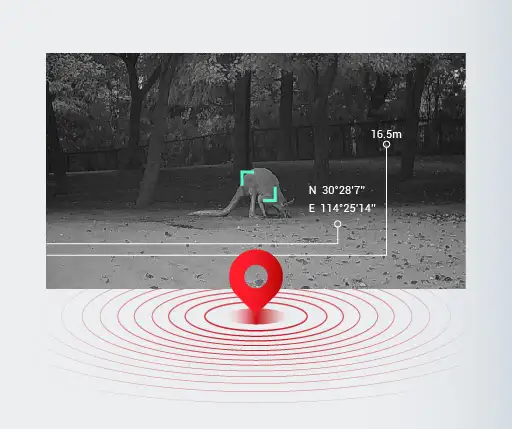

Built-in GPS for Target Positioning
GPS technology provides precise latitude and longitude coordinates, which are crucial for hunters to navigate safely, map terrain, track game, and access useful environmental data. When combined with a built-in laser rangefinder and gyroscope, the system can also measure target distance and device angle, enabling faster and more accurate aiming.

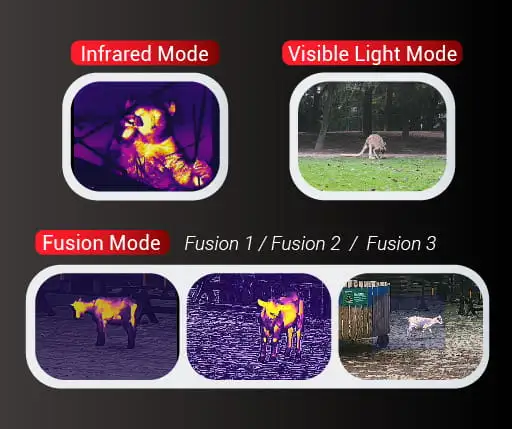

Combined Multispectral Viewing Modes
You can operate the TL Series across multiple viewing modes. These include a standard thermal monocular with five color palette options, a high-resolution optical camera for both daylight and night vision, and the exclusive Fusion mode. Fusion mode overlays optical image details onto the thermal view, enhancing thermal performance significantly and providing an unmatched combination of detection capability and image clarity.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14 m; Digital: CMOS | |||
| Resolution | Thermal: 400 300@12 m; Digital: 1920 1080@4 m | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | Thermal: 50mm, F1.2; Digital: 22mm, F1.5 | |||
| Field of view | 5.5 4.1 | |||
| FOV m@100m | 10 7 | |||
| Magnification | 3.3x~13.2x | |||
| Detection range | 2600m/2800yd | |||
