MTE211MHandheld Mini Thermal Imaging Monocular
China Moneypro
TE Mini Series handheld thermal imaging monocular, your pocket-sized night vision companion, is equipped with a 256 192 infrared detector and a 10mm lens, providing a detection range of up to 500 meters. The integrated 1.43 AMOLED full-color touchscreen allows you to view infrared images clearly without pressing your eyes against the eyepiece, reducing eye fatigue during extended use. With just a 10-minute quick charge, it offers up to 1 hour of continuous use, making it the ideal companion by your side.
256 192@12 mResolution
Only 205gUltra-Lightweight
One-button controlSmooth Operation
IP67Encapsulation
High-sensitivity detector, NETD down to 20mK
The TD Gen3 Series is equipped with a 12 μm infrared detector and supports resolutions of 600×512 and 400×300. With a choice of multiple focal lengths, it produces remarkably clear images even in total darkness.
Ultimate lightweight Effortlessly portable
Weighing just around 200 grams, the TE Mini boasts an ultra-compact form factor that fits easily in your pocket. It’s smaller than a typical mobile phone and slimmer than a wristwatch, ensuring a comfortable hold and outstanding portability.

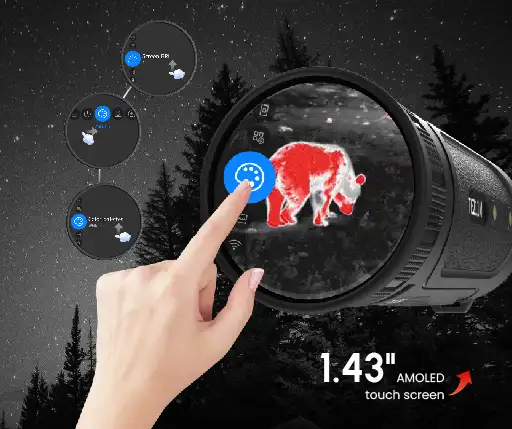

Game-changing Large touch screen
The TE Mini is equipped with a cutting-edge large touchscreen, offering both crystal-clear visuals and intuitive control. With just a few taps, users can effortlessly browse through the menu and choose the desired functions.

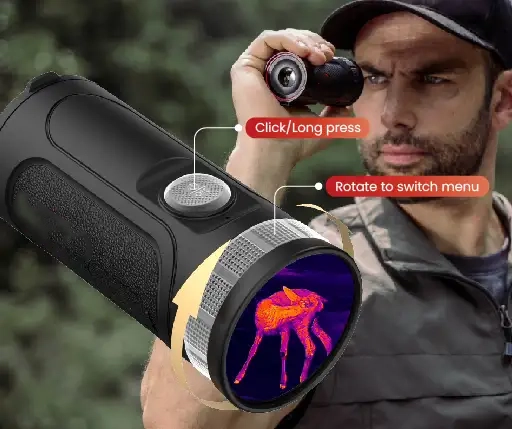

Smooth operation Simplified interaction
Leveraging years of field-tested expertise, the TE Mini features a remarkably simplified control setup. With only a single button and one ring, navigating the menu and operating different functions becomes effortless.
Extended battery 20W quick charge
The TE Mini comes with a built-in rechargeable battery that delivers up to 6 hours of operation. Equipped with an efficient 20W fast charging capability, a mere 10-minute charge gives you 1 hour of uninterrupted usage, keeping you powered with peace of mind.

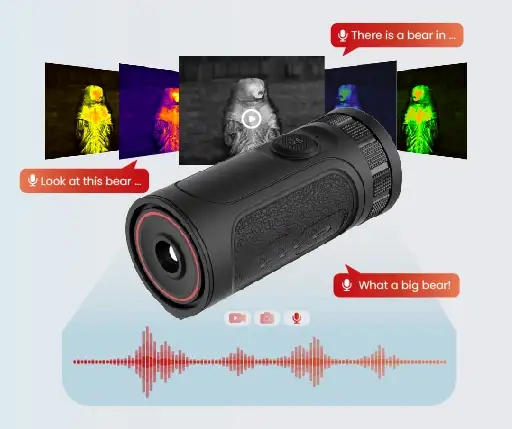

Audio-visual sync
With 16GB of onboard storage, you can easily capture and share thrilling wildlife moments at any time—using photos, videos, or audio recordings.
Dual-band WiFi connection
After the WiFi upgrade to dual-band, connectivity is now more reliable and robust. The TE Mini delivers quicker data transmission and extended range—complete upgrade package downloads in just 10 seconds, with a maximum transmission distance of 26.5 meters.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 256 192@12 m | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 10mm, F1.0 | |||
| Field of view | 13.1 13.1 | |||
| FOV m@100m | 23 23 | |||
| Magnification | 0.4x~1.6x | |||
| Detection range | 500m/550yd | |||
| Focus | Focus-free | |||
