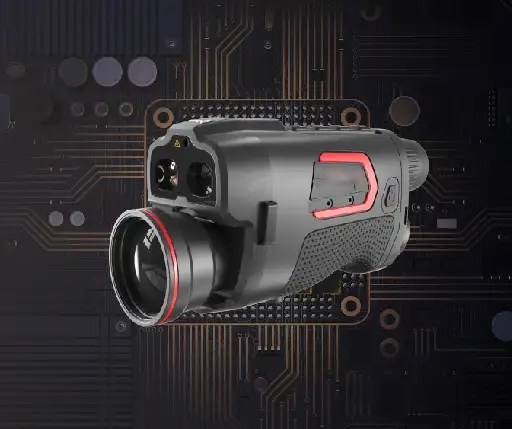

MTL430 Multispectral Fusion Thermal Monocular
China Moneypro
The TL Series is the first multispectral fusion thermal monocular of Guide Outdoor whose all-in-one design meets the needs of all-day and all-weather observation. Equipped with a 12 m high-end thermal sensor, 1920 1080 CMOS sensor and 1920 1080 AMOLED display, the TL Series offers significantly sharp and richly contrasted images with an integrated laser rangefinder with up to 600m accurate ranging. Integrated with a built-in GPS, laser rangefinder, and gyroscope, target latitude and longitude, target distance, and device angle information can be obtained for quick aiming.
Day & Night UseThermal+Digital
400 300@12 mIR Resolution
1920 1080 AMOLED Display
600mLaser Ranging
All-in-one Design for All-day and All-weather Observation
With both thermal and night vision capabilities, this system supports rapid search and accurate target identification, effective around the clock — day or night.

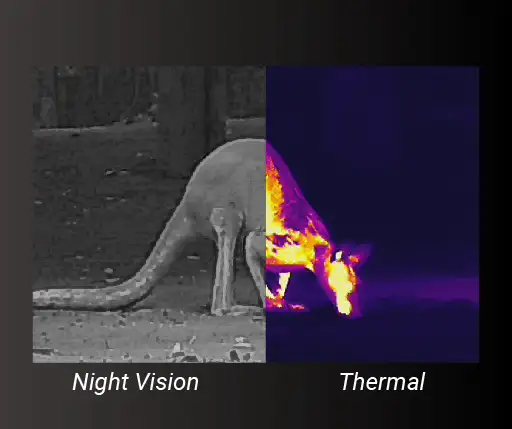

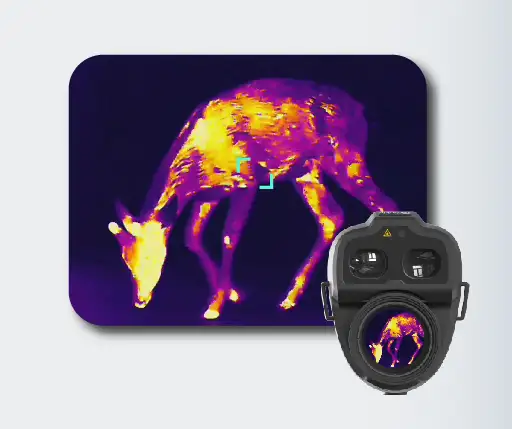

Integrated HD Thermal Detector and Digital Sensor
Superior thermal imaging and night vision provide sharp contrast and clarity, enabling reliable identification of animals, their anatomical features, and fine details like twigs, foliage, grass, and terrain—whether in daylight or complete darkness.
1920 1080 AMOLED Display
High-resolution 0.39-inch 1920×1080 AMOLED delivers lower power usage, broader viewing angles, and more vivid colors, enabling improved detail observation.
Built-in Precision Laser Rangefinder
The built-in high-precision laser ranging module delivers accurate distance measurement up to 600 meters, providing precise target distance data without the need for calibration.
Built-in GPS for Target Positioning
GPS technology provides hunters with precise latitude and longitude coordinates, ensuring reliable positioning for navigation, safety, terrain mapping, and wildlife tracking, while also delivering key environmental data. When combined with a built-in laser rangefinder and gyroscope, the system captures both the distance to the target and the device’s angle, enabling faster and more accurate aiming.

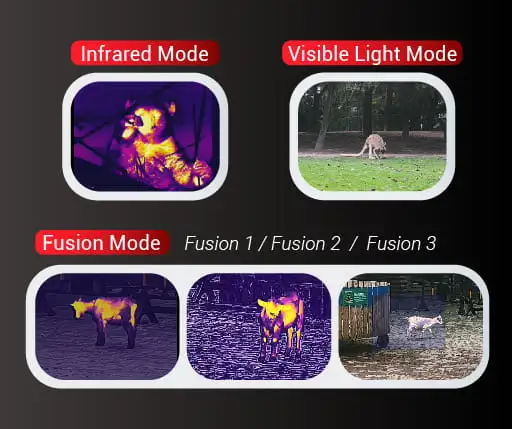

Combined Multispectral Viewing Modes
You can operate the TL Series across multiple unique imaging modes. These include a classic thermal monocular featuring five selectable color palettes, a high-resolution optical camera for both daylight and night vision use, and an exclusive Fusion mode. Fusion mode blends the sharpness of the optical image with the thermal channel, significantly enhancing detection capabilities and delivering superior visual detail.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14 m; Digital: CMOS | |||
| Resolution | Thermal: 400 300@12 m; Digital: 1920 1080@4 m | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | Thermal: 35mm, F1.0; Digital: 22mm, F1.5 | |||
| Field of view | 7.8 5.9 | |||
| FOV m@100m | 14 10 | |||
| Magnification | 2.3x~9.2x | |||
| Detection range | 1800m/1950yd | |||
