MTD653Handheld Thermal Imaging Monocular
China Moneypro
The TD Gen3 Series handheld thermal imaging monocular, compact in design, yet powerful in function. The focusing roller allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with either hand. With an impressive 12-hour battery life and IP67, it is well-equipped to handle various outdoor challenges. Featuring Wi-Fi connection, it enhances the efficiency and enjoyment of your exploration.
640 512@12 mIR Resolution
20mKNETD
1800m/1950ydDetection range
IP67Encapsulation
High-sensitivity detector, NETD down to 20mK
The TD Gen3 Series is equipped with a 12 µm infrared detector and supports resolutions of 600×512 and 400×300. With a range of available focal lengths, it produces remarkably sharp images even in total darkness.

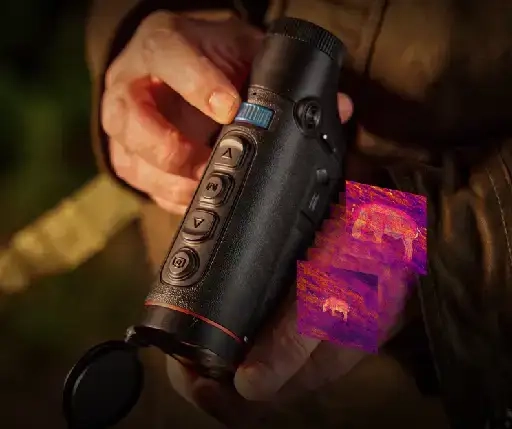

Ambidextrous design, one-handed operation
The housing features a symmetrical design, making it comfortable to use with either the left or right hand. The button arrangement is ergonomically optimized to align with natural user behaviors, allowing for smooth one-handed operation.
Fine-tuning focus, scroll with fingers
The compact focusing roller provides a distinctive, rapid, and accurate fine-tuning experience, enabling users to effortlessly adjust focus using just a single finger swipe.
Upgraded visuals, enlarged AMOLED Display
Building on the previous generation, the TD Gen3 Series now features a 0.36-inch AMOLED display with a sharp 1280×960 resolution, offering richer detail and a more comfortable viewing experience.

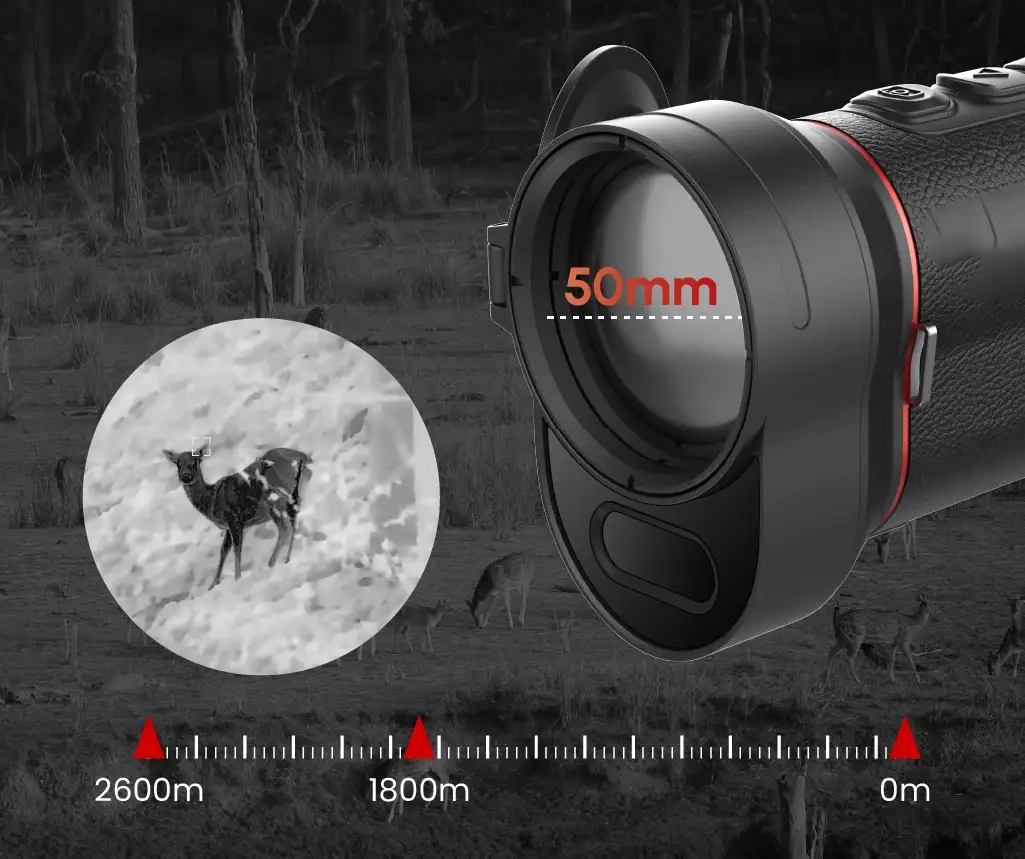

50mm lens, see farther
The TD Gen3 Series is engineered for long-range precision, featuring 35mm and 50mm lenses that produce crisp, high-detail imagery even at distances of up to 2600 meters.
Extended battery life, uninterrupted power
During field observation, exploration, and stalking, the TD Gen3 Series delivers a remarkable 12 hours of continuous operation. Its swappable 18650 battery is designed for effortless blind replacement in low-light conditions, eliminating the need to identify positive and negative terminals.

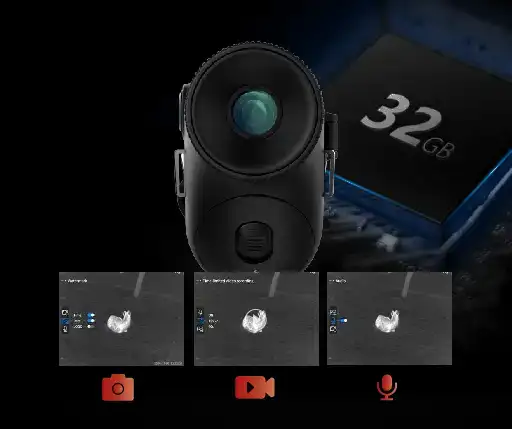

Smart recording, expanded built-in storage
The enhanced smart recording feature now supports video capture with audio. With up to 32GB of built-in storage, users can save more than 100,000 images without ever worrying about space running out.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 640 512@12 m | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.8 6.6 | |||
| FOV m@100m | 15 12 | |||
| Magnification | 2.6x~20.8x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||
