MTB650P 2.0 Clip-on Thermal Imaging Attachment
China Moneypro
The MTB 2.0 Series is a thermal clip-on tailored for hunting. It brings precision in silence while integrating multiple intelligent features into a compact, lightweight housing weighing under 490g: G-Zero shutterless technology, an in-lens LRF, the Hyper-light image enhancement algorithm, and the standard replaceable 18650 battery. It delivers unmatched downrange accuracy and exceptional handling convenience in the field.
640×512@12μmIR Resolution
18mKNETD
0.39” 1920×1080AMOLED Display
1500mLaser Range
Zero Shutter True Shutterless
The G-Zero shutterless design enables a completely shutter-free startup experience, preventing image freezes that may lead to missed targets or crucial aiming moments. Additionally, it minimizes shutter calibration sounds, supporting quiet, smooth, and uninterrupted performance.
Hyper-Light Algorithm Smarter Clarity
Powered by an AI-driven Hyper-light algorithm and an ultra-sensitive thermal sensor, this system ensures exceptional long-range imaging with sharp detail, minimal visual noise, and well-balanced contrast.

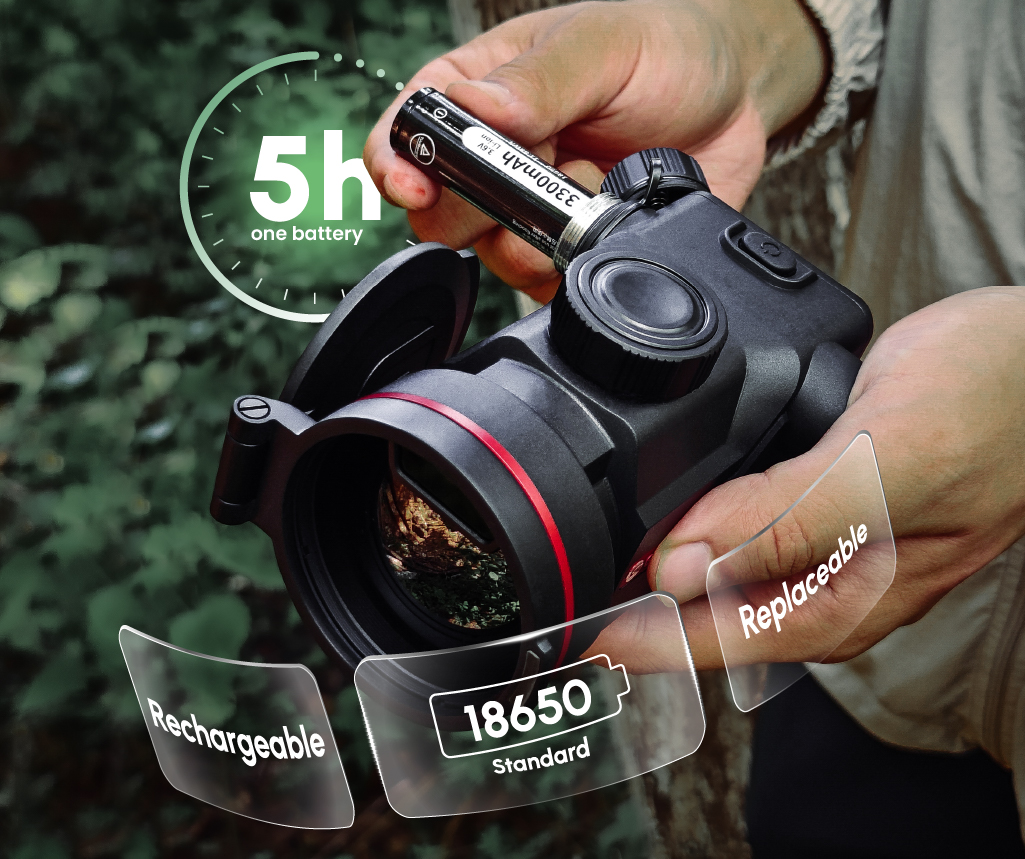

Standard 18650 Extended Runtime
To make things easier for users, the TB 2.0 Series is designed with a standard battery that is simple to buy, swap, and recharge. Each battery provides up to 5 hours of use and works seamlessly with other Guide devices. Thanks to its low-power design, energy consumption is minimized, allowing for longer operation during complete hunting trips.

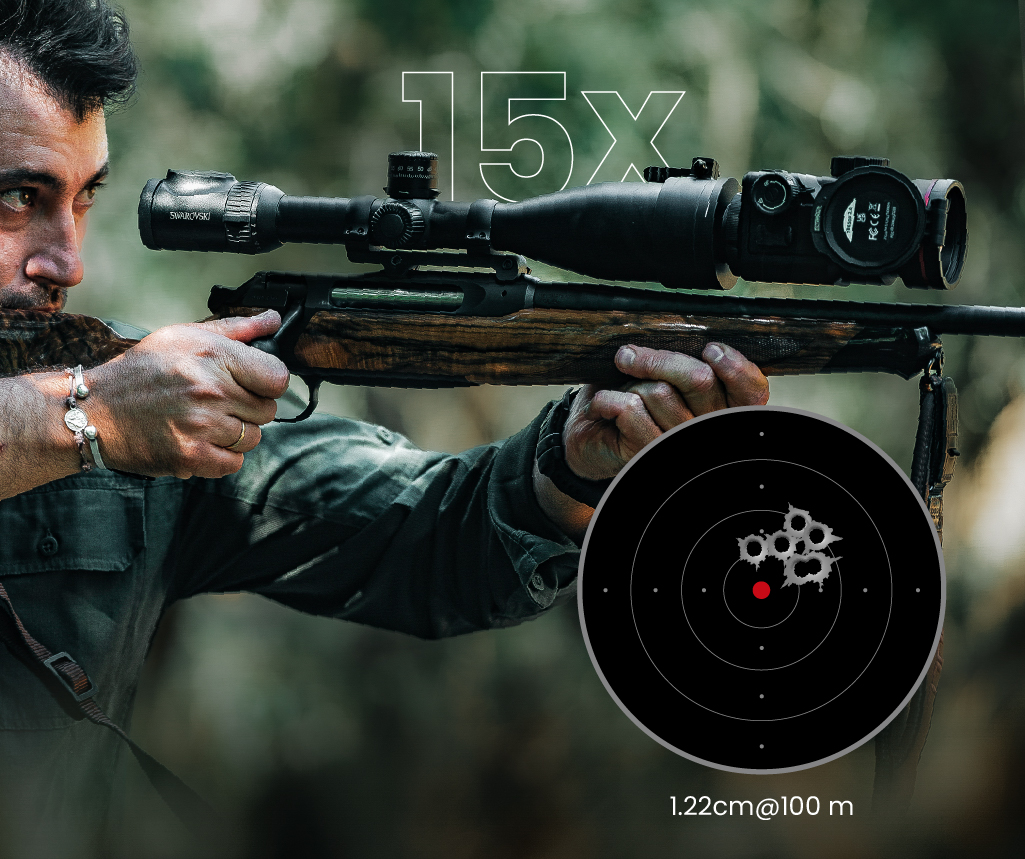

Ultra-Precise Zeroing 15x Optics Ready
The TB 2.0 Series ensures outstanding zeroing precision, featuring ultra-fine 1.22 cm click value per 100 m. It works seamlessly with daylight optics of up to 15x magnification, providing excellent consistency across shots.

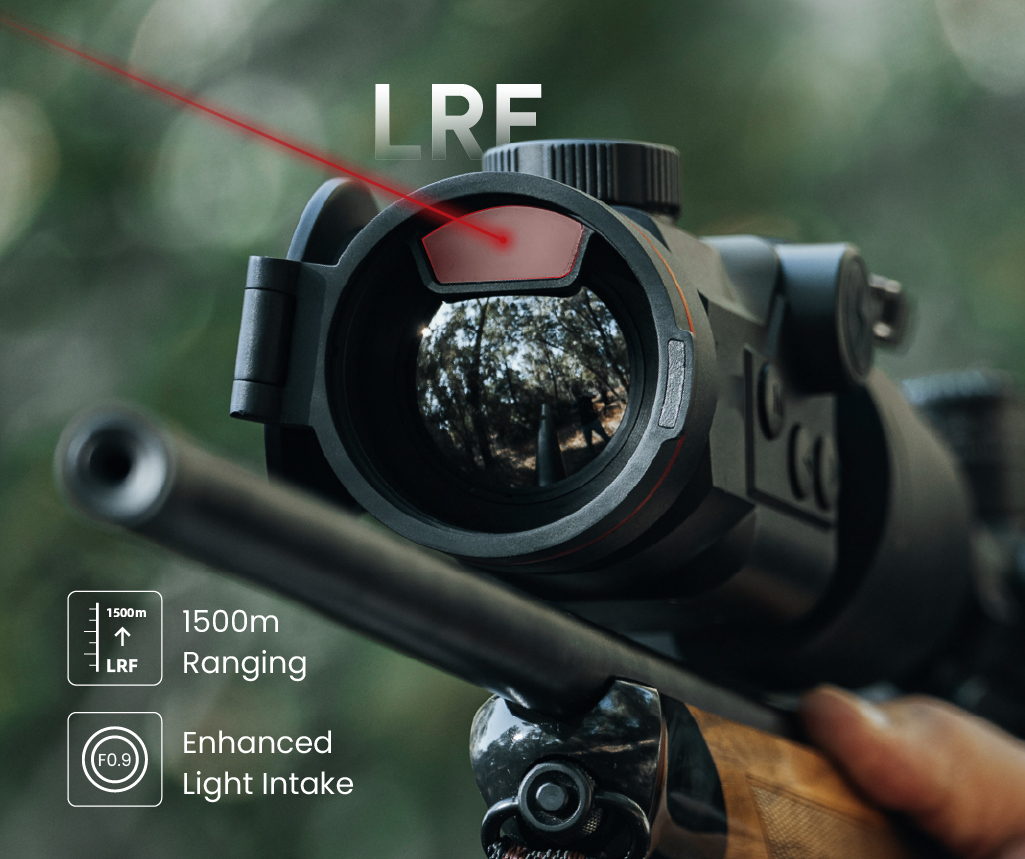

LRF in Lens One Shot, One Hit
By embedding the laser rangefinder directly inside the objective lens, the TB650P 2.0 significantly cuts down both parallax error and the unit’s physical footprint. This design upgrade delivers higher ranging precision, making it a reliable choice for accurate shooting and ballistic solutions across all distances.

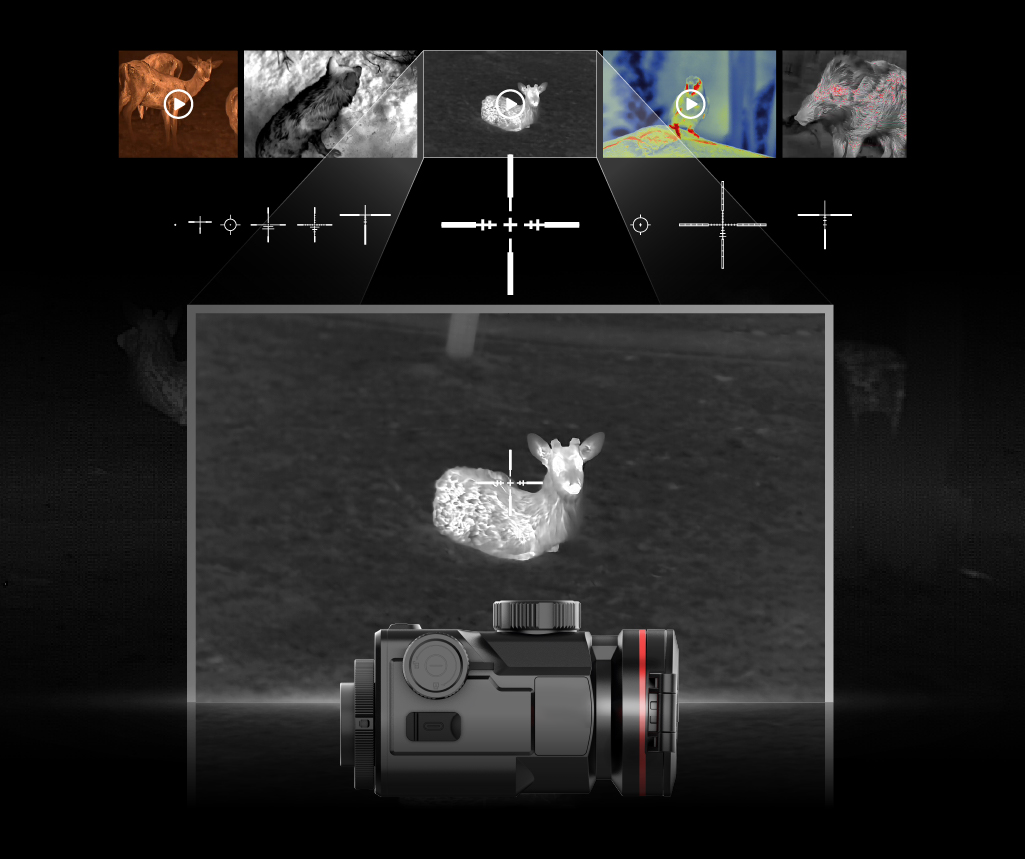

Virtual Reticle Local Album Viewing
The TB 2.0 Series supports superimposing a virtual reticle onto recorded footage, replicating real-life hunting conditions for a truly immersive experience. With its built-on device gallery, users can instantly replay, share, and review captured photos and videos without needing external tools.

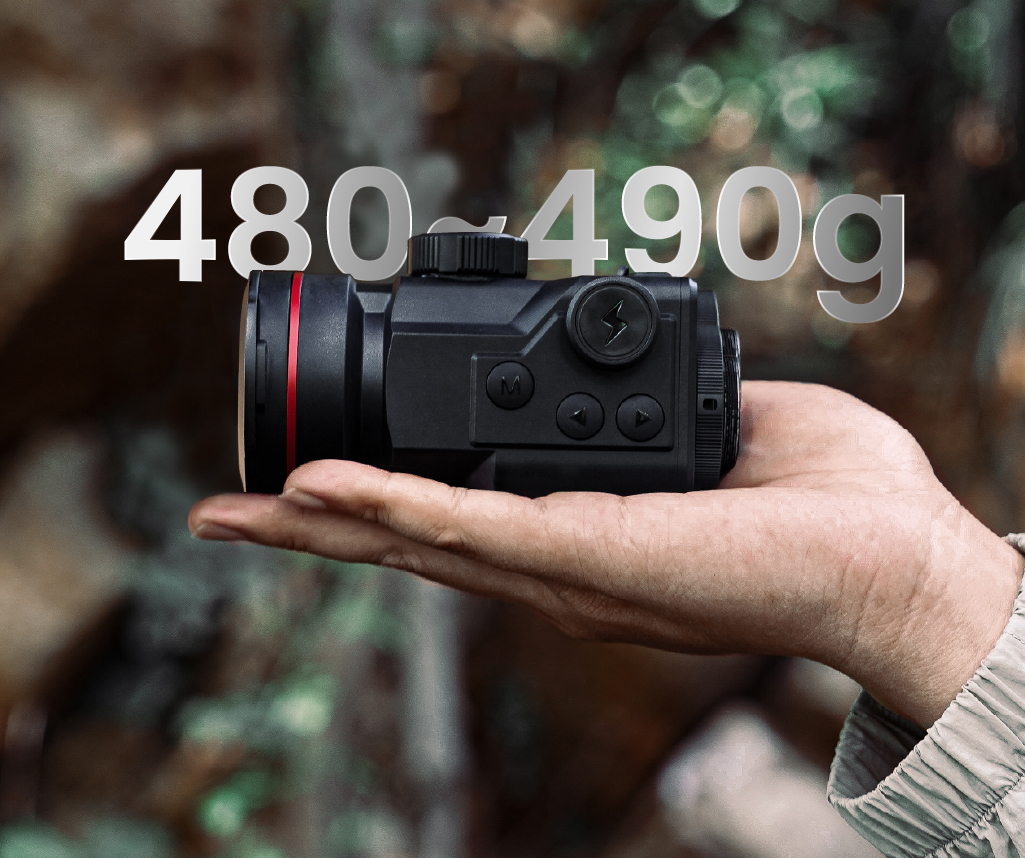

Lightweight. Balanced Comfortable Handling
Weighing just 480–490g and small enough to fit in your palm, this device comes in a compact body with reduced overall dimensions. Its thoughtfully balanced construction allows for even weight distribution when attached to a daytime scope, resulting in hunting equipment that’s simpler to maneuver and more comfortable for extended use.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 18mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F0.9 | |||
| Field of view | 8.8°×6.6° | |||
| FOV m@100m | 15×11 | |||
| Magnification | 1x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 20mm | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Power supply/USB2.0) | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 64GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, Replaceable 18650 Battery | |||
| Operating time | 5 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 490/17.28 | |||
| Size (mm/in) | 144×86×79/5.67×3.39×3.11 | |||
| Standard | Device, 18650 Battery ×2, Battery Charger, USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, Adapter Ring, 18650 Battery | |||
