MTB650 2.0 Clip-on Thermal Imaging Attachment
China Moneypro
The MTB 2.0 Series is a thermal clip-on tailored for hunting. It brings precision in silence while integrating multiple intelligent features into a compact, lightweight housing weighing under 490g: G-Zero shutterless technology, an in-lens LRF, the Hyper-light image enhancement algorithm, and the standard replaceable 18650 battery. It delivers unmatched downrange accuracy and exceptional handling convenience in the field.
640×512@12μmIR Resolution
18mKNETD
0.39” 1920×1080AMOLED Display
2600mDetection Range

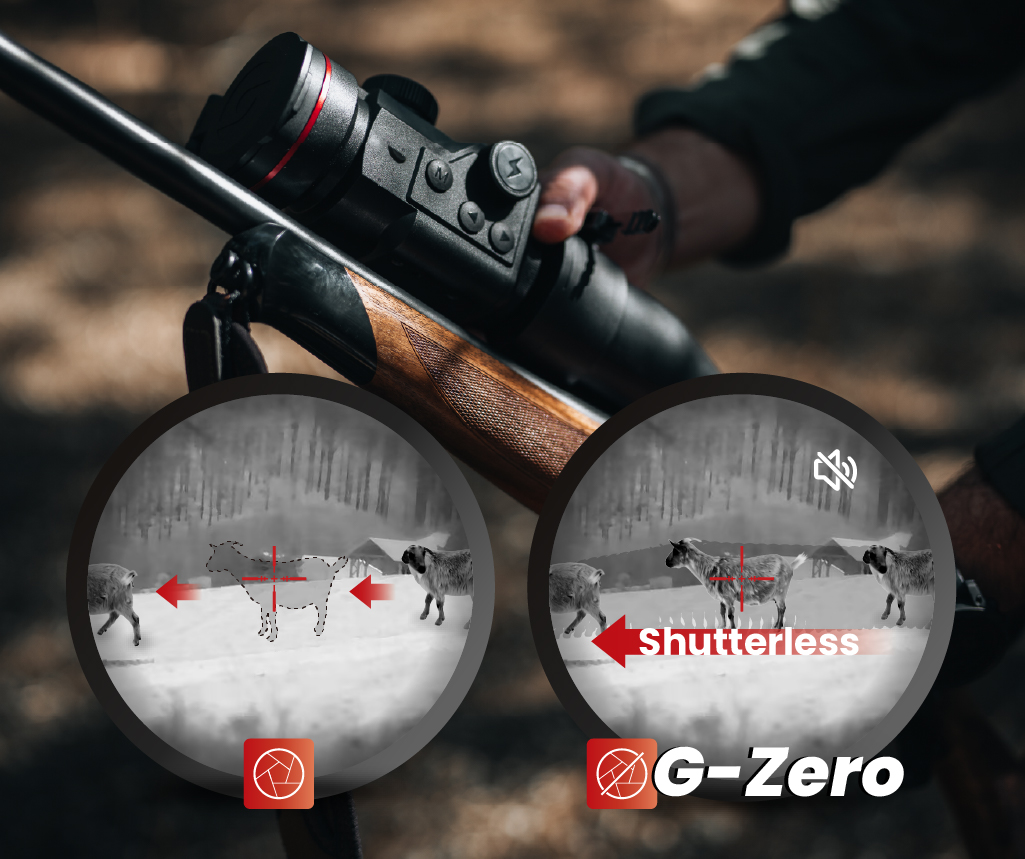

Zero Shutter True Shutterless
The G-Zero Shutterless Design enables a completely shutter-free experience from the moment of startup, preventing any image freezing that might lead to missed targets or critical lapses while aiming. Additionally, it minimizes noise from shutter calibration, guaranteeing quiet and seamless operation throughout use.
Hyper-Light Algorithm Smarter Clarity
Powered by an intelligent Hyper-light algorithm and a high-sensitivity thermal sensor, this system ensures exceptional long-range observation. It delivers sharp, detailed imagery with minimized noise and enhanced contrast for superior clarity.

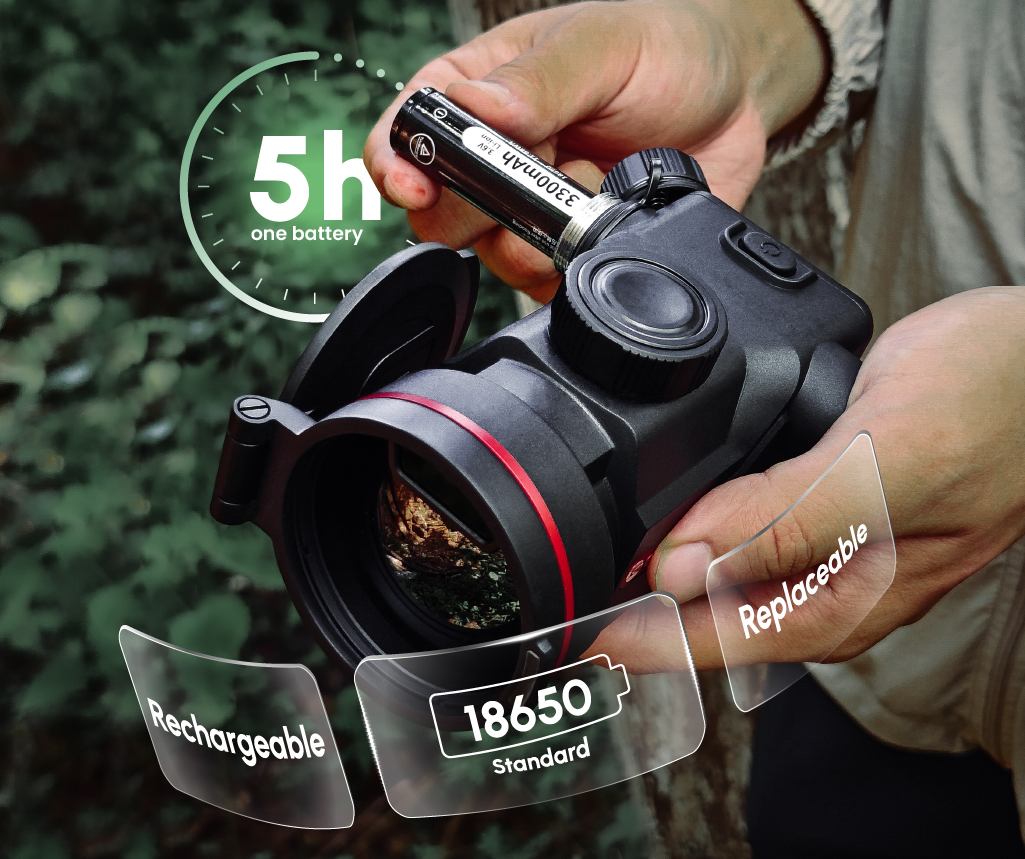

Standard 18650 Extended Runtime
The TB 2.0 Series is designed with user convenience in mind, featuring a common battery type that is simple to buy, swap out, and recharge. Each battery provides up to 5 hours of use and works seamlessly with other Guide devices. Thanks to its energy-efficient design, power draw is minimized, allowing hunters to rely on longer operation throughout their entire trip.

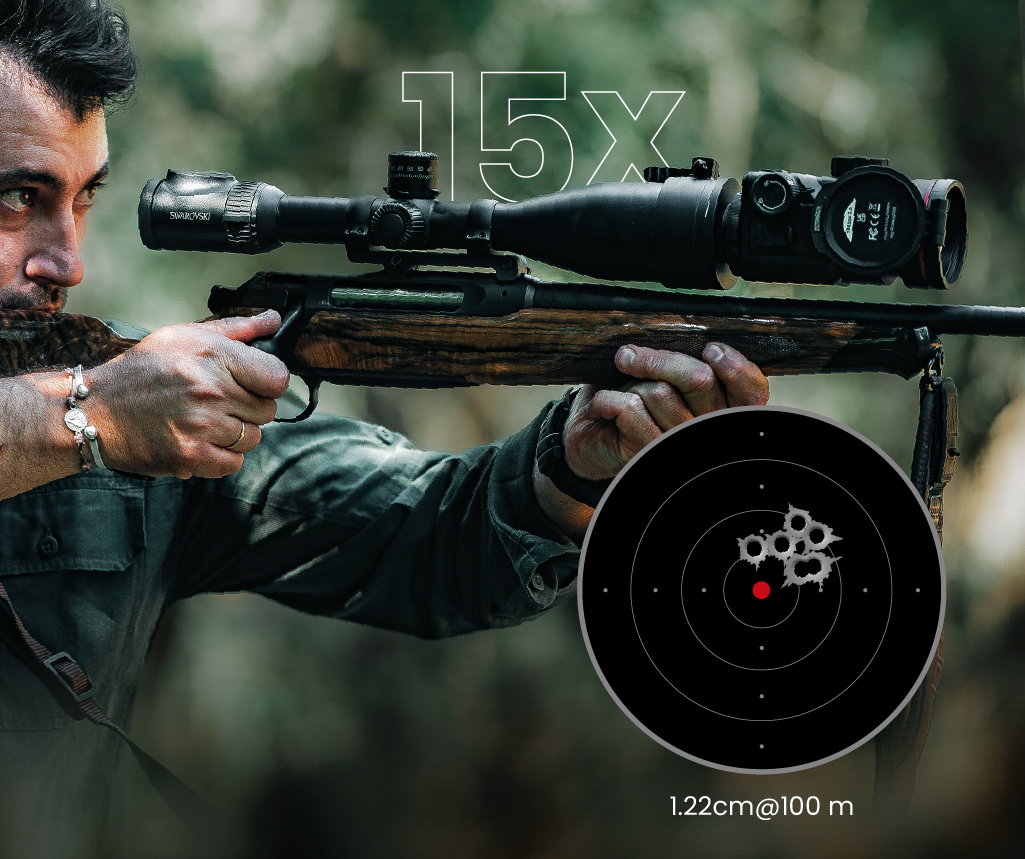

Ultra-Precise Zeroing 15x Optics Ready
The TB 2.0 Series ensures outstanding zeroing precision, featuring fine-tuned 1.22 cm click value adjustments at 100 meters. Designed to work seamlessly with daylight optics of up to 15x magnification, it provides consistently high shot-to-shot accuracy.

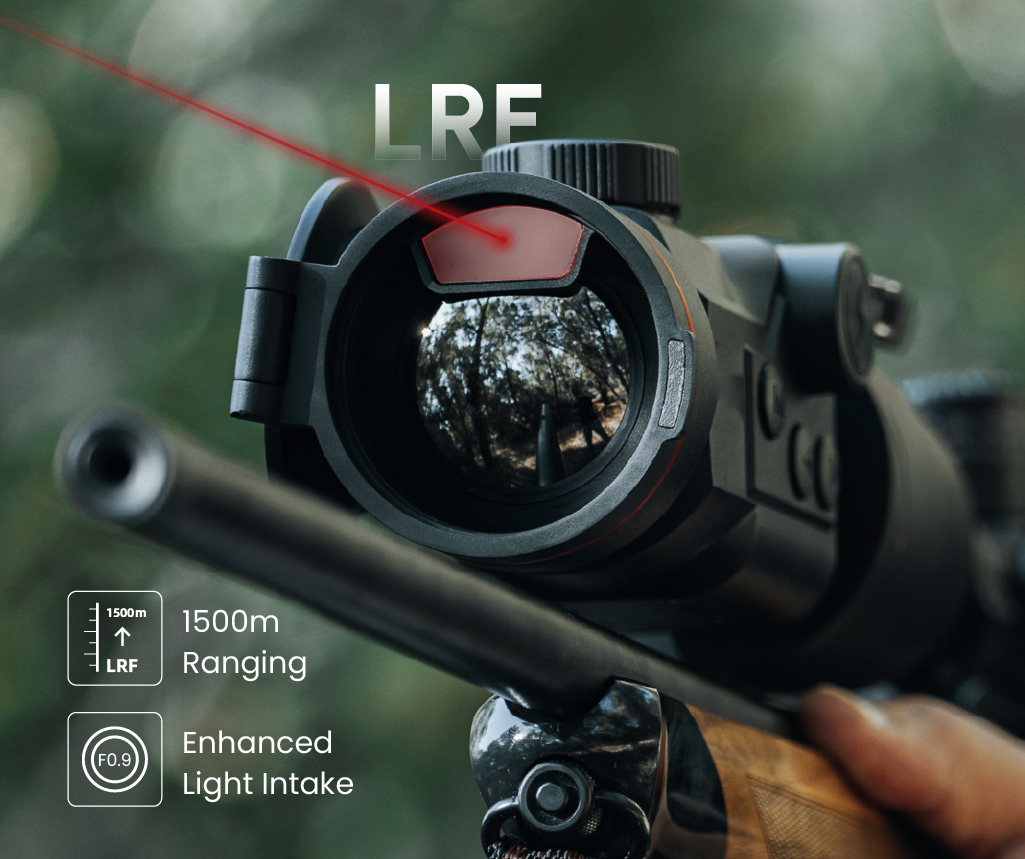

LRF in Lens One Shot, One Hit
By embedding the laser rangefinder directly inside the objective lens, the TB650P 2.0 cuts down on both parallax error and the unit’s footprint. This design enhancement delivers superior ranging accuracy, making it ideal for precision shooting and ballistic calculations across any distance.
Virtual Reticle Local Album Viewing
The TB 2.0 Series supports superimposing a virtual reticle onto recorded videos, replicating real-life hunting situations for a truly immersive experience. With its built-in gallery, users can instantly replay, share, and review captured photos and videos directly on the device without needing external tools.
Lightweight. Balanced Comfortable Handling
Weighing just 480–490g and small enough to fit in your palm, this compact device has a reduced housing size and a well-balanced construction. When attached to a daylight scope, the weight is evenly distributed, which makes the hunting setup easier to maneuver and more comfortable to operate for extended use.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 18mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.8°×6.6° | |||
| FOV m@100m | 15×11 | |||
| Magnification | 1x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 20mm | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Power supply/USB2.0) | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 64GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, Replaceable 18650 Battery | |||
| Operating time | 5 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 480/16.93 | |||
| Size (mm/in) | 144×86×79/5.67×3.39×3.11 | |||
| Standard | Device, 18650 Battery ×2, Battery Charger, USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, Adapter Ring, 18650 Battery | |||
