MTB1250LP Thermal Imaging Attachment
China Moneypro
After an in-depth hardware upgrade and software optimization, the TB LRF Pro Series combines precision and portability. Its appearance remains light without reducing professionalism at all: built-in laser rangefinder can reach an ultra-long distance of up to 1,500 meters; two batteries empower a longer operating time; full HD AMOLED display brings a rich and detailed visual experience; it also supports intelligent functions such as image tracing, automatic recording after each shot, etc.
1280×1024@12μmSensor
18mKNETD
50mm F1.0Lens
1500mLaser rangefinder
Mega-Pixel infrared detector, NETD reaches 18mK
The TB LRF Pro Series features an ultra-sensitive 12μm infrared sensor capable of delivering 1280×1024 resolution. With a NETD as low as 18mK, this advanced detector excels at identifying even the most subtle temperature variations and distinctions.
Ultra-long laser ranging, 1500m built-in LRF
The integrated LRF module supports a long-distance laser measurement range of up to 1500 meters (1630 yards), allowing users to rapidly and accurately identify and pinpoint targets.

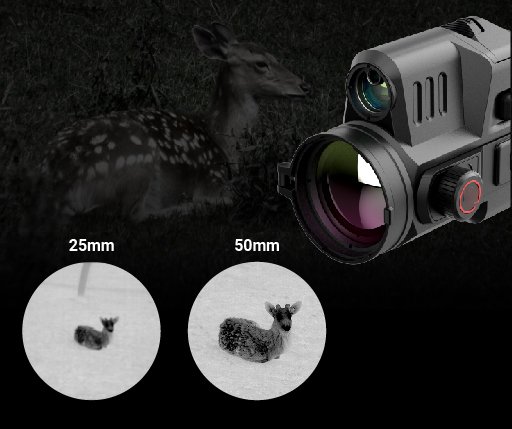

50mm lens for more image details
The TB LRF Pro Series is equipped with a 50mm longer focal length, which extends the observation range and captures finer image details compared to standard lenses.
Stunning visual experience, Full-HD AMOLED display
The TB LRF Pro Series is equipped with a 0.39-inch AMOLED screen featuring a 1920×1080 resolution, delivering vibrant visuals and enhanced detail for an improved viewing experience.
Target detection range up to 2600m
With a maximum detection range of 2,600 meters or 2,800 yards, this device allows you to spot targets from far away, giving you a clearer view and broader observation capability in outdoor environments.

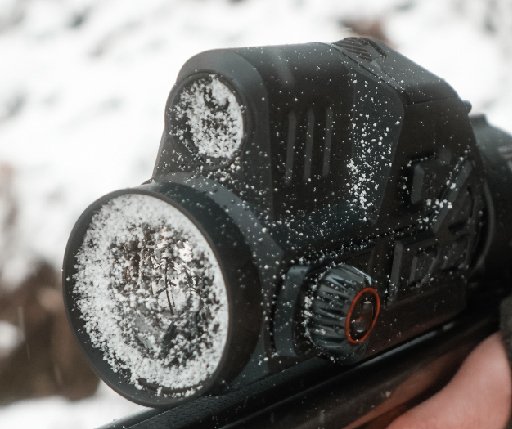

IP68 waterproof, durable quality
Built tough yet easy to carry, the TB LRF Pro Series delivers impressive power in a compact body. With IP68-rated high-level protection, it’s ready for your outdoor missions—even in the harshest conditions.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 1280×1024@12μm | |||
| NETD | 18mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 17.5°×14.0° | |||
| FOV m@100m | 31×25 | |||
| Magnification | 1x | |||
| Detection range | 2600m/2800yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 20mm; Zoom: 13.3x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 256GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 6 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 1000G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 617/21.76 | |||
| Size (mm/in) | 161×89×97/6.34×3.50×3.82 | |||
| Standard | A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | 18650 battery, Bluetooth remote control, Cover ring adapter | |||
