MQT160B Optical Aiming Unit
China Moneypro
The MQT160B Optical Aiming Unit is a lightweight, high-precision electro-optical system combining infrared thermal imaging, visible light camera, and laser rangefinder technology. Designed for installation on various firearms, it enables 24/7 day and night reconnaissance, surveillance, and target acquisition. The system features dual-channel imaging with real-time infrared and visible light output, 30x optical zoom, automatic target tracking, and accurate laser ranging up to 3000 meters. Advanced capabilities include continuous zoom during tracking, image overlay, target identification for people and vehicles, and pseudo-color thermal imaging. With an uncooled 640×512 thermal detector, 1920×1080 visible camera, and integrated image tracker, this compact unit weighs under 2.5kg and operates reliably in extreme temperatures from -40 to 60 degrees Celsius. IP67-rated for harsh environments, it connects via RS422 control and HD-SDI video interfaces with onboard storage support.
The MQT160B electro-optical aiming unit features an integrated design combining a three-spectrum electro-optical module with an image tracker. It is lightweight, highly precise, and highly integrated. Suitable for installation on a variety of firearms, it enables day and night reconnaissance, surveillance, and target locking.
The unit supports all-weather target detection and tracking using infrared and visible light, with real-time output of both infrared and visible light imagery. In addition, its integrated laser rangefinder measures and outputs the distance to the target in real time.
I. Photos of the actual product
Figure 1. Product image of QT160B optoelectronic aiming unit
II. Product Functions
a) Equipped with infrared imaging, visible light imaging, and laser ranging capabilities.
b) Features visible light focusing and zoom functions.
c) Supports continuous zoom during image tracking.
d) Designed with pickup truck mounting capability.
e) Includes image overlay functionality.
f) Capable of generating cursors based on received instructions.
g) Possesses image tracking capability.
h) Able to identify typical targets (e.g., people and vehicles).
III. Installation Platform
Various firearms.
IV. Main Technical Parameters
| model | QT160B Optical Aiming Unit |
| Infrared thermal imager | |
| Detector type | Uncooled focal plane detector |
| Operating band | 8μm～14μm |
| Detector resolution | 640×512 |
| Pixel size | 12μm |
| Lens focal length | 35mm |
| Field of view | 12.5°×10.0° |
| Pseudo-color | 10 types |
| Numbers multiplied | 1～4X |
| Noise equivalent temperature difference | NETD≤50mK |
| Minimum distinguishable temperature difference | MRTD≤500mK |
| Visible light camera | |
| resolution | 1920×1080 |
| Response band | 0.4μm to 0.9μm |
| Pixel size | 2.8μm |
| Optical zoom | 30 times |
| focal length | 4.6mm～138mm |
| Field of view | 54.1°×30.4°～1.99°×1.1° |
| zoom mode | Autofocus, manual focus |
| Minimum Illumination | 0.01 Lux (Black and White) |
| Laser rangefinder | |
| wavelength | 1535nm |
| Maximum ranging distance | ≥3000m (under conditions of visibility ≥15km) |
| Minimum ranging distance | ≤15m |
| Distance measurement accuracy | ±2m |
| Ranging frequency | 1～5Hz |
| System Indicators | |
| Image tracking | Automatically track selected target |
| Power supply voltage | DC 18V～30V |
| power | Stable power consumption: ≤40W |
| weight | ≤2.5kg |
| volume | 194.7mm×142mm×115mm |
| interface | |
| Control Interface | RS422 |
| Video interface | HD-SDI/100Mbps Ethernet |
| Storage interface | ≤128G memory card (Mini SD card) |
| Storage format | .avi format |
| Environmental adaptability | |
| Operating temperature | -40℃～＋60℃ |
| Storage temperature | -45℃～＋65℃ |
| Protection level | IP67 |
V. Mechanical Dimensions and Installation Interfaces

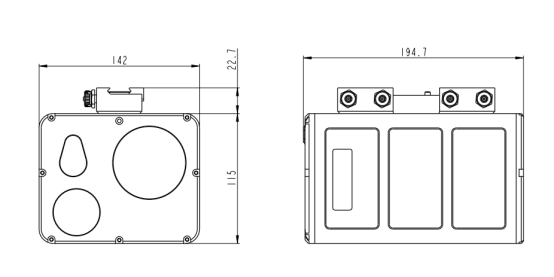

Figure 2 Product mechanical dimensions diagram
