MFC465T Dual-Spectrum Bullet Camera

China Moneypro

MFC4T dual-spectrum bullet camera equipped a high-resolution, 12μm pixel pitch thermal detector with various lens options, and a 5MP visible light sensor.
It supports tripwire/intrusion detection and it integrated temperature analysis methods and fire detection function.
It can be used for perimeter protection and fire prevention in residential areas and commercial facilities.
Support TPM technology and meeting the FIPS 140-3 Level 3 standard.

Feature

12μm Uncooled Infrared Detector

Leveraging next-generation 12μm uncooled infrared detectors alongside cutting-edge infrared imaging algorithms, the system delivers significantly enhanced image quality.

Dual-Spectrum Imaging

Round-the-clock, all-condition surveillance featuring both thermal and visible-light dual imaging.

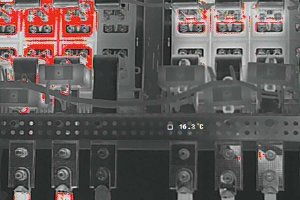

Accurate Temperature Measurement

Measuring span: -20°C to 550°C. Precision: within ±2°C or 2% of reading.

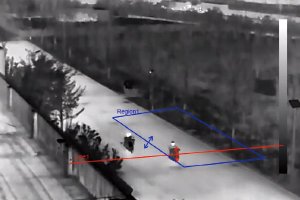

Intelligent Video Analysis

Enable tripwire and intrusion monitoring, along with smart identification of fire sources.

Intelligent Alarm

Supports alarm integration for coordinated response.

Platform Integration

Supports ONVIF, comes with SDK and demo for development, and offers NVR and VMS software for application integration.

Specification

Thermal Module
Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	640×512
Pixel Pitch	12μm
Focal Length	9.1mm/13mm/19mm/25mm/35mm
Optical Module
Sensor	5MP 1/2.8″ Progressive Scan CMOS
Resolution	2560×1920
Focal Length	4mm/6mm/6mm/12mm/12mm
IR distance	40m
Image Function
Bi-Spectrum Image Fusion	Support
Temperature Measurement
Temperature Range	-20℃~+550℃
Temperature Accuracy	±2℃ or ±2%
Temperature Measurement	Support 4 temperature measure ment rules(fullframe, point, line, area)
Smart Function
Fire Detection	Support
VCA	Support Line Crossing & Intrusion detection
2-Way Audio	Support
Linkage Action	Video/ Snapshot/Email/Alarm output/sound and light alarm
System Interface
Power	DC 12V±25%/POE(802.3at)
Network	1 RJ45 10M / 100M self-adaptive Ethernet port
Audio	1 in/1 out
Alarm	2 in/1 out
Storage	Micro SD memory（maximum 256G）
Reset	Support
Serial Port	1 channel RS485, can support Pelco protocol
General
Work Environment	-40℃~+70℃；<95%RH
Protection	IP66
Certification	CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3
Power Consumption	≤8W
Dimenstion(mm)	319.5×121.5×103.6
Weight	≤1.8kg
