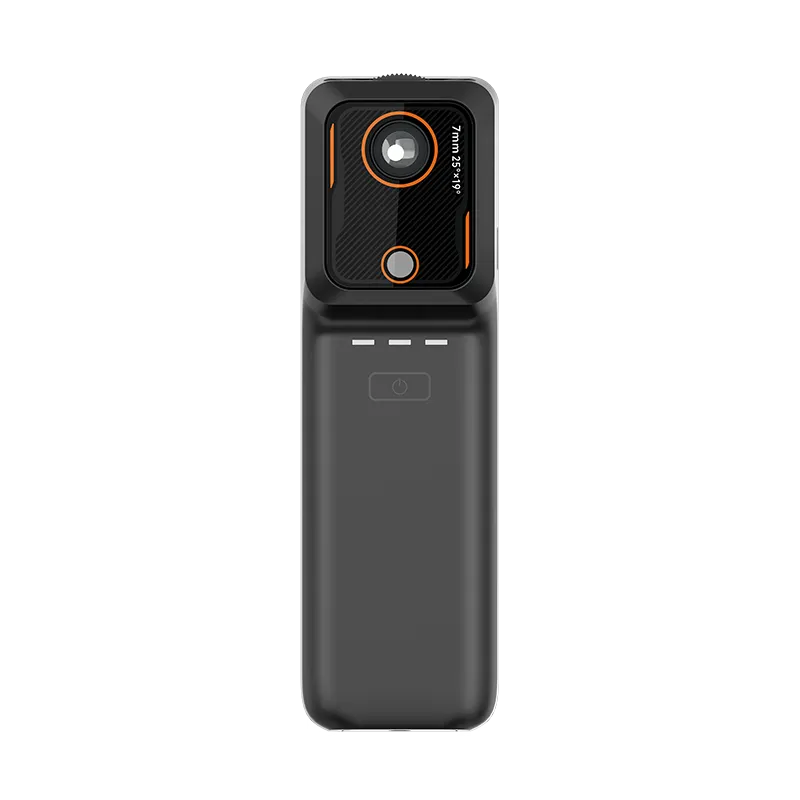

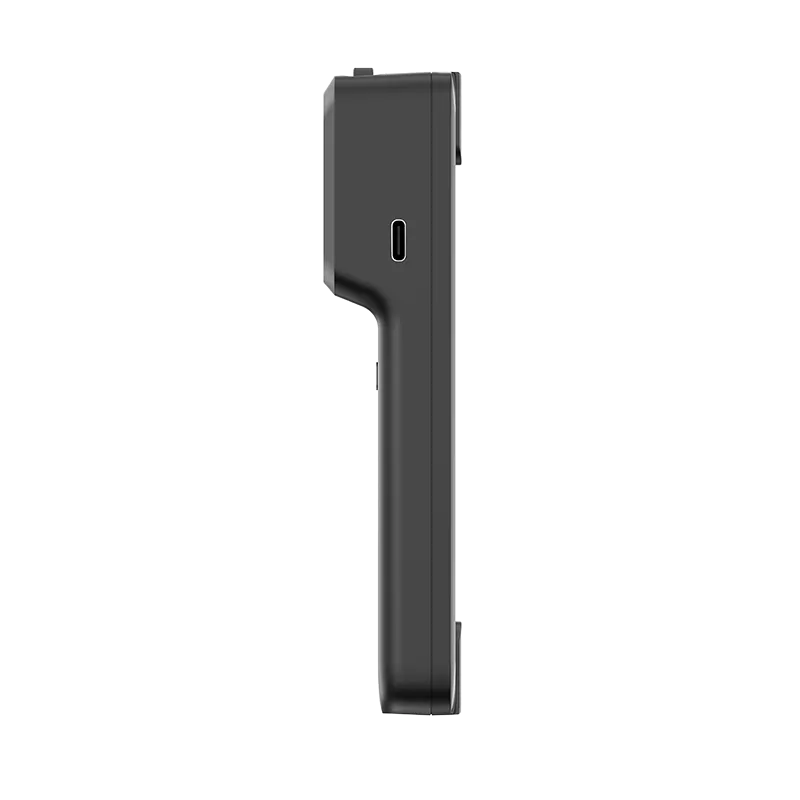

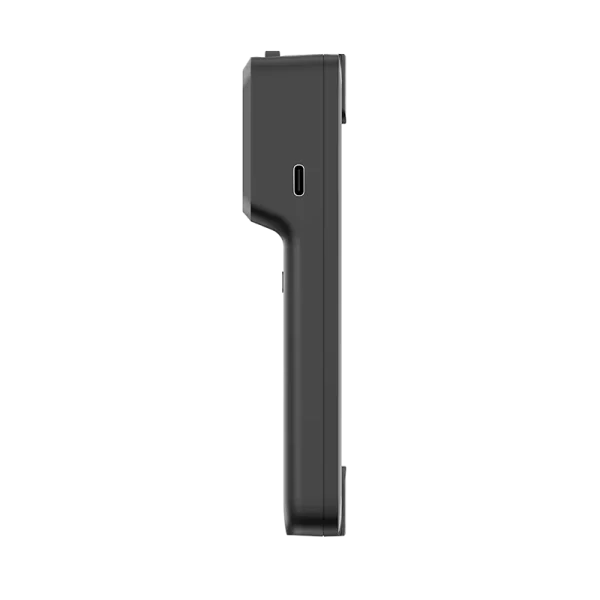

MIX2 AIR Pro Wireless Thermal Camera for Smart Devices

China Moneypro

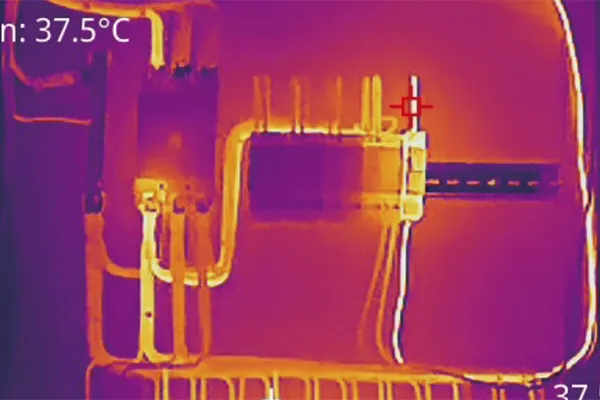

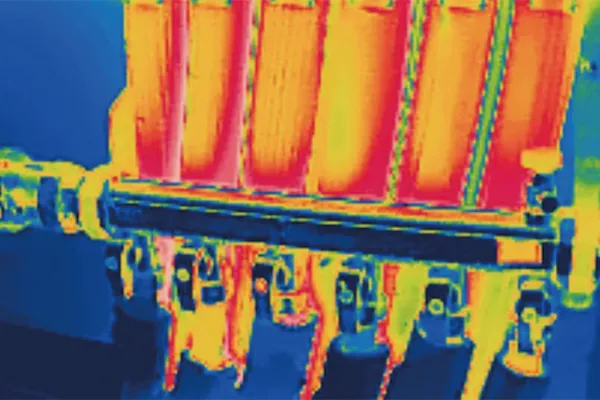

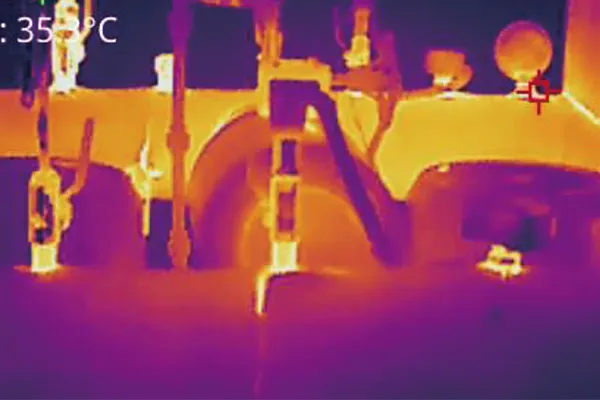

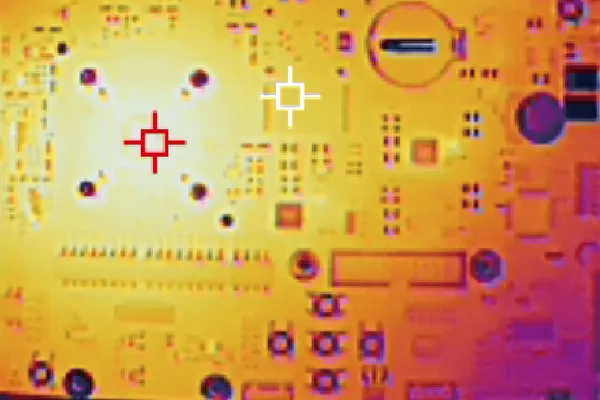

MIX2 AIR Pro new wireless thermal camera for smartphones is compatible with Android and iOS devices, enabling wireless image transmission up to 30m away. With the 256×192 thermal imaging resolution, it can achieve four times the AI real-time super-resolution up to 512×384. With the 7mm adjustable focus lens, it is capable of close-range HD imaging. AI Raya voice interaction enables quick parameter setting. It is suitable for industrial scenarios such as circuit board maintenance, electrical maintenance, equipment inspection and HVAC leak detection to efficiently locate thermal hazards.

Feature

Wireless measurement, smart portable thermal camera

7mm manual focus lens
30m wireless image transmission, with a delay of less than 300ms
AI voice assistant bringing about a thermal camera that understands needs

High-definition thermal image, full-powered AI real-time super-resolution

256×192 resolution, AI real-time super-resolution up to 512×384
NETD as low as 40mK, real-time display of high-definition thermal images
25Hz frame rate, clearer subtle hot spots
Wide measurement range from -20°C to 550°C

Software+: complete software ecosystem

Equipped with a professional mobile/PC temperature analysis platform, it supporting secondary analysis

Specification

Thermal Imaging
Detector Type	Uncooled infrared detector
Infrared Resolution	256×192
Pixel Size	12μm
Super Resolution	512×384
Spectral Band	7.5-14μm
NETD	40mK
Frame Rate	25 Hz
Lens Focal Length	7mm
FOV	25°×19°
IFOV	1.71mrad
Focusing Mode	Manual focusing
Minimum Imaging Distance	0.1m
Measurement Range	-20°C ~ +550°C
Measurement Accuracy	±2ºC or ±2% of readings, whichever is greater
Imaging Display
Visible Light Camera	2 megapixels
Digital Zoom	1×, 2×, 4×
Palettes	10
Image Mode	Infrared, visible light, PIP, dual-spectrum fusion
Temperature Width Stretch	Automatic/Manual
Image Storage
Storage Medium	lmages stored in the APP by default and downloadable to a local album
Measurement and Analysis
Analysis Functions on the Device	Up to 3 movable points, lines, and frames; up to 3 preset templates
Analysis Report	PDF format, supporting APP-side report generation
Supporting Software	PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)
Video Functions
Radiation Infrared Video Recording	Standard MP4
Radiation Infrared Video Stream Transmission	TYPE-C/WLAN connection to PC, for real-time transmission of radiation infrared video streams
Video Resolution	512×384
System Functions
Communication Protocol	Wi-Fi, USB, Bluetooth
Voice Control	Voice assistant, quick command recognition
Others
Battery	Built-in 1050mAh lithium-ion battery
Charging Mode	USB Type-C direct charging
Battery Life	About 2h
External Interface	USB Type-C
Tripod Socket	UNC 1/4-20 interface for tripod
Operating Temperature	-10°C~+50°C
Operating Humidity	10%~90% (non-condensing)
Storage Temperature	-20°C~+60°C
Ingress Protection Rating	IP54
Shock and Vibration	Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
Weight and Dimensions	About 142g,136.2x41x29.3mm
Certificates	CE/FCC/ROHS/SRRC/DGM/CMA
Package Contents	Thermal camera, Type-C cable, quickstart guide n certificate, certificate of conformity, portable bag
