MPR410 Thermal Camera for Fire Service
China Moneypro
PR II series dual-purpose thermal imaging camera for rescue and detection empowers a new perspective for firefighters. The product is certified as Intrinsic Safety Explosion-Proof. It combines high resolution, a large display screen, multiple scene modes, temperature analysis functions, and a strong protection rating, which can break through the limitations of harsh environments such as high temperatures, high humidity, and thick smoke in fire scenes to help firefighters see the surrounding environment quickly and clearly, locate the fire and search for trapped individuals more accurately, providing users with more efficient and safe fire visualization solutions.
384×288@12 mInfrared Resolution
-40 C~2000 C Ultra-Wide Temp.Range

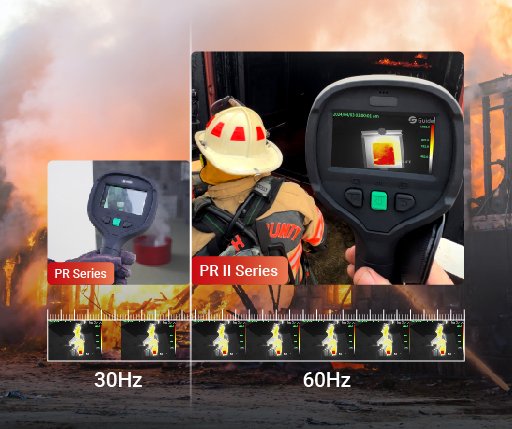

60HzIR Frame Rate
0.5m~ Detection Range
Anti-Glare Display Delivers Clear Imaging
Switch effortlessly between long-range scanning and close-range temperature checks—no lens swapping required. Tackle a wide range of scenarios with exceptional efficiency and unmatched adaptability.
-40 C~2000 C Temperature Range
Accuracy: 2°C or 2%, whichever value is larger
Measurement Range: Automatic switching supported across multiple spans: -40°C to 150°C, 0°C to 650°C, and 500°C to 2000°C (requires an aperture for the highest range)

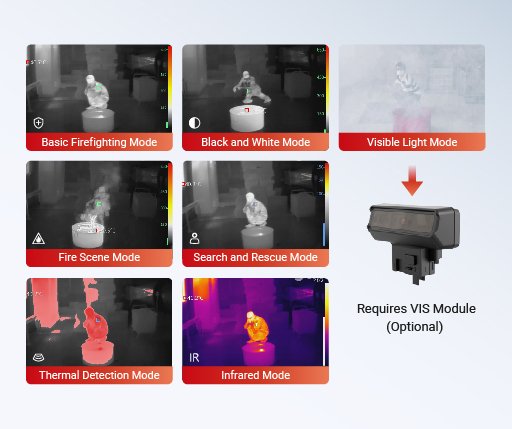

7 Image Modes, Multi-Scenario Firefighting
Engineered for a wide range of fireground scenarios, this feature uses scene-specific imaging presets to improve situational awareness. It enables faster, smarter decision-making, leading to more precise identification of fire origins and individuals at risk.
Multi-Functional Module Enhances Rescue Efficiency
Equipped with a versatile VIS module, the PR II Series not only supports visible-light observation and supplementary illumination but also enables accurate distance measurement via a laser rangefinder. This significantly improves operational efficiency during nighttime or low-light conditions.
Versatile Desktop Charger, Smart Power Management
All-in-one charging station for your desk

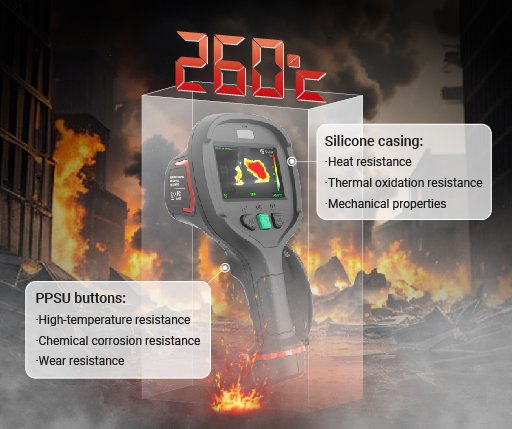

Extreme Thermal Resilience:Full Functionality at 260 C
The PR II Series is built to endure the most severe fireground environments, including extreme heat, high humidity, heavy smoke, and other tough conditions. It remains fully operational for up to 5 minutes at 260°C.
Technical Parameters
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14 m | |||
| Infrared resolution | 384 288@12 m | |||
| NETD | 45mK | |||
| Frame rate | 60Hz/9Hz | |||
| Focal length | 9mm | |||
| Field of view | 50 37 | |||
| IFOV | 2.3mrad | |||
| Min. object distance | 0.5m | |||
| D:S | 435:1 | |||
| Focusing mode | Focus-free | |||
| Digital zoom | 2x/4x/8x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40 C to 150 C, 0 C to 650 C, Optional 500 C to 2000 C (Aperture is required) | |||
| Measurement accuracy | 2 C or 2%, whichever is greater | |||
| Analyzed target | Three spots: Center, Maximum temperature, Minimum temperature; Three Fixed Areas: Small, Medium, Large (Alternative) | |||
| Alarm | Full screen temperature threshold alarm (Vibration, Screen flicker, Buzzer) | |||
| Others | OTA update | |||
| Image display | ||||
|---|---|---|---|---|
| Display screen | 4.3″ LCD, 800 480 | |||
| Image mode | 6 Modes: Basic fire fighting, Black and white, Fire scene, Search and rescue, Thermal detection, Standard | |||
| Color palettes | 8: Black Hot, White Hot, Iron Red, Arctic, Hot Iron, Rainbow 1, Fulgurite, Tint (Alternative palettes are supported only in Standard mode) | |||
| Image adjustment | Level span mode: Automatic | |||
| Functions | ||||
|---|---|---|---|---|
| Recording function | Photo and Video | |||
| Storage and transmission | ||||
|---|---|---|---|---|
| Storage media | Built-in storage (128 GB) | |||
| Image storage | JPG with temp info | |||
| Video storage | MP4 format (without temp info); Irgd (with temp info), up to 30 Hz (optional) for temperature analysis | |||
| External interface | USB-C, Micro HDMI, Tripod socket | |||
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | |||
| Power system | ||||
|---|---|---|---|---|
| Battery type | Lithium-ion rechargeable battery | |||
| Operating time | 4 hours | |||
| Environmental parameters | ||||
|---|---|---|---|---|
| Working temperature | General Working temperature range: -10 C to +50 C; Specific Working temperature ranges: 80 C: 30 minutes, 120 C: 10 minutes, 260 C: 5 minutes | |||
| IP rating | IP67 | |||
| Drop | 2m drop test | |||
| Physical parameters | ||||
|---|---|---|---|---|
| Hardware | WIFI, Speaker | |||
| Weight | 1.3kg (with battery) | |||
| Size | 296 122 153mm | |||
| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) | |||
| Standard | A device (with lens), Lens cover, Aperture, Lithium-ion battery (3 pcs), Desktop charger, Power adapter, Adapter plug, USB-C to USB-C Cable, USB-A to USB-C Cable, Micro HDMI to HDMI Cable, Hand strap, Neck strap, Telescopic buckle, Lanyard, Carrying bag, Safety box, Quick Start Guide, Warranty card, Inspection report, Calibration certificate | |||
| Options | Digital camera module, Battery, Tripod | |||
