China Moneypro

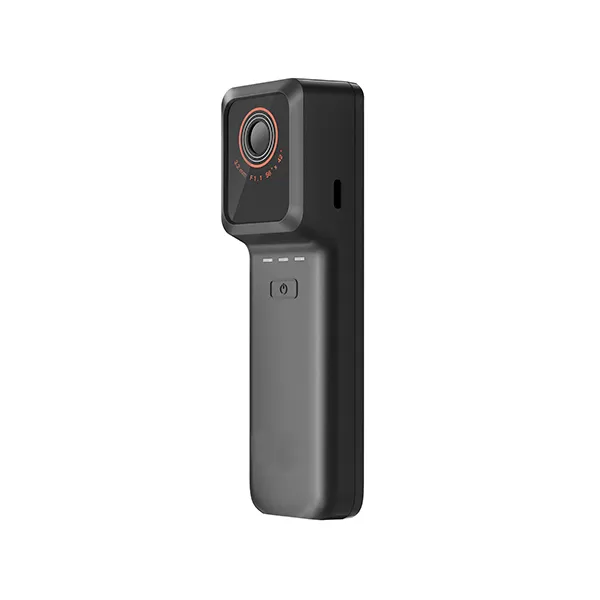

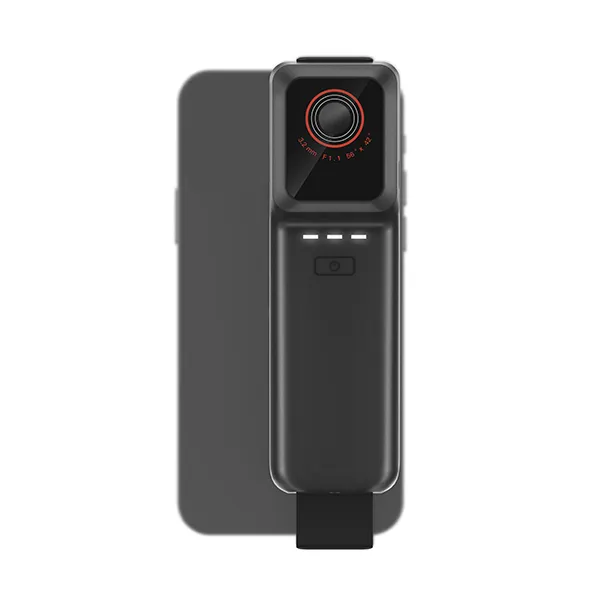

MIX2 AIR SE Wireless Thermal Camera for Smart devices
China Moneypro

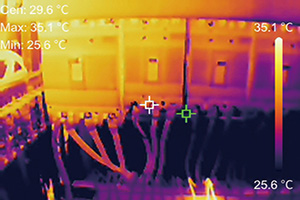

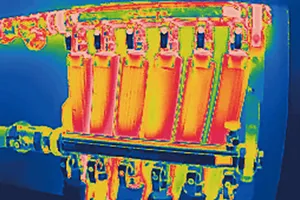

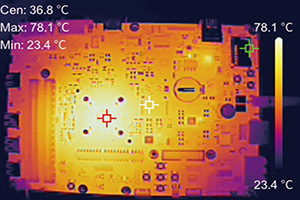

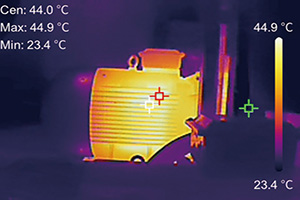

Equipped with a high-sensitivity 256×192 resolution infrared detector, the IX2 AIR SE can be freely combined or separated with a smartphone according to the scenarios. It supports wireless image transmission and operation. With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.
Wireless Measurement, Unlocking New Scenarios
1. Image transmission delay is kept under 300ms.
2.Equipped with a 2-hour battery life to ensure continuous productivity.

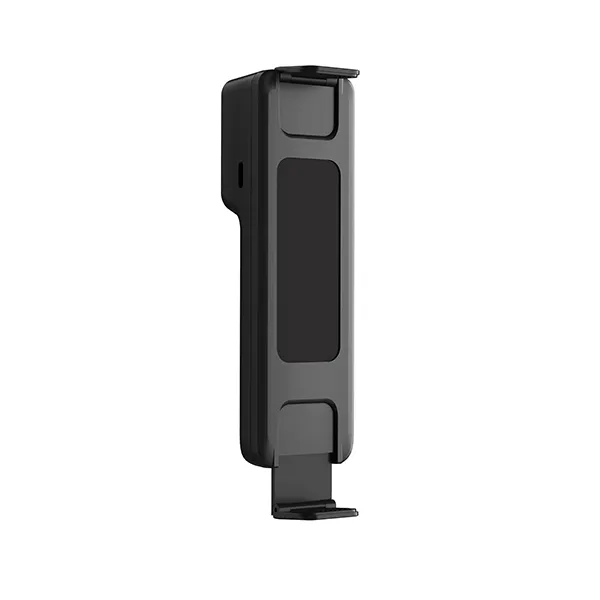

3.The drone body includes a back clip and standard threaded holes, making it compatible with a range of accessories and allowing users to observe targets from multiple angles with ease.
2.Equipped with a 2-hour battery life to ensure continuous productivity.
3.The drone body includes a back clip and standard threaded holes, making it compatible with a range of accessories and allowing users to observe targets from multiple angles with ease.
Clear Thermal Images, Precise Temperature Measurement
Equipped with a compact, energy-efficient 12μm 256×192 infrared sensor.
Delivers 40mK professional-grade thermal sensitivity to detect even subtle temperature variations, and supports a broad measurement range reaching 550°C.
Offers 4 imaging modes and 7 color palettes, making it adaptable for observing thermal characteristics across various targets and environments.
Delivers 40mK professional-grade thermal sensitivity to detect even subtle temperature variations, and supports a broad measurement range reaching 550°C.
Offers 4 imaging modes and 7 color palettes, making it adaptable for observing thermal characteristics across various targets and environments.
Hard-core Configuration, Easy to Use and Convenient
IP54-rated for water and dust resistance, with 2m drop protection. Its lightweight, slim profile fits comfortably in your hand.
Bluetooth-assisted Wi-Fi enables faster connections, and OTA updates can be done effortlessly via the mobile app.
The professional app supports full-scenario use, including real-time and offline analysis of thermal imaging data.
*The 8m image transmission distance is based on tests conducted in open, unobstructed spaces.
Bluetooth-assisted Wi-Fi enables faster connections, and OTA updates can be done effortlessly via the mobile app.
The professional app supports full-scenario use, including real-time and offline analysis of thermal imaging data.
*The 8m image transmission distance is based on tests conducted in open, unobstructed spaces.
Specification
| Thermal Imaging | |
| Detector Type | 12μm uncooled infrared detector |
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | ＜40mK (25°C,F1.0) |
| Frame Rate | 25 Hz |
| Lens Focal Length | 3.2mm |
| FOV | 56°×42° |
| IFOV | 3.75mrad |
| Focusing Mode | Fixed focus |
| Minimum Imaging Distance | 0.3m |
| Measurement Range | -20°C ~ +150°C, 100°C ~ +400°C |
| Measurement Accuracy | ±2ºC or ±2% of readings, whichever is greater |
| Imaging Display | |
| Palettes | 7 options |
| Image Mode | Infrared |
| Temperature Width Stretch | Auto |
| Measurement and Analysis | |
| App Analysis Function | Central temperature point/Highest temperature point/Lowest temperature point, 1 preset analysis template (support 3 custom points, 3 custom lines, and 3 custom frames) |
| System Functions | |
| Communication Protocol | Wi-Fi, USB, Bluetooth |
| Remote Access and Control | WiFi, Type-C |
| Others | |
| OTA | Support OTA upgrade |
| Battery | 1050mAh |
| Charging Mode | USB Type-C |
| Battery Life | About 2h |
| Clamp Width | Minimum 131mm/Maximum 172mm |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -10°C~+50°C |
| Operating Humidity | 10%~90% (non-condensing) |
| Storage Temperature | -20°C~+60°C |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | 2G(EC60068-2-6)、25G(EC60068-2-29) |
| Weight and Dimensions | 130g |
| Authentication | CE/RoHS/DGM/WEEE/Measure |
| Packing List | Data cable×1, complete machine×1, quick start guide×1, packing list×1, quality certifcate×1 |
