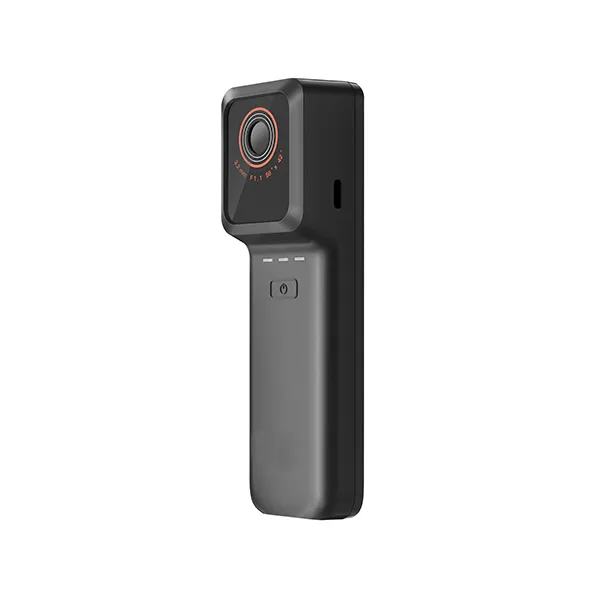

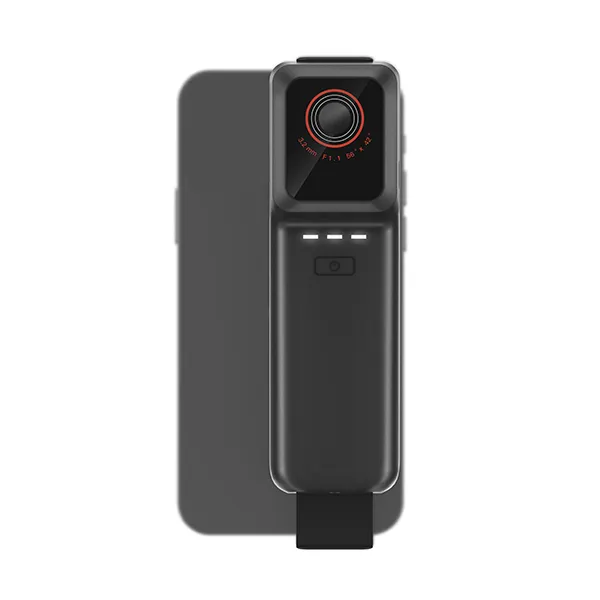

MIX2 AIR Wireless Thermal Camera for Smart devices

China Moneypro

Equipped with a high-sensitivity 256×192 resolution infrared detector, the IX2 AIR can be freely combined or separated with a smartphone according to the scenarios.
It supports wireless image transmission and operation.

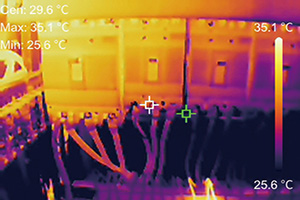

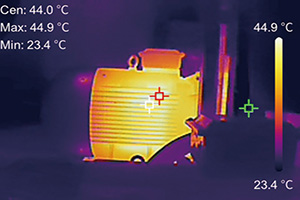

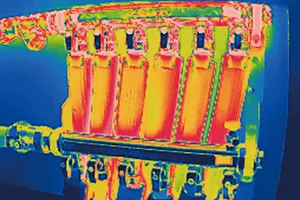

With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.

Feature

Wireless Measurement, Unlocking New Scenarios

1. Image transmission delay is kept under 300ms.
2.Enjoy 2 hours of battery life to maintain non-stop productivity.

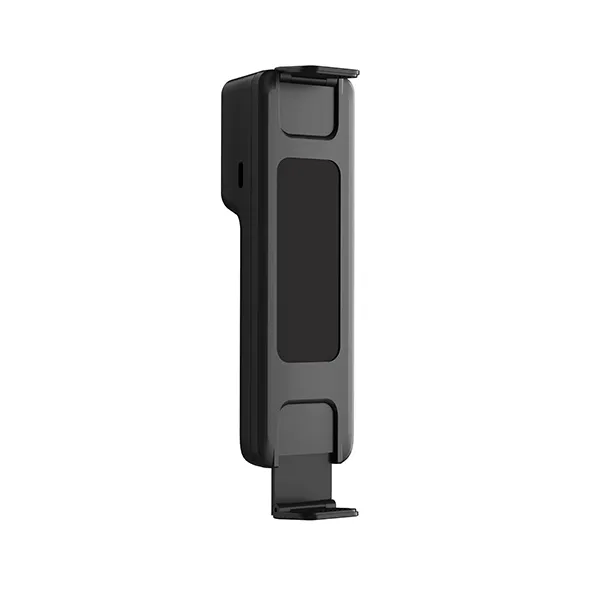

3.The aircraft features a built-in back clip and standard threaded holes, making it compatible with a wide range of accessories for easier target viewing from multiple angles.

Clear Thermal Images, Precise Temperature Measurement

Equipped with a compact, low-power 12μm 256×192 infrared detector.
Delivers 40mK professional-grade thermal sensitivity to detect even fine temperature variations, and supports an extended measurement range up to 550°C.
Offers 4 imaging modes and 7 color palettes, adaptable to various targets and thermal observation scenarios.

Hard-core Configuration, Easy to Use and Convenient

IP54-rated for water and dust resistance, with 2-meter drop protection. Slim, lightweight build for a comfortable in-hand feel.
Bluetooth-assisted faster Wi-Fi connection; OTA updates made easy via the mobile app.
Professional app supporting full-scenario use, including real-time and offline analysis of thermal imaging data.
*8-meter image transmission distance tested in unobstructed open-space conditions.

Specification

Thermal Imaging
Detector Type	Uncooled infrared detector
Infrared Resolution	256×192
Pixel Size	12μm
Spectral Band	7.5-14μm
NETD	＜40mK (25°C,F1.0)
Frame Rate	25 Hz
Lens Focal Length	3.2mm
FOV	56°×42°
IFOV	3.75mrad
Focusing Mode	Fixed focus
Minimum Imaging Distance	0.3m
Measurement Range	-20°C~+150°C, 100°C~550°C
Measurement Accuracy	±2ºC or ±2% of readings, whichever is greater
Imaging Display
Visible Light Camera	2 MP
Palettes	7 options
Image Mode	Infrared, visible, PlP, blending, detail enhancement
Temperature Width Stretch	Auto
Measurement and Analysis
App Analysis Function	Central temperature point/Highest temperature point/Lowest temperature point, 1 preset analysis template (support 3 custom points, 3 custom lines, and 3 custom frames)
System Functions
Communication Protocol	Wi-Fi, USB, Bluetooth
Remote Access and Control	WiFi, Type-C
Others
Battery	1050mAh
Charging Mode	USB Type-C
Battery Life	About 2h
Tripod Socket	UNC 1/4-20 interface for tripod
Operating Temperature	-10°C~+50°C
Operating Humidity	10%~90% (non-condensing)
Storage Temperature	-20°C~+60°C
Ingress Protection Rating	IP54
Shock and Vibration	2G(EC60068-2-6)、25G(EC60068-2-29)
Weight and Dimensions	132g
Authentication	CE/RoHS/DGM/WEEE/Measure
Packing List	Data cable×1, complete machine×1, quick start guide×1, packing list×1, quality certifcate×1
