MPS400 High Performance Thermal Camera
China Moneypro
The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels visible light camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts.
384x288IR resolution
1 ~10 continuously Digital Zoom
45mKNETD
IP54Encapsulation

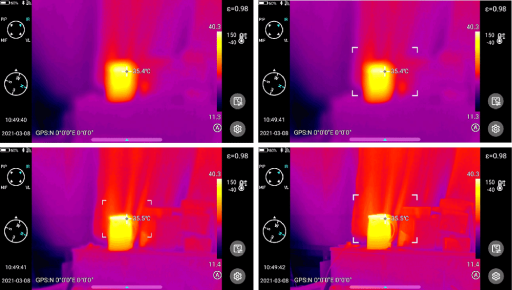

1 Fast Focus
Equipped with a next-generation focusing motor and a professional-grade laser rangefinder, it delivers smart one-touch autofocus in just 0.4 seconds.
Calibration-free Lenses
Extended lenses that work without calibration, adaptable to more use cases. Skip factory tuning—save both time and cost.

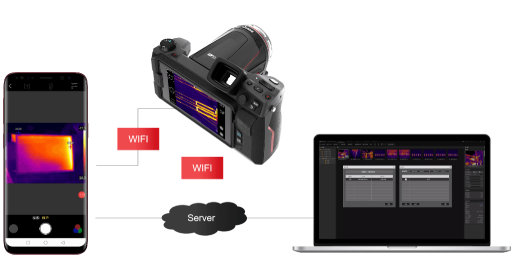

Cloud Service
Share images to the cloud at any time and from any location, enabling remote analysis and issue feedback.
Wi-Fi Connection Options:
- Mobile hotspot
- Wireless router
- 4G mobile communication (optional

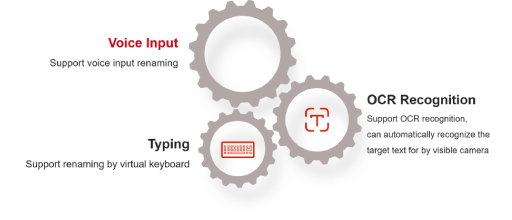

AI Voice Recognition
We support three input methods for customizable image naming, making it easier to remember and manage your files.

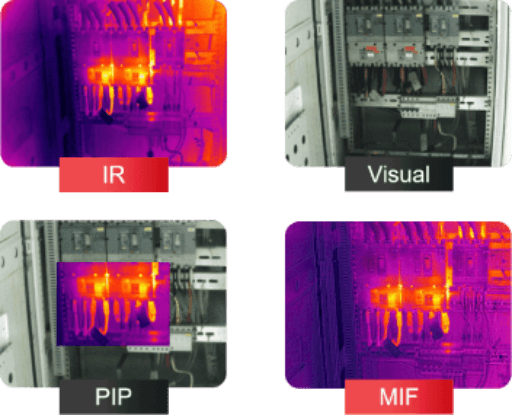

MIF Patent Technology of Multi-spectral Image Fusion (Patient No.: CN201510473667.8)
Four image modes are available: thermal (IR), visible light, picture-in-picture (PIP), and MIF. The exclusive MIF mode blends fine details from the visible light image into the thermal image, significantly enhancing your observation clarity and boosting workflow productivity.

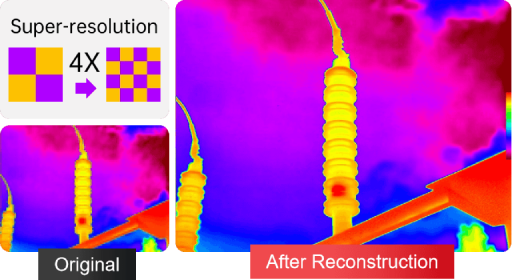

Image Super-resolution Reconstruction
The resolution of an infrared image can be enhanced through specialized algorithms. Using super-resolution reconstruction, the pixel count can be increased to four times that of the original, resulting in high-quality image output.
Technical Parameters
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14 m | |||
| Infrared resolution | 384 288@17 m | |||
| Super resolution | Yes, Upgrade to 768 576 | |||
| NETD | 45mK | |||
| Frame rate | 30Hz/9Hz | |||
| Focal length | 15mm | |||
| Field of view | 25 19 | |||
| IFOV | 1.13mrad | |||
| Min. object distance | 0.15m | |||
| D:S | 885:1 | |||
| Focusing mode | Automatic/Electric | |||
| Digital zoom | 1.1x to 10x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40 C to 150 C, 100 C to 800 C, Optional 700 C to 2000 C (High temperature lens is required) | |||
| Measurement accuracy | 2 C or 2%, whichever is greater | |||
| Analyzed target | 12 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (image and voice) | |||
| Parameter settings | Emissivity, reflected temperature, target distance, humidity, atmospheric temperature, optical transmittance | |||
| Others | Customized physical button | |||
| Image display | ||||
|---|---|---|---|---|
| Display screen | 5 LCD, touch screen, 1280 720 | |||
| Eyepiece | LCOS screen, 1280 960 | |||
| Image mode | IR, VIS, MIF and PIP | |||
| Color palettes | 8: White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical; Customized | |||
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual | |||
| Digital camera | 8MP | |||
| Functions | ||||
|---|---|---|---|---|
| Laser | Laser (Indication, Ranging) | |||
| Recording function | Photo and Video (infrared & visible light) | |||
| Cloud Services | Available | |||
| Storage and transmission | ||||
|---|---|---|---|---|
| Storage media | Built-in (64 GB) and SD card (64 GB and up to 128 GB) | |||
| Image storage | JPG with temp info | |||
| Video storage | MP4 format (without temp info) can be used to record audio synchronously; Irgd (with temp info) for temperature analysis | |||
| External interface | USB-C, DC (12V) , SD card slot, Network port, Micro HDMI, Tripod socket | |||
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | |||
| Cellular network | 4G module (optional) | |||
| Bluetooth | Available | |||
| Power system | ||||
|---|---|---|---|---|
| Battery type | Lithium-ion rechargeable battery | |||
| Operating time | 4 hours | |||
| Charging mode | The device can be charged through desktop charger after shutdown. | |||
| Charging time | 90% of full charge in 2.5 hours | |||
| Environmental parameters | ||||
|---|---|---|---|---|
| Working temperature | -20 C to 50 C | |||
| IP rating | IP54 | |||
| Certification | CE, FCC, RoHS, KCC, Anatel, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS | |||
| Physical parameters | ||||
|---|---|---|---|---|
| Hardware | Illuminator, Microphone, Speaker, Electronic Compass, GPS | |||
| Weight | 1.35kg (with battery) | |||
| Size | 206 145 135mm | |||
| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) | |||
| Standard | A device, Lens cover, Lithium-ion battery, Power adapter, Adapter plug, USB-A to USB-C Cable, Micro HDMI to HDMI Cable, RJ45 Ethernet Patch Cable, Quick Start Guide, Instructions, Data download card, SD card (64 GB) , Shoulder strap, Carrying case, Factory certificate | |||
| Options | Lithium-ion battery, Carrying bag, Desktop charger, Bluetooth headset, Expanded lens, 4G module, Tripod | |||
