China Moneypro
MEX10 Pro Handheld Thermal Camera
China Moneypro

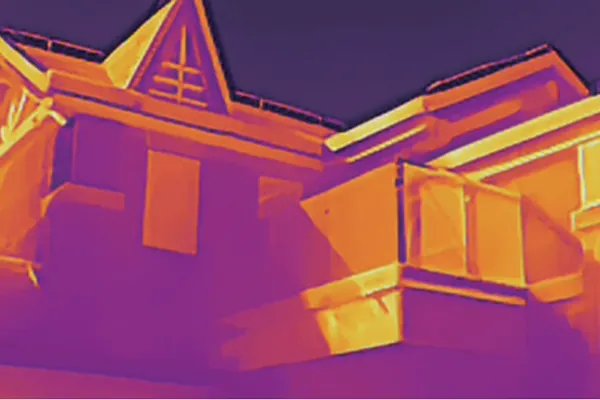

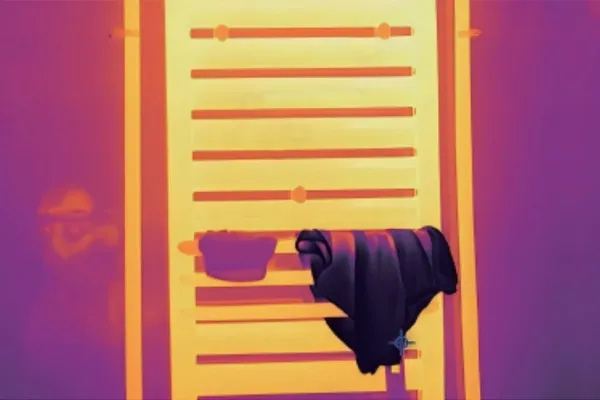

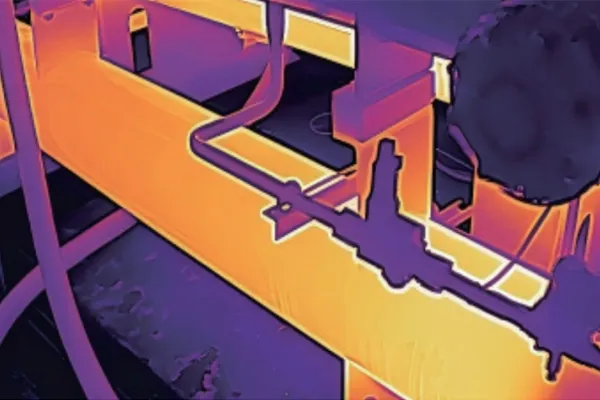

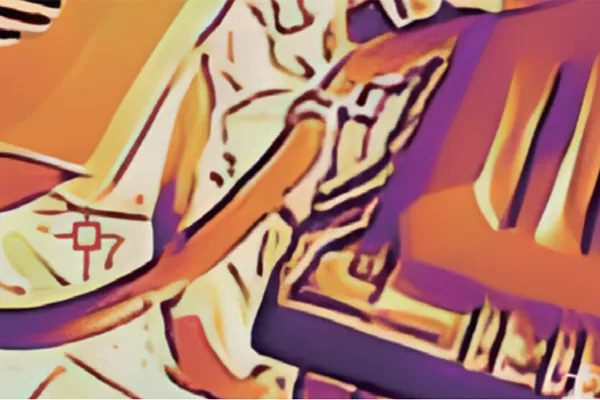

Provided with an infrared detector with a 160 120 resolution, EX10 Series employs real-time AI super-resolution to enhance its resolution to 320 240. Featuring a 2.8-inch display, video recording, UVC+WiFi screen projection and optional laser pointer, the device can be widely used in household maintenance, electrical maintenance, HVAC leak detection, automotive repairs and other fields.
Feature
High-Resolution Thermal Imaging, Powered by Real-Time AI Super-Resolution
160 120 infrared resolution, enhanced to 320 240 with real-time AI super-resolution
NETD as low as 40mK, capable of distinguishing subtle temperature differences of 0.04 C
8-inch display, presenting thermal images in detail
NETD as low as 40mK, capable of distinguishing subtle temperature differences of 0.04 C
8-inch display, presenting thermal images in detail
Conduct smart surveys with efficient and accurate target localization
Laser pointer function for quickly locating abnormal points
Wide measurement range from -20 to 550 , automatic range switching
Support video recording for post-analysis and documentation
Support UVC + Wi-Fi screen projection, compatible with PC and app software for further analysis
Wide measurement range from -20 to 550 , automatic range switching
Support video recording for post-analysis and documentation
Support UVC + Wi-Fi screen projection, compatible with PC and app software for further analysis
With professional-grade durability and offers unwavering reliability
Feature a quick start-up function and offers up to 10 hours of continuous operation
8GB of built-in memory, supporting large amounts of data storage
Rated IP54 for protection against dust and water, and built to withstand drops from up to 2 meters
8GB of built-in memory, supporting large amounts of data storage
Rated IP54 for protection against dust and water, and built to withstand drops from up to 2 meters
Specification
| Thermal Imaging | |
| Infrared Resolution | 160 120 |
| Super Resolution | 320 240 |
| Spectral Band | 8-14 m |
| NETD | 40mK |
| Frame Rate | 25 Hz |
| Lens Focal Length | 2.6mm |
| FOV | 40 30 |
| IFOV | 4.62 mrad |
| Focusing Mode | Fixed focus |
| Minimum Imaging Distance | 11cm |
| Measurement Range | -20~150 ; 100~550 ; auto switching |
| Imaging Display | |
| Display | 2.8-inch; 240 320 resolution |
| Visible Light Camera | 2 megapixels |
| Palettes | 9 options |
| Image Mode | Infrared, visible light, PIP, fusion |
| Temperature Width Stretch | Automatic/Manual |
| Image Storage | |
| Storage Medium | 8GB Internal Memory |
| Image File Format | JPEG |
| Video Recording and Transmission | |
| Communication Interface | USB2.0 |
| Video Recording | Standard MP4 video recording |
| Video Resolution | 240 320 |
| Video Transmission | UVC (with temperature data) + Wi-Fi (without temperature data) |
| Measurement and Analysis | |
| Measurement Accuracy | 2 C or 2% of readings (whichever is greater) |
| Measurement Unit | Celsius degree, Fahrenheit degree, Kelvin |
| Temperature Alarm | Supports (high and low temperature alarms) |
| Automatic lmage Capture Upon Alarm | Supports (with temperature data) |
| Color Alarm (lsotherm) | Above / Below / Between The image within the isotherm range is displayed in pseudo color, while other areas are shown in white-hot mode |
| Analysis Functions on the Device | Central point / Highest temperature point / Lowest temperature point / 6 custom points |
| Analysis Report | PDFforma trequiringsupportfromPCorAPPanalysissoftware |
| Supporting Software | PC (Infrared Analysis Software) or Mobile (iOS/ Android APP) |
| System Functions | |
| Connection Mode | USB2.0 Type-C |
| Laser Pointer | Support |
| Quick Start | support |
| WiFi | Support |
| Others | |
| Battery | 2750mAh lithium-ion battery |
| Charging Time | Above 90% within 75 minutes |
| Charging Mode | USB2.0; Type-C cable charging; Not support fast charging |
| Battery Life | 10 hours |
| Tripod Socket | Support |
| Operating Temperature | -20 C~ 50 C |
| Storage Temperature | -40 C~ 70 C |
| Extemal Interface | Type-C USB2.0 Tripod socket |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | shock: 25G (IEC60068-2-27); vibration: 2.5G (IEC60068-2-6); 2-meter drop |
| Weight and Dimensions | 265g 10g (including battery), 206.9 67 81.5mm |
| Packing List | Infrared thermal camera; user manual; USB cable; certicate of qualication; calibration certicate; wrist strap |
