ME1+Tool-like Thermal camera
China Moneypro
EasIR Series tool-like thermal camera provides two configuration options of 120×90 and 256×192 IR detectors. It adopts the new real-time IR-Perfclear technology to enhance the details and reduce noise of the image and present a clearer image in real time. Equipped with a series of professional functions such as 2MP visible light camera, video streaming and recording, WIFI, and OTA upgrade, etc., EasIR Series brings a clearer, more powerful and smoother work experience for users.
120 90@17 mIR Resolution
60mKNETD
-20 C~550 CMeasurement range
25Hz/9HzFrame rate

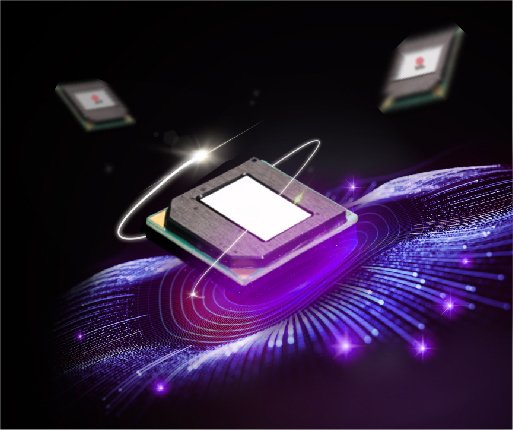

256×192/120×90@12 m infrared detector
Based on a custom-designed 12 μm uncooled infrared detector, the EasIR Series comes in two models, featuring infrared resolutions of 256×192 and 120×90. It is characterized by low power consumption and a compact size.

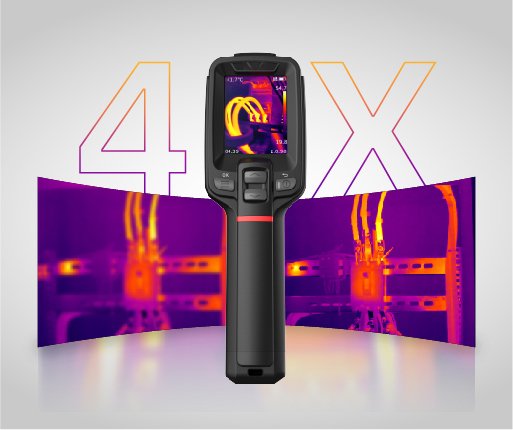

Real-time IR-Perfclear technology
The real-time IR-Perfclear technology surpasses the physical limitations of infrared detector sizes, achieving a fourfold enhancement in image quality through live computational optimization. Consequently, users benefit from markedly superior visuals, featuring improved detail resolution and outstanding edge-to-edge sharpness.
Wide measurement range, automatic switching
With a broad temperature measurement range from -20°C to 550°C, the EasIR Series automatically switches between the -20–150°C and 0–550°C sub-ranges as needed. This ensures accurate readings across diverse industrial applications with varying thermal demands.

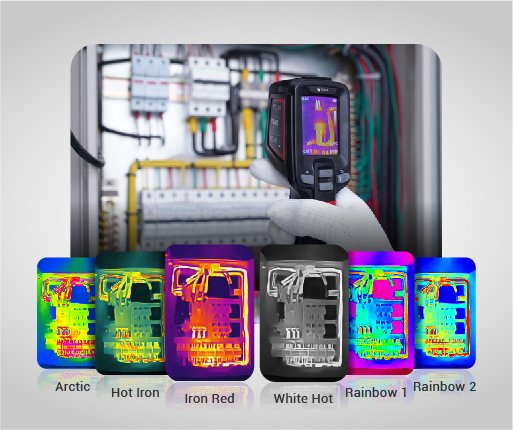

Infrared & visible light enriches the image display
Equipped with both a thermal imaging sensor and a visible light camera, the EasIR Series provides four distinct imaging modes and six color palettes, allowing users to observe and analyze heat distribution of targets more intuitively.

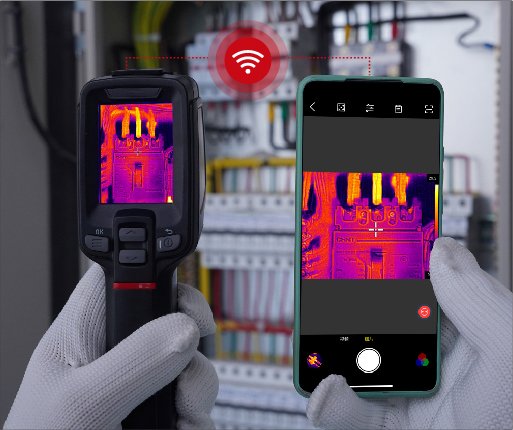

Convenient Sharing Via Mobile APP Connection
By connecting to Wi-Fi, users can access the phone’s photo gallery from a distance and conveniently share pictures using the mobile app. The EasIR Series further enables live operation through the app, making it possible to capture photos and record videos remotely.
Note: *This feature is not supported on the E1 model.
Video streaming
With a Wi-Fi link, data can be transmitted instantly to analysis software on a PC, allowing users to log information and carry out real-time analysis.
Technical Parameters
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14 m | |||
| Infrared resolution | 120 90@17 m | |||
| Super resolution | Support real-time super-resolution reconstruction, Upgrade to 240 180 | |||
| NETD | 60mK | |||
| Frame rate | 25Hz/9Hz | |||
| Focal length | 2.28mm | |||
| Field of view | 50 38 | |||
| IFOV | 7.46mrad | |||
| Min. object distance | 0.1m | |||
| D:S | 130:1 | |||
| Focusing mode | Focus-free | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -20 C to 150 C, 0 C to 550 C | |||
| Measurement accuracy | 2 C or 2%, whichever is greater | |||
| Analyzed target | Center spot; Three Fixed Areas: Small, Medium, Large (Alternative) | |||
| Alarm | Full screen temperature threshold alarm (image and flash) | |||
| Parameter settings | Emissivity, reflected temperature, target distance | |||
| Image display | ||||
|---|---|---|---|---|
| Display screen | 2.4″ LCD | |||
| Image mode | IR, VIS, MIF and PIP | |||
| Color palettes | 6: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1 | |||
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual | |||
| Digital camera | 2MP | |||
| Functions | ||||
|---|---|---|---|---|
| Laser | Laser Indication | |||
| Recording function | Photo and Video | |||
| Storage and transmission | ||||
|---|---|---|---|---|
| Storage media | Built-in (16 GB) | |||
| Image storage | JPG with temp info | |||
| Video storage | Supports real-time video streaming, video storage format in Irgd (with temp info) | |||
| External interface | USB-C, Tripod socket | |||
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | |||
| Power system | ||||
|---|---|---|---|---|
| Battery type | Rechargeable lithium-ion battery, non-removable | |||
| Operating time | 8 hours | |||
| Charging mode | USB-C charging; PC/portable charger; Capable of charging while using | |||
| Charging time | 90% of full charge in 2.5 hours | |||
| Environmental parameters | ||||
|---|---|---|---|---|
| Working temperature | -15 C to 50 C | |||
| IP rating | IP54 | |||
| Drop | 2m drop test | |||
| Certification | CE, FCC, RoHS, KC, EAC, FDA, Anatel, IP54, 2m drop test, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS | |||
| Physical parameters | ||||
|---|---|---|---|---|
| Hardware | Illuminator | |||
| Weight | 355g | |||
| Size | 194 61.5 76mm | |||
| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) | |||
| Standard | A device, Wrist strap, Power adapter, Adapter plug, USB-A to USB-C Cable, Data download card, Quick Start Guide, Warranty card, Inspection report | |||
| Options | Tripod | |||
