MH4 Intelligent Thermal Camera
China Moneypro
With a built-in self-developed high-sensitivity IR detector, a 8MP visible light camera, and 5 focusing modes, Hammer Series, the high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic “hammer” shape. 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets, far beyond the same level of products.
480×360 IR Resolution
8MP Visible Light
30Hz Frame Rate
OTA Upgrade
High-sensitivity IR Detector
A next-generation, domestically developed infrared focal plane detector featuring a 256×192 resolution, when combined with super-resolution reconstruction technology, enables high-quality imaging.

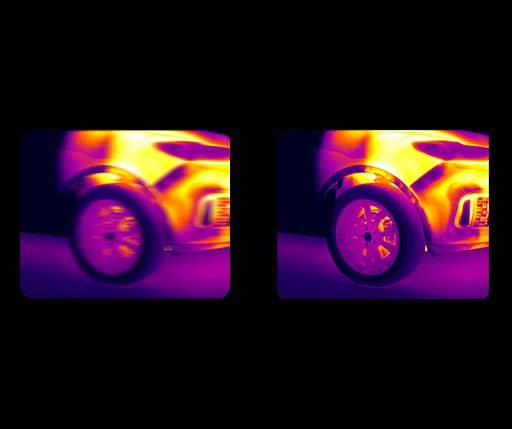

30Hz IRGD Frame Rate
We have IR video footage of raw data captured at frame rates of up to 30 Hz, suitable for taking screenshots to support temperature analysis.

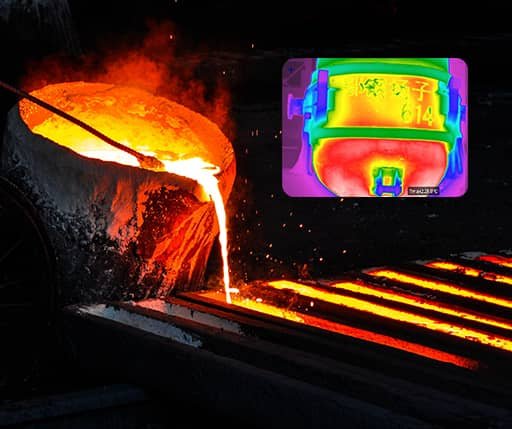

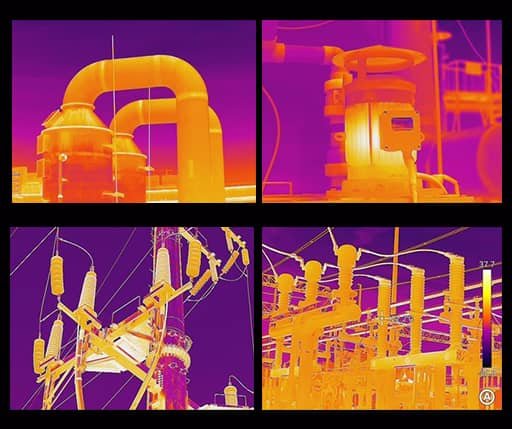

Wide-range Measurement with Rich Application Scenarios
Support automatic range switching: -40 to 150, and 0 to 650.

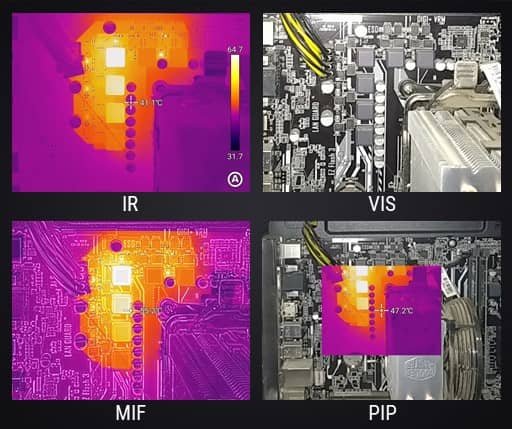

Real-time Presentation of Intuitive Temperature Data
IR, VL, MIF, and PIP modes deliver a visual representation of the target’s temperature information and automatically display the maximum, minimum, and center temperatures across the entire screen.
OTA Upgrade for the Latest System Version
The device can be enhanced via a network connection.
Technical Parameters
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector Resolution | Focal Plane Array, Uncooled Microbolometer, 480×360 pixels, non- interpolate | |||
| Minimum Spectral Range Coverage | 7.5 to 14 m | |||
| Image frame rate (on display) | 30 Hz, non-interlaced | |||
| Thermal Sensitivity at 30 C (NETD) | 0.03 C (30 mK) at 30 Hz image frame rate | |||
| Field of view (FOV) | 25 19 /24 18 | |||
| Instantaneous Field of View (IFOV) | 0.91 mrad | |||
| Minimum Focus Distance | 0.15 m | |||
| Focus | Manual / Automatic / Touch autofocus / Continuous autofocus | |||
| Laser Distance Meter | Calculates Distance to target for precisely focused | |||
| Laser Alignment | Position is automatically displayed on the infrared image | |||
| Visual | Built-in, 8 Mpixels, full color | |||
| Digital Zoom | 1.0 – 16x Continuous | |||
| Image Presentation Mode | IR (Infrared), VS (Visible Light), PIP (Picture in Picture) IR Resizable and movable, MIF (Auto blend) | |||
| Image Adjustment | Level Span Mode: Automatic, Semi-Automatic, Manual | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Emissivity correction | Variable from 0.01 to 1.0 (at 0.01 step) or selected from listings in pre-defined material list | |||
| Temperature Range | Support auto-switching: -40 C to 150 C, 0 C to 650 C, Optional 500 C to 2000 C (High temperature lens is required) | |||
| Accuracy | 2 C or 2% of reading, whichever is greater at 25 C ambient | |||
| Measurement mode | 12 movable spots, 12 areas, 12 lines (auto maximum and minimum temperature) | |||
| Atmospheric transmission correction | Input correction for humidity, temperature, and measuring distance | |||
| Reflected ambient temperature | Automatic, base on input of reflected temperature | |||
