MH6+Intelligent Thermal Camera
China Moneypro
With a built-in self-developed high-sensitivity IR detector with a maximum resolution of 640×480, a 13MP visible light camera, and 5 focusing modes, Hammer Series, the high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic “hammer” shape. 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets, far beyond the same level of products.
640x480IR Resolution
13MP Visible Light
30Hz Frame Rate
OTA Upgrade
High-sensitivity IR Detector
A next-generation, domestically developed infrared focal plane array detector featuring a 256×192 resolution, combined with super-resolution reconstruction technology to enable high-quality imaging.
30Hz IRGD Frame Rate
Raw-data infrared footage at frame rates reaching 30Hz, designed for capturing screenshots aimed at temperature evaluation.

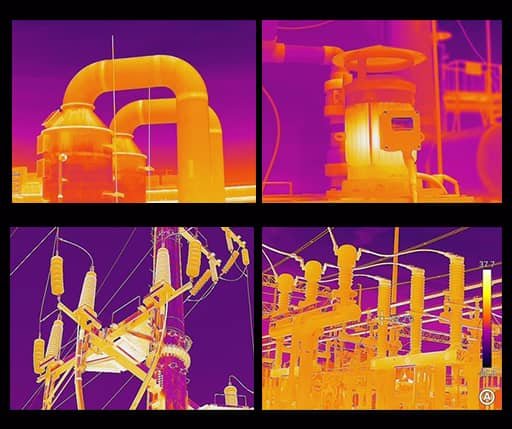

Wide-range Measurement with Rich Application Scenarios
Support automatic switchover across two temperature ranges: -40°C to 150°C and 0°C to 650°C.

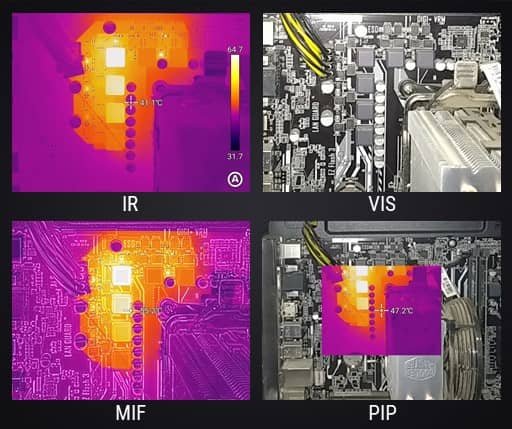

Real-time Presentation of Intuitive Temperature Data
IR, VL, MIF, and PIP modes offer a graphical display of the target’s temperature information, and automatically highlight the maximum, minimum, and center temperatures across the entire screen.
OTA Upgrade for the Latest System Version
The device can be enhanced via a network connection.
Technical Parameters
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector resolution | Focal Plane Array, Uncooled Microbolometer, 640×480 pixels, non-interpolate | |||
| Minimum Spectral Range Coverage | 7.5 to 14 μm | |||
| Image frame rate (on display) | 30 Hz, non-interlaced | |||
| Thermal Sensitivity at 30°C (NETD) | ≤0.03 °C (30 mK) at 30 Hz image frame rate | |||
| Field of view (FOV) | 24°×18° | |||
| Instantaneous Field of View (IFOV) | 0.66 mrad | |||
| Minimum Focus Distance | 0.15 m | |||
| Focus | Three focus systems: 1.One shot contrast/passive auto focus; 2.Laser distance auto focus; 3.Manual focus | |||
| Laser Pointer | Laser pointer including laser distance meter value | |||
| Visual | Visual image shall be linked with corresponding thermal image | |||
| Digital Zoom | 1.0 – 20x Continuous | |||
| Image Enhancement Mode | MIF (MSX Equivalent) | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Emissivity correction | Variable from 0.01 to 1.0 (at 0.01 step) or selected from listings in pre-defined material list | |||
| Temperature Range | -40°C to 2,000 °C | |||
| Accuracy | ±2°C or ±2% of reading ,whichever is greater at 25°C ambient | |||
| Measurement mode | 16 movable spots, 16 areas (auto maximum and minimum temperature) | |||
| Atmospheric transmission correction | Input correction for humidity, temperature, and measuring distance | |||
| Reflected ambient temperature | Automatic, base on input of reflected temperature | |||
| Image display | ||||
|---|---|---|---|---|
| Display screen | 4.3” Colour Display, Touch Screen LCD (Resolution 800×480 pixels) | |||
| Connection and Interfaces | ||||
|---|---|---|---|---|
| Interfaces | USB for connection between the camera and notebook computer | |||
| Wireless Connection | Bluetooth | |||
| Video Output | Display port to HDMI | |||
| Programmable buttons | 3 Buttons | |||
| Environmental parameter | ||||
|---|---|---|---|---|
| Operating temperature | -20 °C to 50 °C | |||
| Protection | IP54 | |||
| Shock | 25 G | |||
| Vibration | 2 G | |||
| Drop Test | 2 m | |||
| Weight | 1.2 kg (including battery) | |||
| Warranty | 1 Year | |||
| Image Storage | ||||
|---|---|---|---|---|
| Storage media | Local storage (64 GB) and external SD card (64 GB and up to 256 GB) | |||
| File Format | ||||
|---|---|---|---|---|
| Thermal | 24 bit radiometric IR digital image | |||
| Power System | ||||
|---|---|---|---|---|
| Battery | Rechargeable battery, at least 4 hours operation for each battery | |||
| Accessories | ||||
|---|---|---|---|---|
| Accessories | 60 seconds voice annotation with each image file, Video output port, Communication cable, Standard lens (IFOV not more than 0.66 mrad), One (1) set battery charger and three (3) sets battery, AC power adapter, single phase 230 VAC, 50 Hz, Data analysis software, Instruction manual in English and Thai, Other accessories according to manufacturer’s design and auxiliary equipment necessary to complete | |||
| Data Analysis and Reporting Software | ||||
|---|---|---|---|---|
| Software | Data analysis and reporting software comprising useful function for Windows operating system with : thumbnail image viewer, support drag and drop transfer of selected images from memory card to computer, independent emissivities correction variable from 0.01 to 1.0 select from listings in pre-defined material list (at 0.01 step), spot tools, area tools, line tools, with maximum, minimum and average temperature, Delta T calculation function, voice note replay, wizard driven report generation, the report can be modified by user | |||
