MPS610 High Performance Thermal Camera
China Moneypro
The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels visible light camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts.
640x480Infrared module
1 ~35 continuouslyDigital Zoom
30mkNETD
IP54Encapsulation
1 Fast Focus

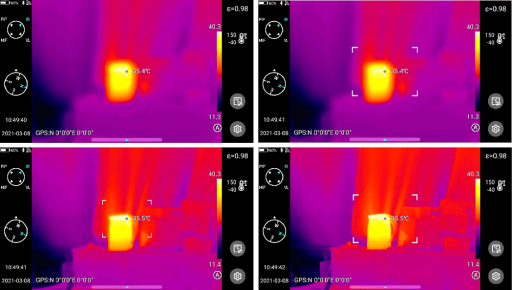

Featuring a next-generation focusing motor and a precision laser distance sensor, it delivers one-touch intelligent autofocus in just 0.4 seconds.

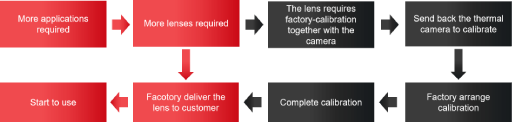

Calibration-free Lenses
No-calibration lens extension capability adapts to more applications, eliminating manufacturing setup for enhanced efficiency and lower cost.

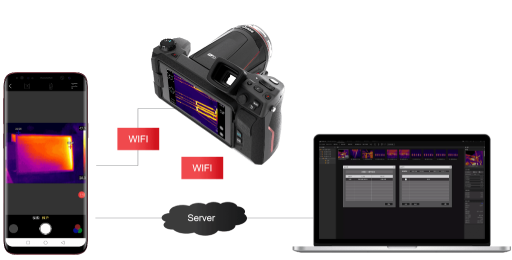

Cloud Service
Upload images to the Cloud from anywhere, at any moment, enabling remote diagnostics and issue reporting. Network connection options: 1. Portable hotspot 2. Wireless access point 3. 4G cellular network (optional)

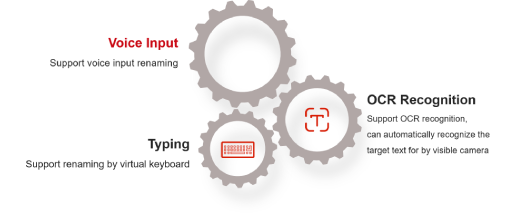

AI Voice Recognition
Offers three ways to input custom image names, making it easier to remember and organize files.
MIF Patent Technology of Multi-spectral Image Fusion (Patient No.: CN201510473667.8)

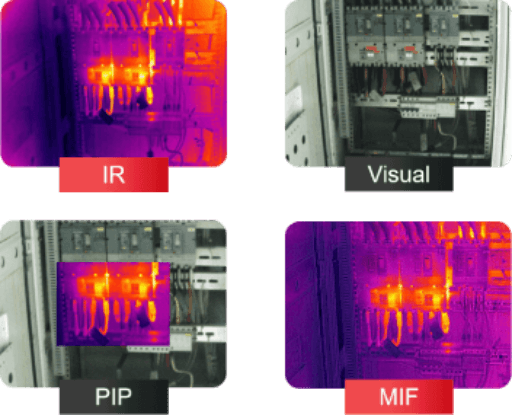

Four imaging modes are available: IR, visible light, PIP, and MIF. The exclusive MIF mode allows visible light details to be blended onto thermal images, greatly enhancing your viewing experience and operational productivity.

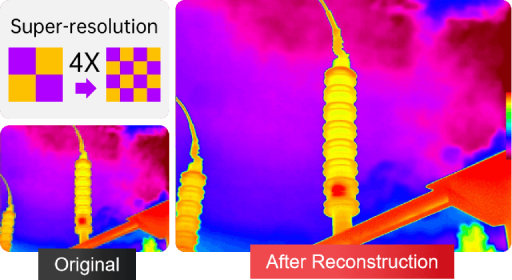

Image Super-resolution Reconstruction
Using specialized algorithms, the level of detail in an image can be enhanced. Through super-resolution reconstruction, the pixel resolution of an infrared image can be scaled up to four times its original size, producing superior image quality.
Technical Parameters
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, Focal Plane Array (FPA), uncooled microbolometer | |||
| Infrared resolution | 640×480 @ 17 m, non-interpolate | |||
| Super resolution technology | Yes, Upgrade to 1280×960 | |||
| Wavelength range | 7.5 to 14 m | |||
| Focal length | 25 mm | |||
| Field of view | 25 x 19 | |||
| Minimum object distance | 0.3 m | |||
| D:S (IFOV) | 1470:1 (0.68 mrad) | |||
| NETD at 30 C (at 30 Hz image frame rate) | 30mK | |||
| Infrared frame rate (on display) | 30 Hz, non-interlaced | |||
| Focusing mode | Automatic and Electric (Manual) | |||
| Digital zoom | 1.1x to 35x | |||
| Shot recognition | Auto / Manual | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40 C to 150 C, 100 C to 800 C, Optional 700 C to 2000 C (High temperature lens is required) | |||
| Measurement accuracy | 1 C or 1%, whichever is greater | |||
| Analyzed target | 20 in total (Spot/Line/Area), Auto maximum and minimum temperature | |||
| Tracking / Alarm | Full screen maximum, minimum and average temperature tracking; The maximum, minimum and average temperature tracking of analyzed target; full screen temperature threshold alarm (image and voice) | |||
| Isothermals | Available | |||
| Temperature measuring parameters | Emissivity, reflected temperature, target distance, humidity, atmospheric transmittance, optical transmittance | |||
| Emissivity Correction | Variable from 0.01 to 1.0 or select from listings in preCdefined materials list (at 0.01 step) | |||
| Reflected ambient temperature | Automatic, base on input of reflected temperature | |||
| Image display | ||||
|---|---|---|---|---|
| Display screen | 5 LCD | |||
| Eyepiece (Viewfinder for outdoor inspection) | Color built-in Viewfinder : 1, 280 960 LCOS screen | |||
| Digital camera | 13 MP, full color | |||
| Image mode | IR, VIS, MIF and PIP | |||
| Image adjustment | Automatic, semi-automatic, manual | |||
| Color palettes | White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Customized | |||
| Storage and transmission | ||||
|---|---|---|---|---|
| Storage media | Local storage (64 GB) and SD card (64 GB and up to 128 GB) | |||
| Image storage format | 24 bit radiometric IR digital image | |||
| Visual image | Visual image shall be linked with the corresponding thermal image | |||
| Video storage with temperature information | Irgd for temperature analysis | |||
| External interface | USB Type-C, DC (12V) , SD card slot, Network port, Micro HDMI, UNC “-20 (Tripod mounting) | |||
| Audio | Recording and playback through microphones and speakers respectively | |||
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | |||
| GPS | Available | |||
| Bluetooth | Available | |||
| 4G / 5G | 4G module (Optional) | |||
| Power system | ||||
|---|---|---|---|---|
| Battery type | Lithium-ion rechargeable battery | |||
| Battery working time | 3 hours | |||
| Power management | Timed shutdown and sleep mode | |||
| Charging mode | The device can be charged through desktop charger after shutdown. | |||
| Environmental parameters | ||||
|---|---|---|---|---|
| Weight | 1.35 Kg (with battery) | |||
| Working temperature | -20 C to 50 C | |||
| Storage temperature | -40 C to 70 C | |||
| IP rating | IP54 | |||
| Certification | CE, FCC, ROHS, KCC, Anatel, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS | |||
| Complete With | ||||
|---|---|---|---|---|
| Accessories | Sixty (60) seconds voice annotation with each image file, Video output port, Communication Cable, Standard Lens and Telephoto (IFOV for Telephoto lens not more than 0.4 mrad) One (1) set battery charger and two (2) sets battery ; Optional extra batteries, AC Power Adaptor, single phase, 230 V AC, 50 Hz, Transport Case, Instruction Manual in English and Thai Other accessories according to manufacturer’s design and auxiliary equipment necessary to complete. | |||
| Data Analysis and Reporting Software | ||||
|---|---|---|---|---|
| Software | Comprising useful function for Windows operating system, with Thumbnail image viewer, support drag and drop transfer of selected images from PC card to computer independent emissivities correction variable from 0.1 to 1.0 or select from listings in pre C defined materials list (at 0.01 step), spot tools, area tools and line tools with maximum, minimum and average temperature, and Delta T calculation function, voice note replay, wizard driven report generation, the report can be modified by user | |||
