Thermal Binoculars vs Monoculars

Selecting the appropriate form factor between thermal binoculars vs monoculars requires a rigorous analysis of mission profiles, human factors engineering, and electro-optical specifications. For B2B system integrators and defense procurement officers, the decision extends beyond simple magnification preference. It involves evaluating VOx microbolometer performance, power budget allocation, and the physiological impact on the operator during sustained surveillance operations.

This technical guide analyzes the architectural differences, integration challenges, and performance metrics defining these two distinct categories of infrared imaging systems.

The Physiology of Observation and Eye Fatigue

The primary distinction between binocular and monocular systems lies in how they interface with the human visual cortex. Understanding this physiological interaction is critical for specifying equipment for long-duration missions.

Binocular Summation Advantages

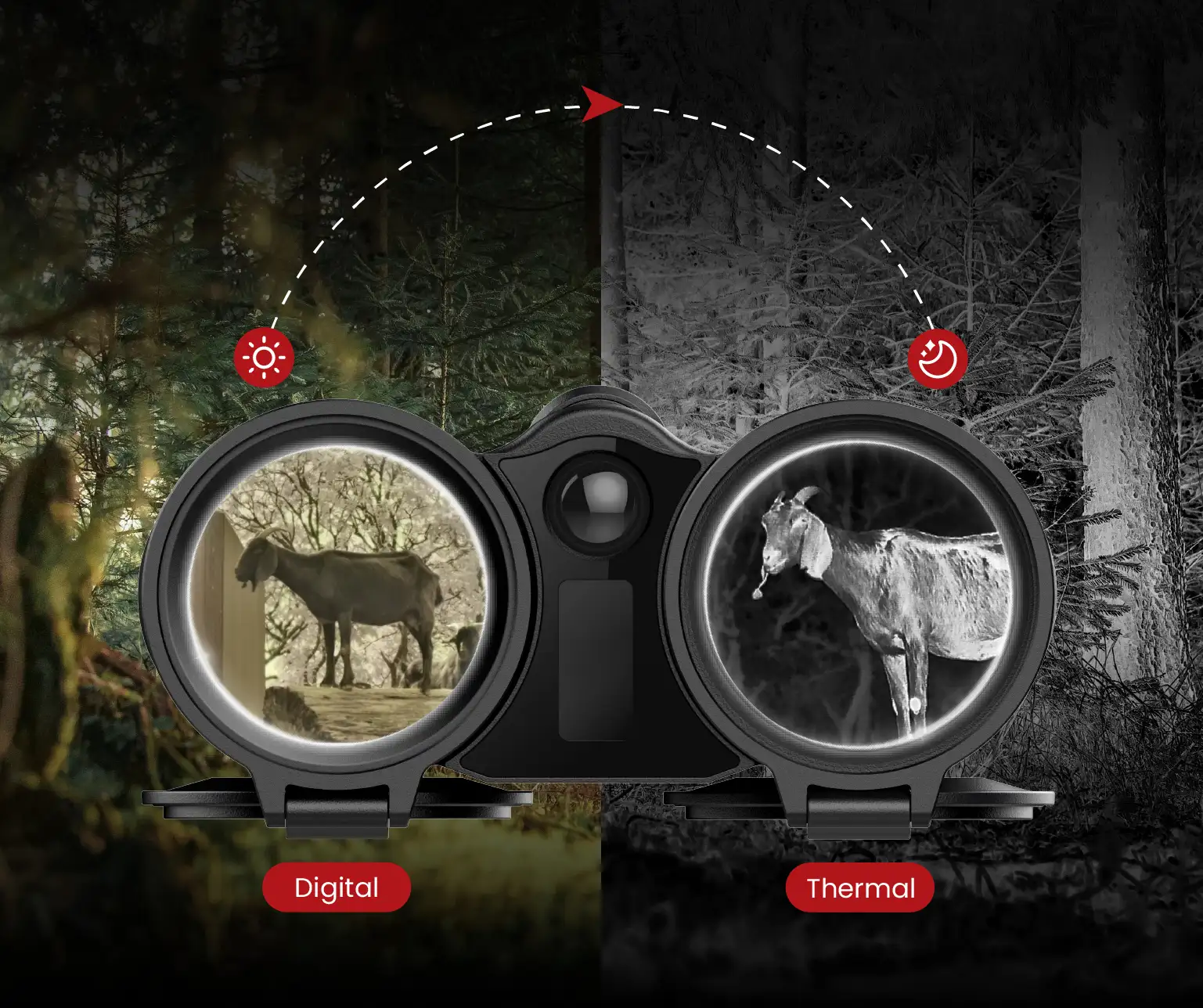

Thermal binoculars leverage a phenomenon known as binocular summation. When both eyes perceive a target, the brain composites the signals, effectively increasing the signal-to-noise ratio (SNR) by a factor of roughly 1.4. In low-contrast thermal scenes—such as a target with a low Delta-T against a background—this neural processing allows operators to detect threats faster and with greater accuracy than with a monocular system.

Furthermore, keeping both eyes open reduces muscular strain. Monocular operators often squint the unassisted eye or suffer from sympathetic eye movements, leading to rapid onset headaches and visual fatigue during missions exceeding 30 minutes.

Monocular Situational Awareness

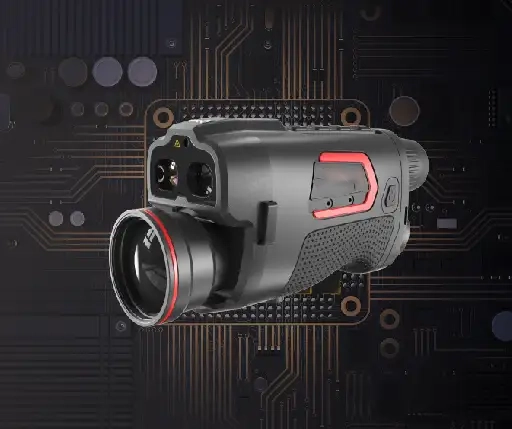

Conversely, thermal imaging monoculars are superior for maintaining peripheral situational awareness. By occupying only one eye, the operator retains natural night vision in the other eye. This is a critical requirement for mobile infantry or law enforcement units moving through variable lighting conditions. The “unaided” eye scans the immediate environment for obstacles, while the “aided” eye scans the thermal spectrum for heat signatures.

Technical Architecture and Sensor Integration

For system integrators, the internal architecture dictates the cost, weight, and data capabilities of the device. We must distinguish between three common configurations found in the market.

1. True Monocular: Single Objective Lens, Single FPA (Focal Plane Array), Single Eyepiece.
2. Bi-Ocular: Single Objective Lens, Single FPA, Dual Eyepieces. This splits the image from one sensor to two displays. It provides the comfort of binoculars but lacks stereoscopic depth perception.
3. True Binocular: Dual Objective Lenses, Dual FPAs, Dual Eyepieces. This setup provides true stereoscopic vision and depth perception but doubles the cost of the core components.

SWaP Analysis Size Weight and Power

SWaP (Size, Weight, and Power) optimization is often the deciding factor for man-portable systems. High-performance uncooled VOx microbolometers (typically 640×512 resolution, 12μm pixel pitch) require significant processing power, primarily for Non-Uniformity Correction (NUC) and image enhancement algorithms.

Power Consumption Metrics

Thermal binoculars inevitably consume more power. Driving dual OLED or LCOS micro-displays (typically 1024×768 or higher) increases the load on the power management unit (PMU). A standard thermal monocular might operate for 6-8 hours on a single 18650 battery pack, while a binocular with equivalent sensor specs may struggle to reach 5 hours without a larger, heavier battery pack.

For integrators designing helmet-mounted systems, the weight penalty of binoculars is also significant. A typical ruggedized thermal monocular weighs between 250g and 350g. Binoculars often exceed 600g-800g, creating a cantilever effect on the helmet that causes neck strain.

Detection Range and Field of View Characteristics

The trade-off between Field of View (FOV) and Detection Range applies to both form factors, but usage patterns differ.

Long-Range Surveillance (Binoculars): Binoculars are favored for long-range integrated systems using high focal length lenses (50mm, 75mm, or 100mm Germanium). The stability provided by a two-handed grip or tripod mount, combined with binocular summation, makes them ideal for identifying targets at distances exceeding 1,500 meters. The narrower FOV is acceptable because the device is used for targeted observation rather than scanning.

Short-to-Mid Range Scanning (Monoculars): Monoculars often utilize wider lenses (19mm to 35mm) to maximize FOV. This supports rapid scanning of rooms, perimeters, or trails. System integrators often pair handheld monoculars with weapon-mounted thermal sights, allowing the operator to scan with the lightweight monocular and engage with the weapon sight.

Comprehensive Technical Comparison Matrix

Feature Specification	Thermal Monocular	Thermal Binocular (Bi-Ocular)	True Thermal Binocular
Sensor Architecture	Single FPA	Single FPA	Dual FPA
Depth Perception	None (2D Image)	None (2D Image)	True Stereoscopic (3D)
Eye Fatigue	High (One eye squint)	Low (Natural viewing)	Low (Natural viewing)
Power Consumption	Low (< 1.5W typical)	Medium (< 2.5W typical)	High (< 4.0W typical)
Typical Weight	250g – 400g	600g – 900g	800g – 1.2kg
Situational Awareness	High (One eye open)	Low (Tunnel vision)	Low (Tunnel vision)
Cost Index	1.0x (Baseline)	1.8x – 2.2x	3.5x – 4.0x

Integration Considerations for EO IR Systems

When integrating these devices into broader C4ISR (Command, Control, Communications, Computers, Intelligence, Surveillance, and Reconnaissance) networks, data connectivity is paramount.

Video Output and Latency

Modern /thermal-cores/ used in both binoculars and monoculars now frequently offer USB-C or Wi-Fi streaming capabilities. However, for tactical integration, latency is the enemy. Integrators should prioritize devices offering raw analog video out (CVBS) or low-latency digital protocols (SDI/HDMI) over compressed wireless streams. Binoculars, having more internal volume, often accommodate more robust I/O ports compared to the space-constrained chassis of a monocular.

Laser Rangefinder Integration

Thermal binoculars are the preferred platform for integrated Laser Rangefinders (LRF). The larger chassis allows for the inclusion of the LRF module and the necessary optical alignment without significantly compromising ergonomics. Monoculars with LRFs exist but often suffer from balance issues or reduced range capabilities due to size constraints.

Conclusion and Strategic Recommendation

The choice between thermal binoculars vs monoculars depends strictly on the operational profile. For high-mobility units requiring light discipline and situational awareness, the monocular is the superior engineering choice. For static observation posts, perimeter security, and long-range reconnaissance where detection < NETD 25mK is critical, the thermal binocular (or bi-ocular) provides the necessary optical stability and physiological comfort.
