MS070TB Two-Axis Tri-Light Pod

China Moneypro

The MS070TB miniature optoelectronic pod consists of long and short focal length visible light cameras (7x hybrid zoom), a laser rangefinder, a two-axis servo-stabilized platform, and an image processing unit (autonomous recognition and tracking). It features ultra-small size, ultra-light weight, high precision, and low latency, and can be applied to small and micro UAVs to perform reconnaissance and surveillance tasks on target areas.

I. Product Introduction

The electro-optical pod utilizes a visible light camera to detect, identify, and track ground targets, while outputting real-time visible light video for mission personnel to view.

This miniature pod has been adapted to several mainstream flight control platforms in China, allowing for seamless integration with flight control systems. It can also be connected to our ViewControlStudio display and control software platform, helping the overall unit rapidly complete UAV system development.

The pod is primarily used in applications such as reconnaissance, guidance, border patrol, personnel search and rescue, and forest fire prevention.

I. Photos of the actual product

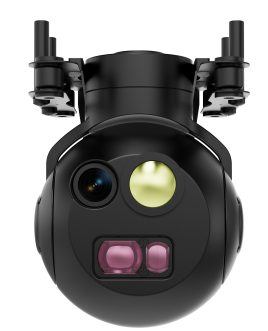

Figure 1 Product Image

II. Product Functions

a) Equipped with self-testing and fault reporting capabilities;

b) Capable of visible light band detection and outputting visible light images;

c) Features free movement along both azimuth and pitch axes;

d) Able to receive commands from the control station and execute pod operations accordingly;

e) Supports manual search, scanning, centering, automatic tracking, and data indexing functions;

f) Provides carrier disturbance isolation and line-of-sight stabilization;

g) Capable of recognizing typical targets, including people and vehicles;

h) (Optional) Supports multi-target tracking;

i) Includes manual target locking/unlocking functionality;

j) Offers automatic target tracking with resistance to natural interference;

k) Features memory tracking, enabling rapid target reacquisition after brief loss;

l) Allows adjustment of the gate size;

m) Supports switching of tracking points;

n) Enables bidirectional communication with the ground station via RS422/100 Mbps Ethernet, outputting visible light images, system and camera operating status, optical axis position, and line-of-sight angular velocity;

o) Provides photo and video recording functions;

p) Includes manual drift correction capability.

III. Mounting Platform

Here’s a revised version that improves clarity and engagement:

“Compact rotary-wing drones, fixed-wing UAVs, loitering munitions—and other cutting-edge aerial systems.”

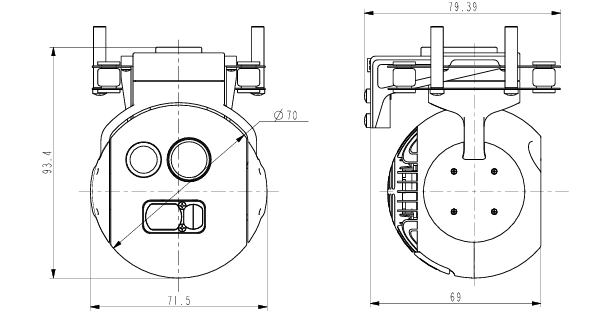

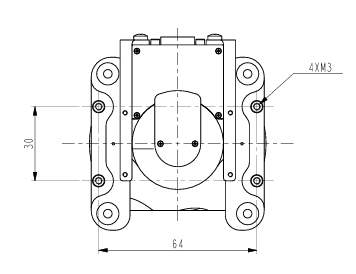

IV. Main Technical Parameters

model	S070TB
Wide-angle visible light camera
focal length	4.45mm
Long-range visible light camera
focal length	16mm
Video resolution	1920*1080
Laser rangefinder
wavelength	905nm
Ranging frequency	1Hz adjustable
Image processing components
Tracking frame rate	50Hz
Image output	RTSP/UDP/RTMP are selectable, and the bitrate can be set from 100kbps to 6Mbps.
System Indicators
Image tracking	Automatically track selected target
Power supply voltage	14V to 28VDC
interface
Control Interface	RS422
Video interface	100M network
External plug-ins	J30-15ZKP
Image format	JPG format
Video format	AVI format
