MS070DA Two-Axis Dual-Light Pod

China Moneypro

The MS070DA miniature optoelectronic pod consists of an uncooled infrared thermal imager, a visible light camera, a two-axis servo-stabilized platform, and an image processing component (autonomous recognition and tracking). It features ultra-small size, ultra-light weight, high precision, and low latency, and can be applied to small and micro UAVs to perform day and night reconnaissance and surveillance missions over target areas.

I. Product Introduction

The optoelectronic pod integrates an uncooled infrared thermal imager and a visible light camera, enabling all-weather detection, identification, and tracking of ground targets. It simultaneously outputs real-time infrared and visible light video for mission personnel to monitor.

This miniature pod has been adapted to several mainstream flight control platforms in China, allowing seamless integration with flight control systems. It can also be connected to our ViewControlStudio display and control software platform, helping the overall unit rapidly complete UAV system development.

The optoelectronic pod is primarily used in scenarios such as reconnaissance, targeting guidance, border patrol, search and rescue operations, and forest fire prevention.

I. Photos of the actual product

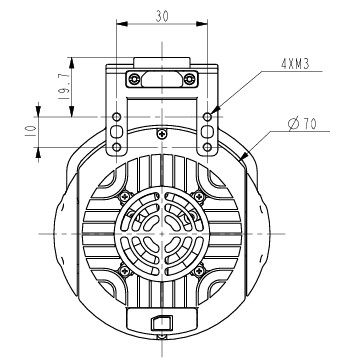

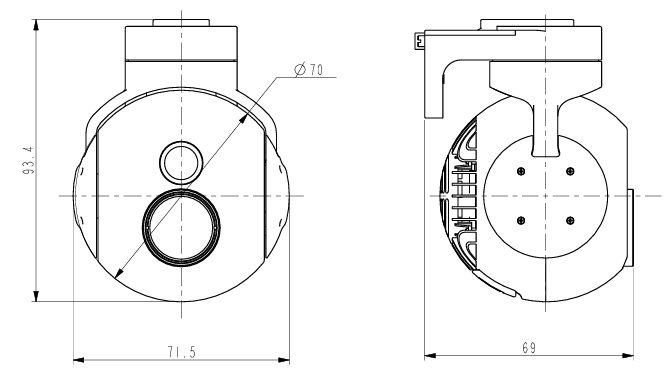

Figure 1 Product Image

II. Product Functions

a) Possesses self-testing and fault reporting capabilities;

b) Supports detection in both long-wave infrared and visible light bands, and can output infrared and visible light images;

c) Capable of two-axis (azimuth and pitch) free movement;

d) Able to receive commands from the control station and execute pod operations accordingly;

e) Equipped with carrier disturbance isolation functionality to stabilize the line of sight;

f) Features target locking/unlocking; when a target is locked, the pod outputs an image with a tracking frame;

g) Includes automatic target tracking, capable of tracking targets autonomously while resisting natural interference;

h) Features memory tracking, enabling rapid target recapture after brief loss;

i) Supports gate size adjustment;

j) Allows switching of tracking points;

k) Supports bidirectional communication with the control station via RS422/100Mbps network, and can output infrared images, visible light images, system working status, camera working status, and optical axis position information;

l) Equipped with photo and video recording functions;

m) Capable of detecting typical targets (e.g., people, vehicles).

III. Mounting Platform

Miniature rotary-wing drones, fixed-wing drones, loitering munitions, etc.

IV. Main Technical Parameters

model	S070DA
Infrared thermal imager
Detector type	Uncooled focal plane detector
Lens focal length	25mm
Visible light camera
focal length	16mm
Video resolution	1920*1080
Image processing components
Automatic recognition	Capable of automatically recognizing people and vehicles with a target count of 32.
Automatic tracking	Target size 16 16
Tracking frame rate	50Hz
Image output	RTSP/UDP/RTMP are selectable, and the bitrate can be set from 100kbps to 6Mbps.
System Indicators
Image tracking	Automatically track selected target
Power supply voltage	14V to 28VDC
interface
Control Interface	RS422
Video interface	100M network
External plug-ins	J30-15ZKP
Image format	JPG format
Video format	AVI format
