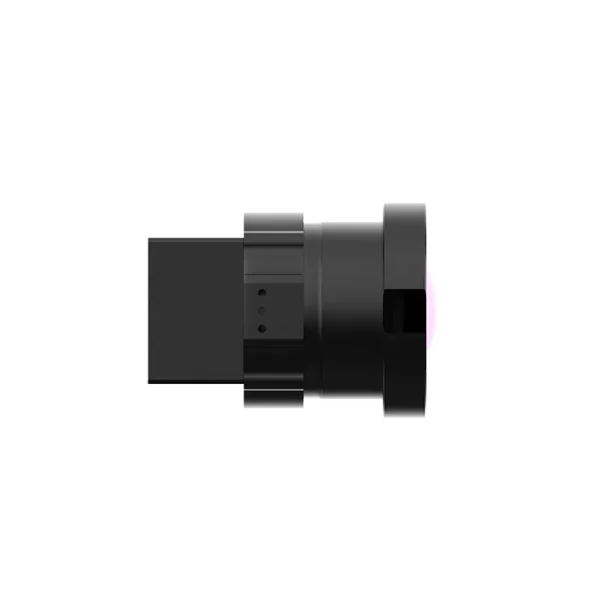

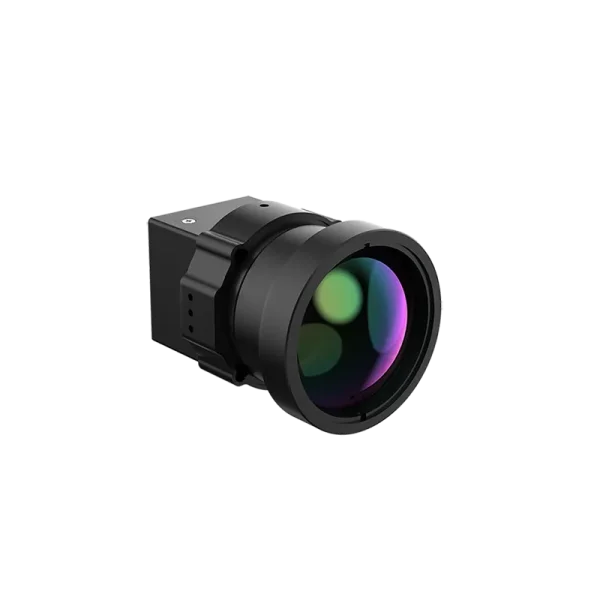

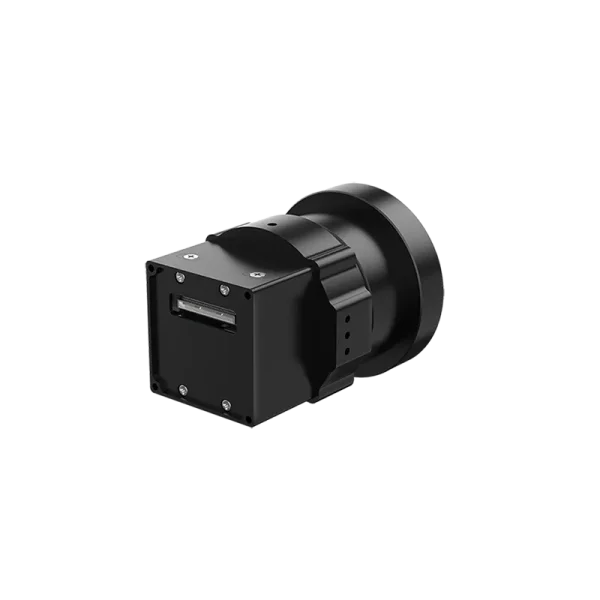

Turing ML1280 Uncooled Infrared Module (Imaging)
China Moneypro
The Turing ML1280 uncooled infrared module is a new generation of module components designed for expert users. The use of self-developed detectors has taken an important step forward in miniaturization and lightweighting, making us take a lead. With the advantage of large array imaging of 1280, the size is only 29mm 29mm, and the weight is only 24.5g. With a professional development team, it is the best choice for meeting the lightweight development needs.
Feature
Industry Solutions of Minimum 1,280
- Equipped with a self-developed 12 m VOx uncooled infrared detector. Resolution is 1,280 1,024, size is 29 29, and weight is 24.5g.
Excellent Performance
- The mega-pixel resolution, combined with high-quality image algorithms, highlights details.
- Convenient for users to find targets and monitor details
Rich Selection
- With multiple lenses optional, it can flexibly adapt to multiple scenarios.
- Dedicated support to help users choose the right lens for themselves, efficient and convenient.
Specification
| Category | Parameter | Specification |
|---|---|---|
| Performance Indicators | Detector Type | Uncooled VOx infrared detector |
| Resolution | 1280 × 1024 | |
| Detector Frame Rate | 30 Hz | |
| Pixel Pitch | 12 μm | |
| Spectral Band | 8~14 μm | |
| NETD | ≤50 mK @ 25°C, F#1.0 | |
| Image Adjustment | Brightness/Contrast Adjustment | Manual / Automatic / Linear |
| Polarity | Black-hot / White-hot | |
| Palette | Supported | |
| Image Processing | TEC-less temperature control algorithm, digital filtering noise reduction, digital detail enhancement | |
| Mirroring | Horizontal / Vertical / Diagonal | |
| Power Supply | Power Supply Range (typical) | 4.0~5.5 V DC (4.1~5.5 V DC supported by user extension components) |
| Typical Power Consumption @25°C (without extension) | 0.9 W | |
| Interface | Digital Video | 14-bit or 8-bit LVCMOS / MIPI, BT.1120 |
| Extension Components | USB 3.0 | |
| Control Interface | UART (3.3 V) | |
| Temperature Measurement Performance | Measurement Range | Not supported |
| Measurement Accuracy | Not supported | |
| Measurement Tool | Not supported | |
| Physical Characteristics | Dimensions (without lens and extension components) | 29 × 29 × 18.9 mm |
| Weight (3.2 mm, without extension components) | 24.5 g | |
| Lens Model | 10 mm, 35 mm, 50 mm, 75 mm | |
| Environment Adaptability | Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C | |
| Humidity | 5~95%, non-condensing | |
| Product Certification | Certification | RoHS 2.0 |
Application Scenariosa
Industrial Temperature Measurement
Security Monitoring
UAV Pod
Machine Vision
