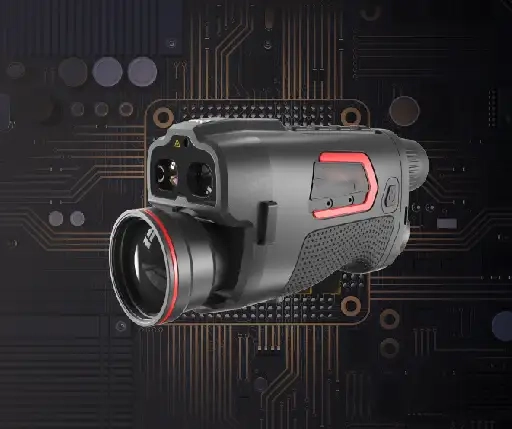

MTL630 Multispectral Fusion Thermal Monocular
China Moneypro
The TL Series is the first multispectral fusion thermal monocular of Guide Outdoor whose all-in-one design meets the needs of all-day and all-weather observation. Equipped with a 12 m high-end thermal sensor, 1920 1080 CMOS sensor and 1920 1080 AMOLED display, the TL Series offers significantly sharp and richly contrasted images with an integrated laser rangefinder with up to 600m accurate ranging. Integrated with a built-in GPS, laser rangefinder, and gyroscope, target latitude and longitude, target distance, and device angle information can be obtained for quick aiming.
Day & Night UseThermal+Digital
640 480@12 mIR Resolution
1920 1080 AMOLED Display
OTA Upgradefor the latest firmware
All-in-one Design for All-day and All-weather Observation

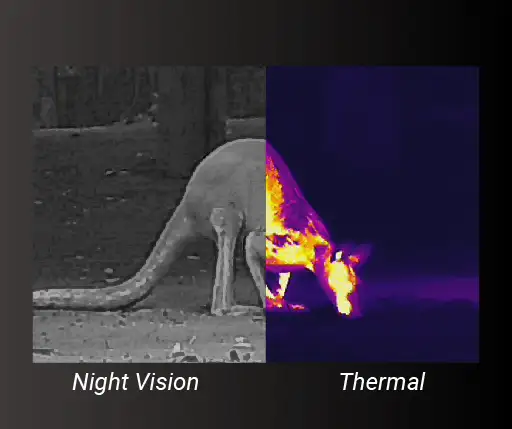

With both thermal and night vision capabilities, this system ensures rapid search and accurate target identification, whether in daylight or complete darkness.

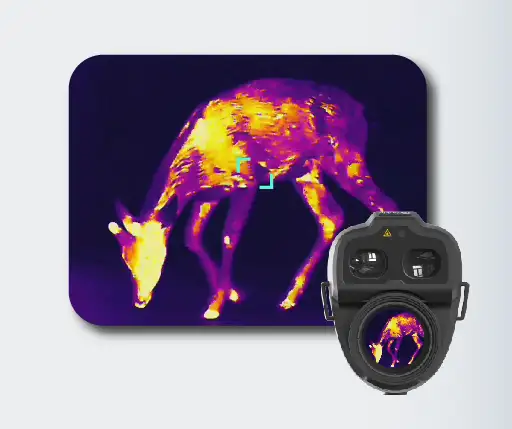

Integrated HD Thermal Detector and Digital Sensor
Superior thermal and night vision technology delivers crisp, well-defined images, enabling clear identification of animals, their anatomical features, and fine details like twigs, foliage, and terrain—around the clock.
1920 1080 AMOLED Display
High-resolution 0.39-inch AMOLED (1920×1080) delivers lower power draw, broader viewing angles, and more vivid colors, enabling improved detail visibility during observation.
Built-in Precision Laser Rangefinder
The built-in high-precision laser ranging module supports accurate distance measurement up to 600 meters, delivering precise target distance data with no need for calibration.

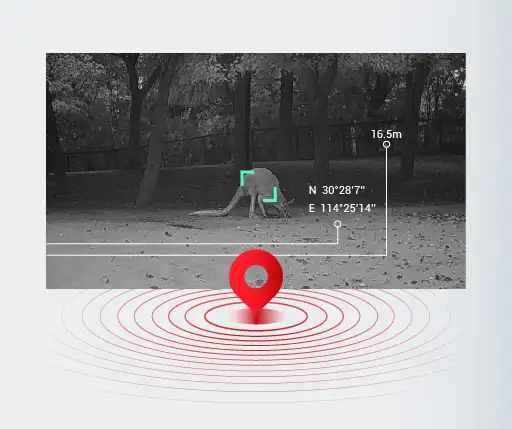

Built-in GPS for Target Positioning
GPS technology provides hunters with precise latitude and longitude coordinates, ensuring reliable positioning for navigation, safety, terrain mapping, animal tracking, and access to critical environmental data. When combined with a built-in laser rangefinder and gyroscope, the system also delivers target distance and device angle readings, enabling fast and accurate aiming.

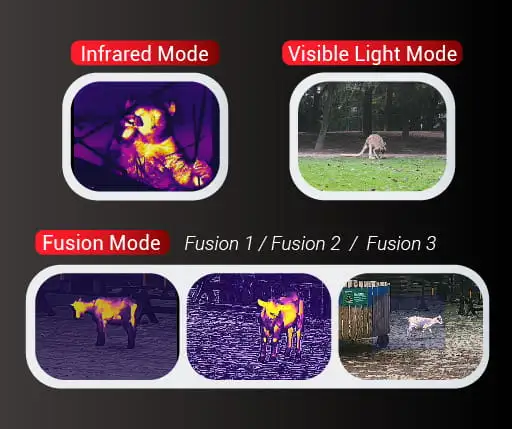

Combined Multispectral Viewing Modes
You can operate the TL Series across multiple imaging options: a standard thermal monocular featuring five selectable color palettes, a high-resolution optical camera for both daytime and night vision use, or the exclusive Fusion mode. This mode blends visual details from the optical camera with thermal data, significantly enhancing detection clarity and providing superior performance with exceptional image detail.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14 m; Digital: CMOS | |||
| Resolution | Thermal: 640 480@12 m Digital: 1920 1080@4 m | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | Thermal: 35mm, F1.0; Digital: 17mm, F1.4 | |||
| Field of view | 12.4 9.3 | |||
| FOV m@100m | 22 16 | |||
| Magnification | 1.5x~12x | |||
| Detection range | 1800m/1950yd | |||
