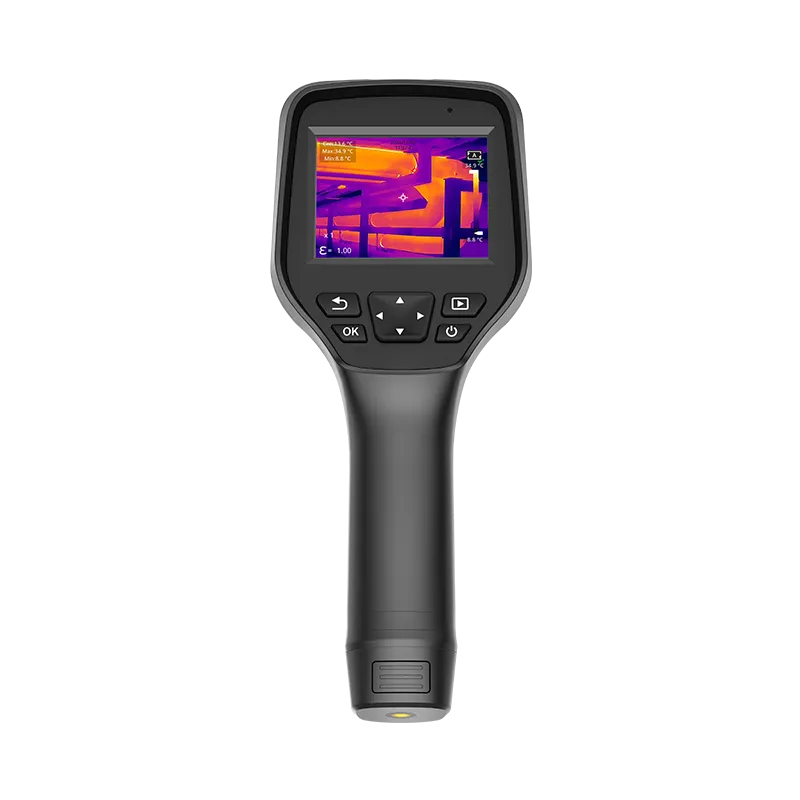

MRM320 Handheld Thermal Camera

China Moneypro

RM320 is equipped with a 12 m infrared detector, which brings 384 288 high-resolution infrared thermal images and a high sensitivity of 35mK to easily capture small hot spots.

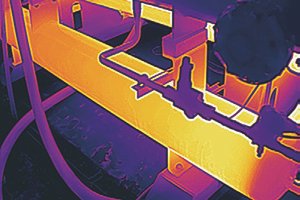

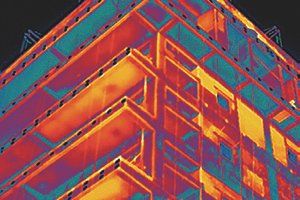

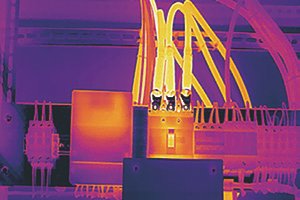

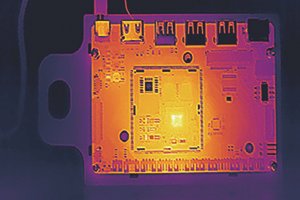

With a temperature measurement range extendable to 650 C, the device is suitable for electric routine inspection, electronic circuit design, HVAC, industrial manufacturing, petrochemical industry, photovoltaic testing, and many other fields.

Feature

High-definition Thermal Images, Capturing Subtle Hot Spots

Equipped with a self-developed 384 288 high-pixel 12 m advanced-technology detector.
Capable of distinguishing 0.035 C temperature differences, easily capturing subtle hot spots.

Smart Upgrade for You to Handle Complexity with Simplicity

Support intelligent shooting, user customization, import and distribution of inspection task packages, simplifying the task process and improving routine inspection efficiency.
Support temperature trend analysis, helping users observe temperature distribution and changes in real time.
Support isotherm function to highlight the temperature segments or areas that need attention.
Support analysis software on the PC client and secondary analysis of video files.

Upgraded Performance for More Application Scenarios

-20 C~+650 C wider temperature range, suitable for more industrial temperature measurement scenarios.
IP54 and 2m drop protection, solid and durable.
Standard 32GB Micro SD card, expandable to 512GB, supporting temperature video recording.

Specification

Thermal Imaging
Detector Type	Uncooled infrared detector
Infrared Resolution	384 288
Pixel Size	12 m
Spectral Band	7.5-14 m
NETD	35mK (25 C,F1.0)
Frame Rate	30 Hz
Lens Focal Length	9.1mm
FOV	27 20
IFOV	1.31mrad
Focusing Mode	Manual focusing
Measurement Range	-20 C~+150 C; 100 C~650 C
Measurement Accuracy	2 C or 2% of readings, whichever is greater
Imaging Display
Display	3.5-inch touch screen, 640 480 resolution
Visible Light Camera	5 megapixels
Digital Zoom	1 , 2 , 4 , 8
Palettes	10
Image Mode	Infrared, visible light, PIP, dual-spectrum fusion
Temperature Width Stretch	Automatic/Manual
Image Storage
Storage Medium	Standard 32GB MicroSD, up to 512G
Text Notes	Support
Voice Annotation	Support
Measurement and Analysis
Analysis Functions on the Device	Custom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature display
Supporting Software	PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)
Video Functions
Radiation Infrared Video Recording	Support
Non-radiation Infrared or Visible Light Video Recording	Support
System Functions
Intelligent Routine Inspection	Support
Communication Protocol	Wi-Fi, USB
Video Transmission	Support UVC video transmission
Laser Pointer	Support
Others
Battery	Rechargeable and detachable lithium-ion battery
Charging Mode	USB Type-C or desktop charger
Battery Life	About 6h (about 3h for a single battery)
Interface	USB Type-C, SD card
Tripod Socket	UNC 1/4-20 interface for tripod
Operating Temperature	-10 C~+50 C
Operating Humidity	10%~95% (non-condensing)
Storage Temperature	-20 C~+60 C
Ingress Protection Rating	IP54
Shock and Vibration	Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
Weight and Dimensions	About 683.5g, 258.4 105.1 102.3mm
Authentication	CE/RoHS/CMA, etc.
Packing List	Thermal camera, 5V 3A power adaptor, USB cable, SD card, battery 2, Quick Start Guide, battery charger, calibration certificate, package list, safety box
