ME3 Tool-like Thermal camera
China Moneypro

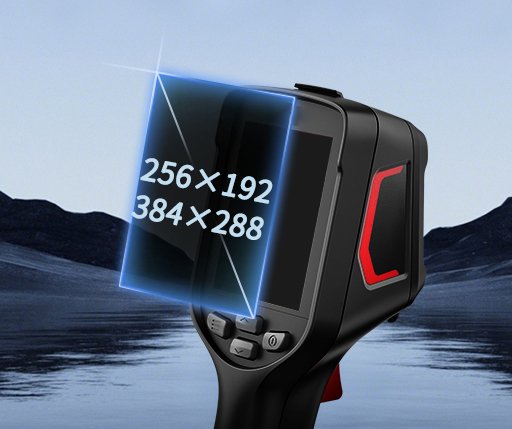

EasIR Series offers high-resolution detectors (256 192 or 384 288) for precise capture of minute temperature variations. Featuring IR-Perfclear technology, it optimizes image details and reduces noise in real time, delivering exceptionally clear thermal imaging. The device is equipped with a 3.5-inch bright HD display and a 2 MP visible-light camera, supporting both synchronous display or image fusion of thermal and visible-light. Enhanced with smart capabilities including live video streaming, recording, Wi-Fi connectivity, and OTA upgrades, it significantly boosts work efficiency.
256 192@12 mIR Resolution
30mKNETD
-20 C~550 CMeasurement range
30Hz/9HzFrame rate
3.5-inch large screen
The large 3.5-inch screen offers a sharp and clear view of every detail, allowing for accurate management of essential data.

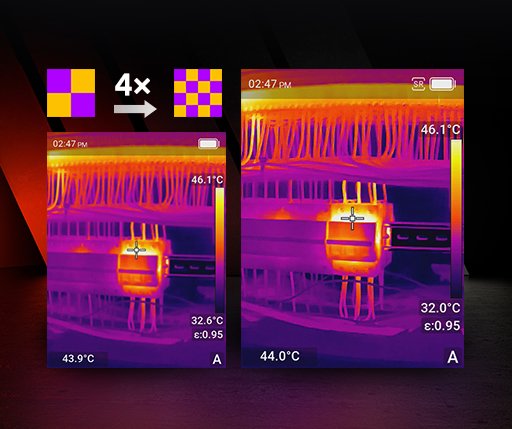

Real-time IR-Perfclear technology
Equipped with IR-Perfclear technology, it delivers real-time super-resolution processing, enhancing image quality by up to 4 times.

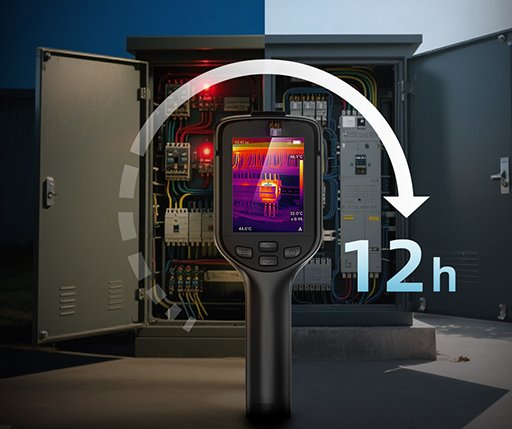

12-Hour Runtime
Extended 12-hour battery runtime supports full-day mission requirements and guarantees consistent performance under challenging working environments.

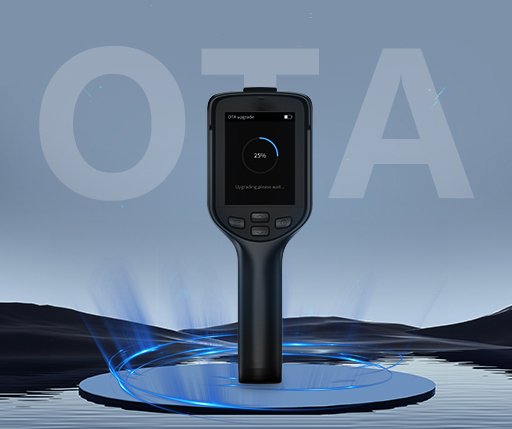

OTA Updates
Featuring end-to-end encrypted transmission and integrity verification, ensuring both security and reliability during upgrades. One-touch updates, available whenever and wherever you need them.

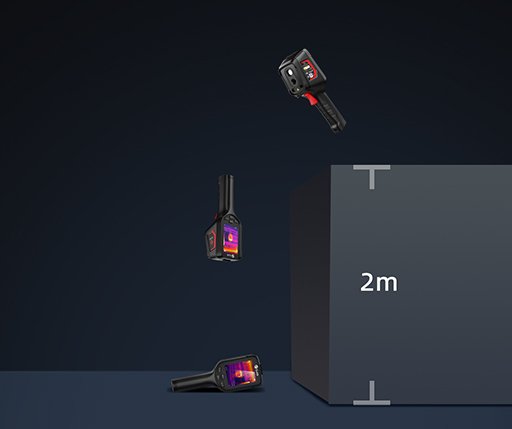

2-Meter Drop Proof
Built to survive 2-meter drops. Impervious to rain, extreme heat, and tough environments.
Technical Parameters
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14 m | |||
| Infrared resolution | 256 192@12 m | |||
| Super resolution | Yes, Upgrade to 512 384 | |||
| NETD | 30mK | |||
| Frame rate | 30Hz/9Hz | |||
| Focal length | 3.2mm | |||
| Field of view | 56 42 | |||
| IFOV | 3.75mrad | |||
| Min. object distance | 0.3m | |||
| D:S | 266:1 | |||
| Focusing mode | Focus-free | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -20 C to 150 C, 0 C to 550 C | |||
| Measurement accuracy | 2 C or 2%, whichever is greater | |||
| Analyzed target | Center spot; Three Fixed Areas: Small, Medium, Large (Alternative) | |||
| Alarm | Full screen temperature threshold alarm (image and flash) | |||
| Image display | ||||
|---|---|---|---|---|
| Display screen | 3.5″ LCD , 640 480 | |||
| Image mode | IR, VIS, MIF, PIP | |||
| Color palettes | 6: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1 | |||
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual | |||
| Digital camera | 2MP | |||
| Functions | ||||
|---|---|---|---|---|
| Laser | Laser Indication | |||
| Recording function | Photo and Video | |||
| Storage and transmission | ||||
|---|---|---|---|---|
| Storage media | Built-in (32 GB) | |||
| Image storage | JPG with temp info | |||
| Video storage | Supports real-time video streaming, video storage format in Irgd (with temp info) | |||
| External interface | USB-C, Tripod socket | |||
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | |||
| Power system | ||||
|---|---|---|---|---|
| Battery type | Rechargeable lithium-ion battery, non-removable | |||
| Operating time | 12 hours | |||
| Environmental parameters | ||||
|---|---|---|---|---|
| Working temperature | -15 C to 50 C | |||
| IP rating | IP54 | |||
| Drop | 2m drop test | |||
| Physical parameters | ||||
|---|---|---|---|---|
| Hardware | Illuminator | |||
| Weight | 440g | |||
| Size | 228 81 77.5mm | |||
| Software kit | PC: ThermoTools; Mobile: FocusIR (iOS/Android) | |||
| Standard | A device, Wrist strap, Power adapter, Adapter plug, USB-A to USB-C cable, Quick Start Guide, Warranty card, Carrying bag | |||
| Options | Macro lenses (10x/5x), Tripod | |||
