MFC430T Thermal Bullet Camera

China Moneypro

MFC4T thermal bullet camera equipped a high-resolution, 12 μm pixel pitch thermal detector with various lens options.
It supports tripwire/intrusion detection and it integrated temperature analysis methods and fire detection function.
It can be used for perimeter protection and fire prevention in residential areas and commercial facilities.
Support TPM technology and meeting the FIPS 140-3 Level 3 standard.

Feature

12μm Uncooled Infrared Detector

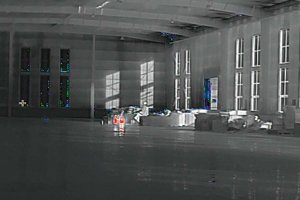

Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.

Intelligent Video Analysis

Support tripwire/intrusion detection, as well as intelligent detection of fire point.

Accurate Temperature Measuremen

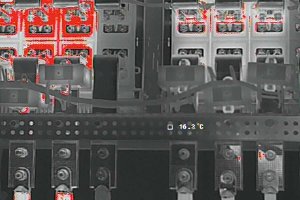

Measurement range from -20°C to 550°C, accuracy ±2°C or 2%.

Platform Integration

Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.

Specification

Thermal Module
Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	384×288
Pixel Pitch	12μm
Focal Length	9.1mm/13mm/19mm/25mm
Temperature Measurement
Temperature Range	-20℃~+550℃
Temperature Accuracy	±2℃ or ±2%

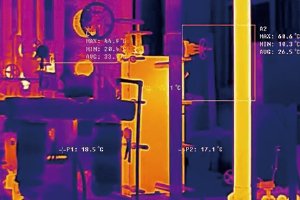

Temperature Measurement	Support 4 temperature measure ment rules(fullframe, point, line, area)
Smart Function
Fire Detection	Support
VCA	Support Line Crossing & Intrusion detection
2-Way Audio	Support
Linkage Action	Video/ Snapshot/Email/Alarm output/sound and light alarm
System Interface
Power	DC 12V±25%/POE(802.3at)
Network	1 RJ45 10M / 100M self-adaptive Ethernet port
Audio	1 in/1 out
Alarm	2 in/1 out
Storage	Micro SD memory（maximum 256G）
Reset	Support
Serial Port	1 channel RS485, can support Pelco protocol
General
Work Environment	-40℃~+70℃；<95%RH
Protection	IP66
Certification	CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3
Power Consumption	≤4W
Dimenstion(mm)	319.5×121.5×103.6
Weight	≤1.5kg
