ME2 Tool-like Thermal camera
China Moneypro
EasIR Series tool-like thermal camera provides two configuration options of 120×90 and 256×192 IR detectors. It adopts the new real-time IR-Perfclear technology to enhance the details and reduce noise of the image and present a clearer image in real time. Equipped with a series of professional functions such as 2MP visible light camera, video streaming and recording, WIFI, and OTA upgrade, etc., EasIR Series brings a clearer, more powerful and smoother work experience for users.
256 192@12 mIR Resolution
45mKNETD
-20 C~550 CMeasurement range
25Hz/9HzFrame rate
256×192/120×90@12 m infrared detector
Based on our self-developed 12 μm uncooled infrared detector, the EasIR Series is available in two resolution options: 256×192 and 120×90. It combines compact size with low power consumption.
Real-time IR-Perfclear technology
The real-time IR-Perfclear technology overcomes the size constraints of conventional infrared detectors, delivering a fourfold improvement in image quality via live computational optimization. As a result, it produces superior images with enhanced detail and exceptionally sharp clarity.
Wide measurement range, automatic switching
With an extensive temperature detection span of -20°C to 550°C, featuring seamless auto-switching between -20–150°C and 0–550°C ranges, the EasIR Series delivers higher measurement accuracy to satisfy the varied needs of a broader range of industries.

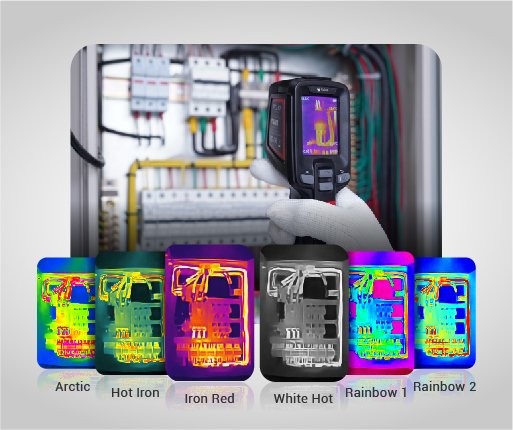

Infrared & visible light enriches the image display
Equipped with both a thermal imaging sensor and a visible light camera, the EasIR Series offers 4 imaging modes and 6 color palettes, enabling users to more intuitively observe and analyze heat distribution across targets.

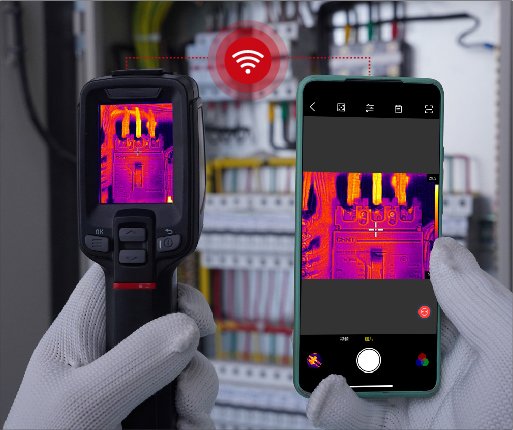

Convenient Sharing Via Mobile APP Connection
By connecting to Wi-Fi, users can remotely view the phone’s photo album and easily share images through the mobile app. The EasIR Series also supports real-time control via the app, allowing users to capture photos and record videos remotely.

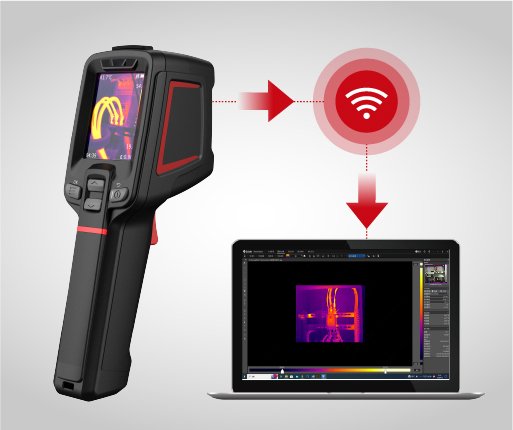

Video streaming
Through a Wi-Fi connection, data can be sent directly to PC-based analysis software in real time, enabling users to record information and perform live analysis.
Technical Parameters
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14 m | |||
| Infrared resolution | 256 192@12 m | |||
| Super resolution | Support real-time super-resolution reconstruction, Upgrade to 512 384 | |||
| NETD | 45mK | |||
| Frame rate | 25Hz/9Hz | |||
| Focal length | 3.2mm | |||
| Field of view | 56 48 | |||
| IFOV | 3.75mrad | |||
| Min. object distance | 0.1m | |||
| D:S | 266:1 | |||
| Focusing mode | Focus-free | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -20 C to 150 C, 0 C to 550 C | |||
| Measurement accuracy | 2 C or 2%, whichever is greater | |||
| Analyzed target | Center spot; Three Fixed Areas: Small, Medium, Large (Alternative) | |||
| Alarm | Full screen temperature threshold alarm (image and flash) | |||
| Parameter settings | Emissivity, reflected temperature, target distance | |||
| Image display | ||||
|---|---|---|---|---|
| Display screen | 2.4″ LCD | |||
| Image mode | IR, VIS, MIF and PIP | |||
| Color palettes | 6: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1 | |||
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual | |||
| Digital camera | 2MP | |||
| Functions | ||||
|---|---|---|---|---|
| Laser | Laser Indication | |||
| Recording function | Photo and Video | |||
| Storage and transmission | ||||
|---|---|---|---|---|
| Storage media | Built-in (16 GB) | |||
| Image storage | JPG with temp info | |||
| Video storage | Supports real-time video streaming, video storage format in Irgd (with temp info) | |||
| External interface | USB-C, Tripod socket | |||
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | |||
| Power system | ||||
|---|---|---|---|---|
| Battery type | Rechargeable lithium-ion battery, non-removable | |||
| Operating time | 11 hours | |||
| Charging mode | USB-C charging; PC/portable charger; Capable of charging while using | |||
| Charging time | 90% of full charge in 2.5 hours | |||
| Environmental parameters | ||||
|---|---|---|---|---|
| Working temperature | -15 C to 50 C | |||
| IP rating | IP54 | |||
| Drop | 2m drop test | |||
| Certification | CE, FCC, RoHS, KC, EAC, FDA, Anatel, IP54, 2m drop test, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS | |||
| Physical parameters | ||||
|---|---|---|---|---|
| Hardware | Illuminator | |||
| Weight | 375g | |||
| Size | 194 61.5 76mm | |||
| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) | |||
| Standard | A device, Wrist strap, Power adapter, Adapter plug, USB-A to USB-C Cable, Data download card, Quick Start Guide, Warranty card, Inspection report | |||
| Options | Tripod | |||
