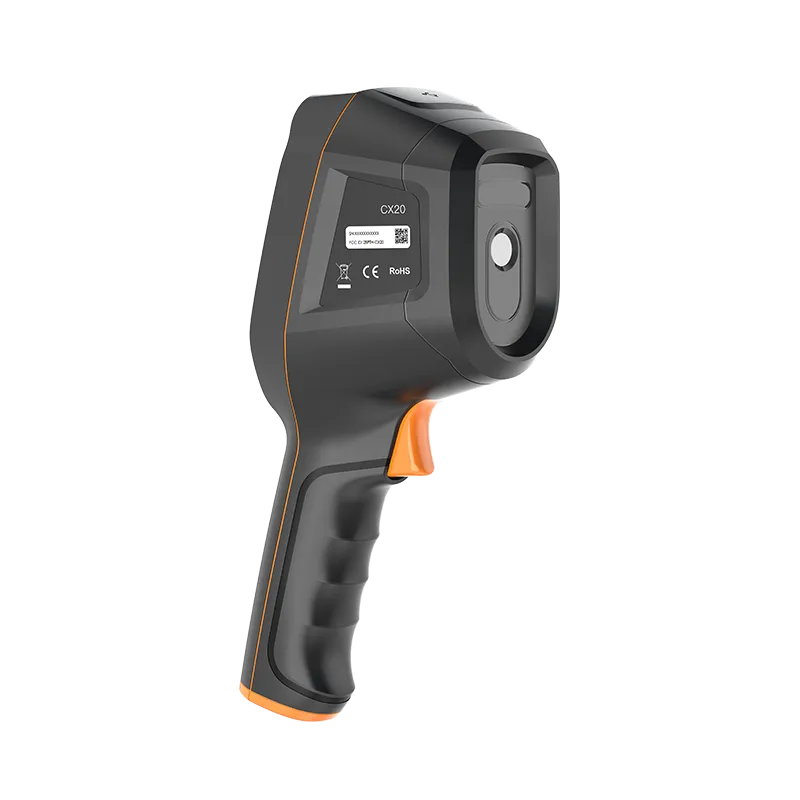

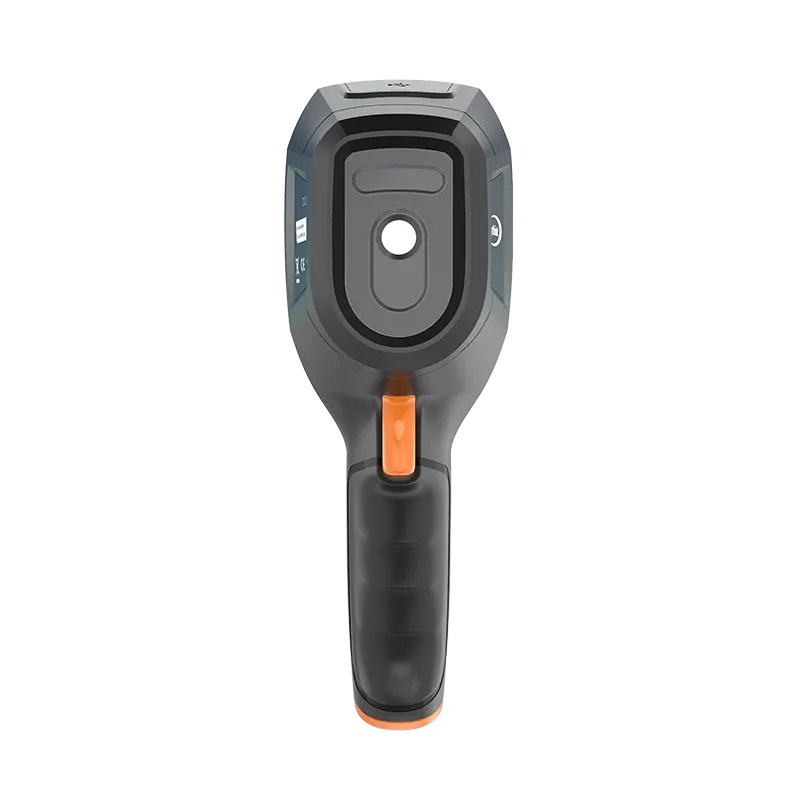

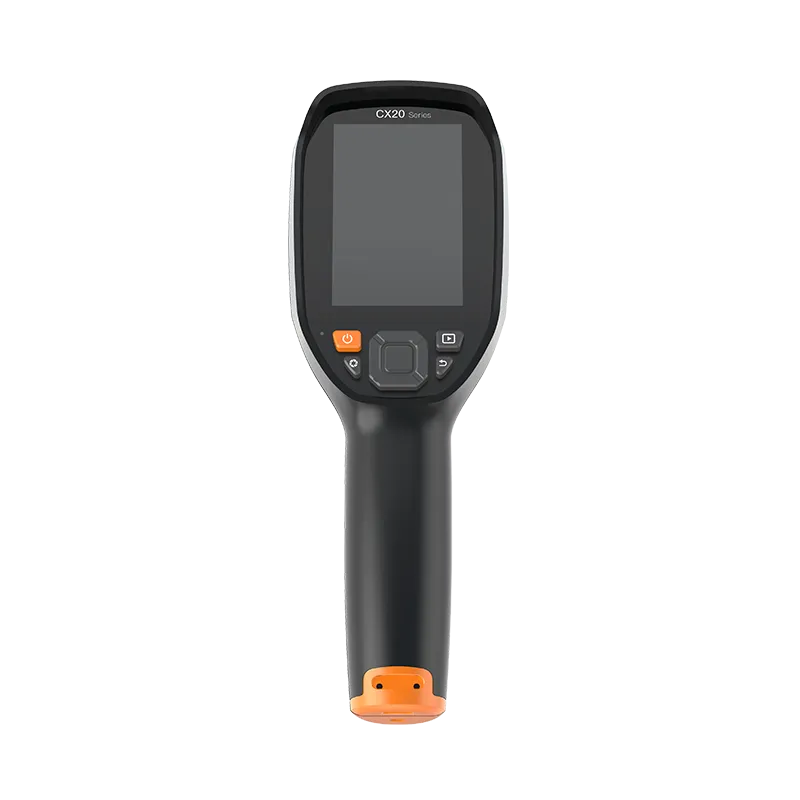

MCX20 Ultra Handheld Thermal Camera
China Moneypro
The MCX20 Ultra handheld thermal camera integrates a 256 192 infrared detector, enhanced to 512 384 using real-time AI super-resolution.
Featuring a 3.5-inch HD display and optional laser pointer and range nder, it enables precise fault location and signi cantly improves inspection e ciency.
Feature
High-Definition Thermal Imaging, Powered by Real-Time AI Super Resolution
256 192 resolution, enhanced to 512 384 with AI super-resolution
NETD as low as 40mK, detecting minute temperature differences
3.5-inch high-resolution display, presenting thermal images in detail
NETD as low as 40mK, detecting minute temperature differences
3.5-inch high-resolution display, presenting thermal images in detail
Fully Upgraded User Experience
18W quick charging ensures worry-free performance during intensive operations
Built-in Wi-Fi and UVC image transmission across the entire series for faster and wireless image sharing
Built-in Wi-Fi and UVC image transmission across the entire series for faster and wireless image sharing
Software+ : Complete Software PC Client and App
Equipped with a professional mobile/PC temperature analysis platform, supporting secondary analysis
Laser Rangefinder + Laser Pointer
Newly upgraded laser pointer for rapid targeting of temperature anomalies.
Fully enhanced laser rangefinder enables 3D spatial positioning of abnormal points, greatly improving on-site inspection efficiency.
Fully enhanced laser rangefinder enables 3D spatial positioning of abnormal points, greatly improving on-site inspection efficiency.
Specification
| Thermal Imaging | |
| Detector Type | 12 m |
| Infrared Resolution | 256 192 |
| Super Resolution | 512 384 |
| Spectral Band | 7.5-14 m |
| NETD | 40mK |
| Frame Rate | 25 Hz |
| Lens Focal Length | 4.3mm |
| FOV | 40 30 |
| IFOV | 2.79mrad |
| Focusing Mode | Fixed focus |
| Minimum Imaging Distance | 0.7m |
| Measurement Range | Low temperature range:-20-150 C; high temperature range:100~550 C; auto switching |
| Measurement Accuracy | 2% or 2 C of readings, whichever is greater |
| Imaging Display | |
| Display | 3.5-inch, 480 640 resolution |
| Visible Light Camera | 2 megapixels |
| Digital Zoom | 2x, 4x |
| Palettes | 7 |
| Image Mode | Infrared, fusion, PIP, visible light |
| Temperature Width Stretch | Automatic/Manual |
| Image Storage | |
| Storage Medium | 32GB Internal Memory |
| Measurement and Analysis | |
| Analysis Functions on the Device | Central point/Highest temperature point/Lowest temperature point/6 custom points/Temperature difference |
| Laser Rangefinding | Support, max detection range: 4m |
| Supporting Software | PC (Infrared Analysis Software) or Mobile (iOS/ Android APP) |
| Laser Pointer | Support |
| System Functions | |
| Communication Protocol | Wi-Fi, USB |
| Alarm Type | Image pop-ups, flash prompts |
| Power Management | Adjustable (Automatic shutdown, 5 min, 10 min, 20 min, 120 min) |
| Video Transmission | UVC (including full-frame temperature data) + Wi-Fi (excluding full-frame temperature data) |
| Temperature Alarm | Support full-frame highest/lowest temperature alarm; automatic image capture at alarm time (with temperature data) |
| Others | |
| Battery | Built-in rechargeable lithium-ion battery |
| Charging Mode | USB Type-C |
| Battery Life | 6h |
| Tripod Socket | Support |
| Operating Temperature | -10 C~+50 C |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Temperature | -20 C~+60 C |
| Ingress Protection Rating | IP54/2m |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) |
| Weight and Dimensions | 500g, 246X101X85mm |
| Authentication | CB/CE/CMA |
| Packing List | USB cable, user manual, certificate of qualification, calibration certificate, charger, portable bag |
