MPS800 High Performance Thermal Camera
China Moneypro
The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels visible light camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts.
1024x768Infrared module
13MillionVisible light
30mkNETD
IP54Encapsulation

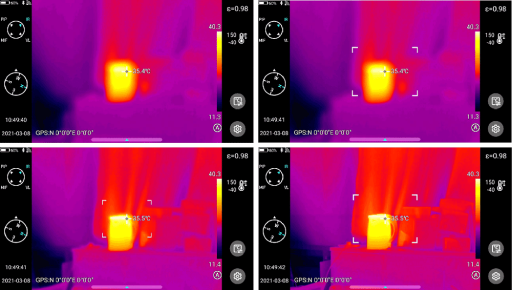

1 Fast Focus
Using an advanced focus mechanism and a precision laser distance sensor, the device delivers one-press intelligent autofocus in just 0.4 seconds.
Calibration-free Lenses
Extended lenses operate without calibration, adapting seamlessly to diverse scenarios. By eliminating factory setup, they save both time and costs.

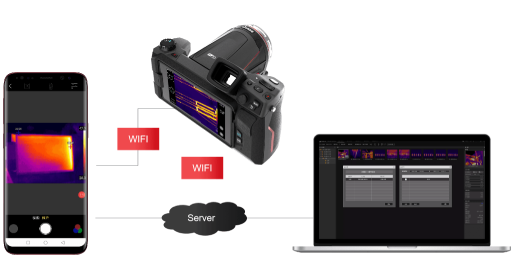

Cloud Service
Upload images to the cloud from any location, at any moment, supporting remote diagnostics and issue reporting. Connectivity options: 1. Personal hotspot / 2. Wireless router / 3. 4G mobile network (optional)

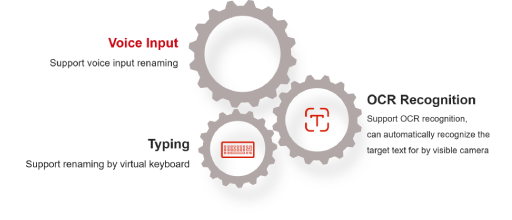

AI Voice Recognition
Offers flexible image naming with three types of input, making it easy to remember and organize files.
MIF Patent Technology of Multi-spectral Image Fusion (Patient No.: CN201510473667.8)
Four imaging modes are offered: IR, visible light, PIP, and MIF. The exclusive MIF mode allows visible light details to be overlaid onto thermal imagery, greatly enhancing your viewing experience and operational efficiency.

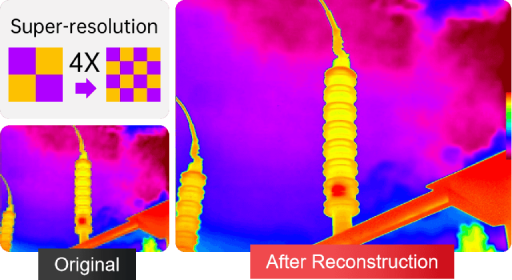

Image Super-resolution Reconstruction
Using a particular algorithm, image details can be enhanced. Super-resolution reconstruction can quadruple the pixel count of an infrared image, achieving superior imaging quality.
Technical Parameters
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14 m | |||
| Infrared resolution | 1024 768@12 m | |||
| Super resolution | Yes, Upgrade to 2048 1536 | |||
| NETD | 30mK | |||
| Frame rate | 25Hz/9Hz | |||
| Focal length | 28mm | |||
| Field of view | 25 19 | |||
| IFOV | 0.43mrad | |||
| Min. object distance | 0.3m | |||
| D:S | 2325:1 | |||
| Focusing mode | Automatic/Electric | |||
| Digital zoom | 1.1x to 35x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40 C to 150 C, 100 C to 800 C, Optional 700 C to 2000 C (High temperature lens is required) | |||
| Measurement accuracy | 1 C or 1%, whichever is greater | |||
| Analyzed target | 30 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (image and voice) | |||
| Parameter settings | Emissivity, reflected temperature, target distance, humidity, atmospheric temperature, optical transmittance | |||
| Others | Customized physical button | |||
| Image display | ||||
|---|---|---|---|---|
| Display screen | 5 LCD, touch screen, 1280 720 | |||
| Eyepiece | LCOS screen, 1280 960 | |||
| Image mode | IR, VIS, MIF and PIP | |||
| Color palettes | 12: White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia; Customized | |||
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual | |||
| Digital camera | 13MP | |||
| Functions | ||||
|---|---|---|---|---|
| Laser | Laser (Indication, Ranging) | |||
| Recording function | Photo (image stitching) and Video (infrared & visible light) | |||
| Cloud Services | Available | |||
| Storage and transmission | ||||
|---|---|---|---|---|
| Storage media | Built-in (64 GB) and SD card (64 GB and up to 128 GB) | |||
| Image storage | JPG with temp info | |||
| Video storage | MP4 format (without temp info) can be used to record audio synchronously; Irgd (with temp info) for temperature analysis | |||
| External interface | USB-C, DC (12V) , SD card slot, Network port, Micro HDMI, Tripod socket | |||
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission | |||
| Cellular network | 4G module (optional) | |||
| Bluetooth | Available | |||
| Power system | ||||
|---|---|---|---|---|
| Battery type | Lithium-ion rechargeable battery | |||
| Operating time | 3 hours | |||
| Charging mode | The device can be charged through desktop charger after shutdown. | |||
| Charging time | 90% of full charge in 2.5 hours | |||
| Environmental parameters | ||||
|---|---|---|---|---|
| Working temperature | -20 C to 50 C | |||
| IP rating | IP54 | |||
| Drop | ||||
| Certification | CE, FCC, RoHS, KCC, Anatel, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS | |||
| Physical parameters | ||||
|---|---|---|---|---|
| Hardware | Illuminator, Microphone, Speaker, Electronic Compass, GPS | |||
| Weight | 1.5kg (with battery) | |||
| Size | 206 169 135mm | |||
| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) | |||
| Standard | A device, Lens cover, Lithium-ion battery, Power adapter, Adapter plug, USB-A to USB-C Cable, Micro HDMI to HDMI Cable, RJ45 Ethernet Patch Cable, Quick Start Guide, Instructions, Data download card, SD card (64 GB) , Shoulder strap, Carrying case, Factory certificate, Desktop charger | |||
| Options | Lithium-ion battery, Carrying bag, Bluetooth headset, Expanded lens, 4G module, Tripod | |||
