How Night Vision Works

Modern night vision technology has evolved significantly beyond the simple light amplification of early generations. For system integrators and defense manufacturers, understanding the underlying physics of optoelectronic components is critical for selecting the right sensor for electro-optical infrared (EO/IR) gimbals, weapon sights, and driver vision enhancers. The choice between Image Intensification (I2) and Thermal Imaging dictates the operational capability, power budget, and environmental ruggedness of the final system.

This engineering guide dissects the operational mechanics of the two dominant low-light technologies. We will examine the electron multiplication process within vacuum tubes and the bolometric detection of long-wave infrared radiation. By analyzing these distinct spectral methodologies, integrators can better optimize SWaP-C (Size, Weight, Power, and Cost) for mission-critical applications.

The Physics of Image Intensification

Image Intensification (I2) remains the standard for direct-view night vision capability. Unlike digital sensors that process signals electronically, I2 is an analog process occurring within a vacuum tube. This technology operates by collecting scarce ambient light—photons from starlight, moonlight, or sky glow—and amplifying them thousands of times to produce a visible image.

Photocathode Photon Conversion

The process begins at the objective lens, which focuses incoming photons onto the photocathode plate. In Generation 3 (Gen 3) tubes, this plate is coated with Gallium Arsenide (GaAs). This semiconductor material possesses a high quantum efficiency in the 400nm to 900nm spectral range.

When photons impact the GaAs photocathode, they impart energy to electrons, ejecting them into the vacuum of the tube through the photoelectric effect. The efficiency of this conversion defines the system’s sensitivity in ultra-low light conditions. Gen 3 photocathodes significantly outperform older multi-alkali variations by extending sensitivity further into the Near-Infrared (NIR) spectrum where night sky illumination is more prevalent.

Microchannel Plate Multiplication

The liberated electrons are accelerated by a high-voltage field toward the Microchannel Plate (MCP). The MCP is the engine of gain in modern night vision. It is a thin glass disk consisting of millions of microscopic channels (tubes), typically 6 to 12 microns in diameter, tilted at a slight bias angle.

As a single electron enters a channel, it impacts the channel wall. This collision releases secondary electrons, which then strike the wall again further down the tube, releasing tertiary electrons. This cascading avalanche effect amplifies the original signal by a factor of up to 50,000. This gain control is often adjustable or automatically gated (autogating) to protect the tube from bright light sources.

Phosphor Screen Visualization

The multiplied cloud of electrons exits the MCP and strikes the phosphor screen at high velocity. The kinetic energy of the electrons excites the phosphor material, causing it to release photons. This effectively converts the electron signal back into visible light that the human eye can perceive through the eyepiece.

Integrators must choose between P43 (Green) and P45 (White Phosphor) screens. White Phosphor (WP) has gained market dominance in tactical applications because it activates the eye’s rods rather than cones, leading to reduced eye strain and better perceived contrast during extended operations.

Thermal Imaging Technology Mechanics

While I2 requires some ambient light to function, thermal imaging requires zero light. It operates by detecting the infrared radiation emitted by all objects with a temperature above absolute zero. For B2B integrators, the primary technology of choice is the uncooled microbolometer due to its reliability and favorable SWaP characteristics.

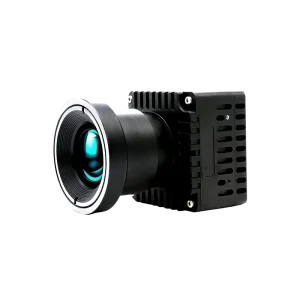

Vanadium Oxide Microbolometers

The core of an uncooled thermal camera is the Focal Plane Array (FPA). This array consists of a matrix of tiny absorber elements called microbolometers. The most common material used for these sensors is Vanadium Oxide (VOx), though Amorphous Silicon (a-Si) is also utilized.

Each pixel in the array is thermally isolated from the substrate. When Long-Wave Infrared (LWIR) energy—typically in the 8μm to 14μm range—hits a pixel, the material absorbs the energy and heats up. This temperature change alters the electrical resistance of the VOx material. A Readout Integrated Circuit (ROIC) measures this resistance change across the entire array and converts it into a video signal. This process happens typically at 30Hz or 60Hz.

NETD and Pixel Pitch Considerations

Two critical specifications define thermal sensor performance for integration:

Pixel Pitch: This is the distance between the centers of two adjacent pixels, measured in microns (μm). The industry standard has shifted from 17μm to 12μm. Smaller pixel pitch allows for smaller objective lenses to achieve the same optical magnification, drastically reducing the overall weight of the imaging module.

NETD (Noise Equivalent Temperature Difference): This measures the detector’s thermal sensitivity. It represents the smallest temperature difference the sensor can distinguish from the background noise. A lower NETD value indicates better performance. High-end VOx sensors now offer NETD values of <30mK or even <20mK, allowing the system to resolve extremely low-contrast targets in poor weather conditions.

Comparing I2 and Thermal for System Architecture

Selecting the correct technology depends heavily on the operational environment. Image Intensification provides natural situational awareness and facial recognition capability that thermal cannot match. However, thermal imaging excels in detection, easily spotting a heat signature through camouflage, smoke, or total darkness.

Feature	Gen 3 Image Intensification (I2)	Uncooled Thermal (LWIR)	Cooled Thermal (MWIR)
Primary Detection	Reflected Photons (NIR)	Emitted Heat (LWIR)	Emitted Heat (MWIR)
Light Requirement	Minimal (Moon/Starlight)	None (Zero Lux)	None (Zero Lux)
Through Obscurants	Poor (Blocked by smoke/fog)	Excellent	Excellent
Facial Recognition	High Resolution	Low (Silhouette only)	Medium
Power Consumption	Extremely Low (AA Battery)	Moderate (Sensor + Processing)	High (Requires Cryocooler)
Maintenance	Tube degradation over time	Solid state (Durable)	Cooler replacement required

Digital Night Vision and Sensor Fusion

The frontier of night vision lies in digital sensors and fusion. Digital night vision replaces the vacuum tube with a highly sensitive CMOS or CCD sensor, often back-illuminated to increase photon absorption. While digital NV still lags behind Gen 3 analog tubes in raw low-light sensitivity and latency, it offers a crucial advantage for integrators: the digital video feed.

A digital signal allows for the overlay of augmented reality (AR) data, recording capabilities, and most importantly, sensor fusion. Fusion systems combine the optical detail of I2 or Digital NV with the detection capabilities of Thermal Imaging. The resulting image displays a thermal “hotspot” overlay on top of a clearly defined visual background. This hybrid approach eliminates the weaknesses of using either technology in isolation.

Integration Challenges and Optical Coupling

For system integrators building handhelds, sights, or vehicle mounts, the challenge is not just selecting the sensor but coupling it effectively. Optical collimation is required to ensure the night vision channel aligns perfectly with day optics or laser rangefinders.

Furthermore, managing the “f-number” of the germanium lenses in thermal systems is vital. Lower f-numbers (f/1.0) allow more thermal energy to reach the sensor, improving sensitivity, but they increase lens size and weight. Balancing aperture size against the module’s NETD capability is a standard trade-off analysis performed during the design phase.
