Cooled vs Uncooled Infrared Detectors

Selecting the correct thermal imaging core is the most critical decision in the design of electro-optical systems. For B2B system integrators and defense manufacturers, the choice between cooled and uncooled infrared detectors dictates the final capabilities of the product. This decision impacts everything from the maximum detection range and image clarity to the maintenance schedule and total power budget.

While uncooled Vanadium Oxide (VOx) microbolometers have seen rapid advancements in pixel pitch reduction and sensitivity, cooled photon detectors remain the gold standard for long-range surveillance and scientific applications. This deep-dive technical article analyzes the physics, performance metrics, and integration constraints of both technologies to assist engineering teams in procurement and system architecture.

Understanding Uncooled Infrared Detector Technology

Uncooled thermal sensors are thermal detectors in the strictest sense. They do not count individual photons but instead measure the change in resistance caused by the heating of the sensor element by incident infrared radiation. This category is dominated by the microbolometer.

VOx Microbolometer Principles

The vast majority of modern uncooled systems utilize Vanadium Oxide (VOx) or Amorphous Silicon (a-Si) focal plane arrays (FPAs). VOx is generally preferred for its high Temperature Coefficient of Resistance (TCR) and lower 1/f noise compared to a-Si, resulting in better thermal sensitivity.

These sensors operate at ambient temperatures. The pixels are thermally isolated from the Readout Integrated Circuit (ROIC) by MEMS micro-bridges. As infrared energy hits the pixel, it heats up, changing its electrical resistance. The ROIC measures this change and converts it into a video signal. Because the pixel must physically heat up and cool down, uncooled detectors have a thermal time constant that limits their effective frame rate, typically topping out around 60Hz or 120Hz for standard modules.

Advantages of Uncooled Systems for Integration

The primary advantage of uncooled technology is the absence of a cryogenic cooler. This omission drastically reduces Size, Weight, and Power (SWaP). A typical uncooled OEM core utilizing a 12μm pixel pitch sensor is compact enough to fit inside small commercial drones, rifle scopes, and handheld maintenance tools. Furthermore, uncooled sensors are solid-state devices with no moving parts, offering extremely high Mean Time Between Failures (MTBF), often exceeding tens of thousands of hours.

Exploring Cooled Infrared Detector Mechanisms

Cooled infrared systems rely on quantum or photon detectors. Unlike thermal detectors, these sensors operate on the photovoltaic or photoconductive principle, where incident photons interact directly with electrons in the semiconductor material to generate a charge carrier.

Cryogenic Cooling and Photon Detection

To function correctly, these semiconductor materials—typically Indium Antimonide (InSb), Mercury Cadmium Telluride (MCT), or Type-II Superlattice (T2SL)—must be cooled to cryogenic temperatures, usually around 77 Kelvin (-196°C). This cooling is necessary to suppress thermally induced “dark current” noise that would otherwise drown out the signal from the target.

The cooling is achieved using an Integrated Dewar Cooler Assembly (IDCA), which houses the sensor in a vacuum and includes a Stirling cycle cryocooler. While this assembly adds bulk and power consumption, it enables performance capabilities that uncooled sensors cannot physically achieve.

Sensitivity Benefits of MWIR Cooled Sensors

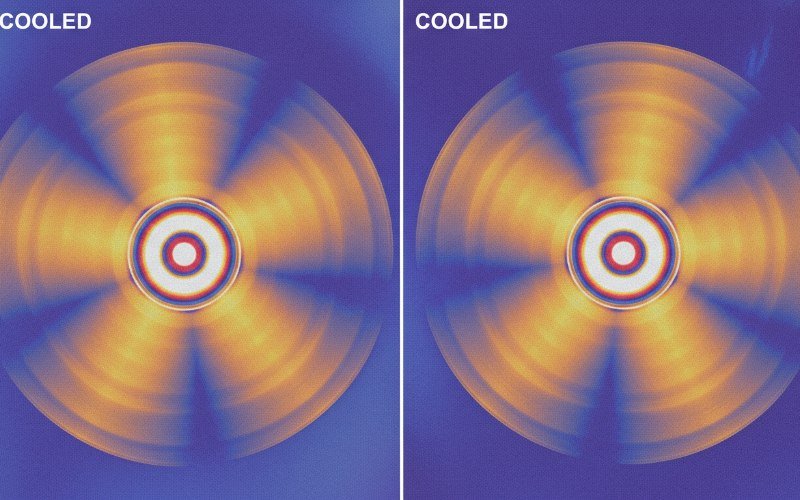

Cooled detectors primarily operate in the Midwave Infrared (MWIR) band (3μm – 5μm). The quantum efficiency of these detectors is exceptionally high. Because they count photons rather than waiting for thermal equilibrium, they can achieve extremely short integration times (measured in microseconds). This allows cooled systems to capture “stop-motion” imagery of high-speed targets, such as rotating helicopter blades or fast-moving munitions, without the motion blur associated with uncooled microbolometers.

Technical Performance Comparison

When evaluating cores for system integration, the Noise Equivalent Temperature Difference (NETD) is the primary metric for sensitivity. A lower NETD value indicates a sensor’s ability to distinguish smaller temperature differences, which directly correlates to image contrast and effective range.

Feature	Uncooled (LWIR)	Cooled (MWIR)
Sensor Material	VOx or a-Si Microbolometer	InSb, MCT, T2SL
Operating Temperature	Ambient (Stabilized)	Cryogenic (~77K)
NETD (Sensitivity)	<30mK – <50mK	<15mK – <25mK
Spectral Band	7μm – 14μm	3μm – 5μm
Integration Time	Milliseconds (Thermal constant)	Microseconds (Snapshot)
Frame Rate	Typically 30Hz – 60Hz	High Speed (up to 1000Hz+)
MTBF	High (Solid state)	Lower (Cooler limited ~10k-20k hrs)
Cost	Low to Medium	High to Very High

Spectral Bands and Atmospheric Transmission

The choice between cooled and uncooled technology is also a choice between spectral bands. Understanding atmospheric physics is essential for predicting system performance in real-world environments.

Longwave Infrared Performance in Obscurants

Uncooled sensors operate in the Longwave Infrared (LWIR) band (7μm – 14μm). This wavelength is particularly effective at penetrating obscurants such as smoke, dust, and battlefield aerosols. The scattering efficiency of particles decreases as the wavelength increases. Consequently, LWIR sensors generally provide better situational awareness in degraded visual environments compared to MWIR or visible light systems. For firefighting or close-range battlefield maneuvering, uncooled LWIR is the superior choice.

Midwave Infrared Clarity and Contrast

Cooled MWIR systems (3μm – 5μm) excel in thermal contrast. At typical terrestrial temperatures (300K), there is less photon flux in the MWIR band than in the LWIR band. However, the contrast difference (the change in signal for a change in temperature) is higher in MWIR. Combined with the superior sensitivity of cooled detectors, this results in extremely crisp images with high detail.

MWIR is also less affected by humidity over extremely long distances compared to LWIR, making it the preferred spectrum for coastal surveillance, border security, and long-range targeting systems where the target is 10km to 20km away.

System Integration and Cost Considerations

For the System Integrator, the tradeoffs extend beyond pure physics into logistics and economics.

SWaP Factors for UAVs and Handhelds

Power consumption is the most significant differentiator. An uncooled core might consume 0.5W to 1.5W of power. A cooled core, requiring an active cryocooler, often demands 6W to 12W during steady-state operation and significantly more during the initial cooldown phase. This disparity dictates battery size and mission duration.

For Class 1 and Class 2 UAVs, the weight penalty of a cooled system (often 500g+) is prohibitive. Uncooled cores, weighing as little as 20g, allow for longer flight times and smaller airframes. However, for Class 3 UAVs or fixed-wing ISR platforms, the payload capacity exists to support cooled systems to gain the advantage of altitude and standoff distance.

Total Cost of Ownership and Maintenance

Uncooled cameras are significantly cheaper to manufacture and integrate. The price difference can be an order of magnitude, with high-end uncooled cores costing thousands and cooled cores costing tens of thousands of dollars.

Maintenance is another critical factor. The cryocooler in a cooled system is a mechanical component subject to wear. Modern coolers have improved significantly, offering 20,000+ hours of operation, but they will eventually fail and require expensive refurbishment or replacement. Uncooled sensors generally run until the electronics obsolete them, offering a lower Total Cost of Ownership (TCO) for 24/7 security applications where maintenance access is difficult.

Applications Best Suited for Each Technology

Choose Uncooled VOx Detectors When:

• Designing portable, battery-operated devices (thermal sights, handheld monoculars).
• Integrating payloads for small tactical drones.
• Cost is a primary constraint.
• The application requires penetrating heavy smoke or dust (firefighting).
• Maintenance-free, 24/7 short-to-medium range surveillance is required.

Choose Cooled MWIR Detectors When:

• Extreme range performance is required (10km+).
• High thermal sensitivity (NETD <20mK) is necessary for low-contrast targets.
• Capturing fast-moving objects without motion blur is critical (missile defense, kinetic research).
• Multispectral capabilities or specific gas detection filters are needed.

Final Recommendation for System Engineers

The gap between cooled and uncooled technology is narrowing but remains distinct. High-end uncooled sensors with 1280×1024 resolution and <30mK sensitivity are now encroaching on applications previously held by cooled systems. However, physics dictates that for the highest sensitivity and speed, cooled photon detectors remain the only viable option.

System integrators must weigh the mission profile against the SWaP-C constraints. If the mission is long-range ISR or scientific measurement, budget for the cooled system. For almost every other general-purpose industrial, commercial, or tactical application, the uncooled microbolometer offers the best balance of performance and utility.
