Comprehensive Guide to Multi-Sensor EO/IR System Architecture

Electro-Optical/Infrared (EO/IR) systems represent the pinnacle of surveillance and targeting technology. For system integrators working in defense, aerospace, and maritime security, understanding the nuanced architecture of these payloads is essential for selecting the right hardware. An EO/IR system is not merely a camera; it is a complex integration of precision optics, advanced sensor physics, and gyroscopic stabilization designed to deliver actionable intelligence in any lighting condition.

This technical analysis explores the engineering principles behind EO/IR payloads. We will dissect the component hierarchy, from Focal Plane Arrays (FPAs) to the stabilization logic that defines mission success.

Defining the EO/IR Payload Architecture

At its core, an EO/IR system fuses two distinct electromagnetic spectrum domains. The Electro-Optical (EO) component typically covers the visible spectrum (0.4μm to 0.7μm) and often extends into the Near-Infrared (NIR). The Infrared (IR) component captures thermal energy, typically in the Mid-Wave Infrared (MWIR) or Long-Wave Infrared (LWIR) bands. The seamless integration of these sensors into a stabilized turret or gimbal constitutes the full system.

The Electro-Optical Sensor Block

The day-imager in professional EO/IR systems usually employs a high-definition CMOS sensor. Unlike consumer-grade cameras, these sensors are optimized for low-light performance and high dynamic range. Modern payloads integrate CMOS sensors capable of resolving targets in twilight conditions (down to 0.001 lux) before switching to the thermal channel.

Key specifications for the EO block include continuous optical zoom capabilities. Integrators should look for systems utilizing folded-optic designs to maximize focal length while minimizing physical housing size. This allows for positive identification (PID) of targets at ranges exceeding 10 kilometers in daylight.

The Infrared Sensor Block

The thermal imaging component is the defining factor of an EO/IR system’s cost and capability. There are two primary categories integrators must distinguish between based on mission requirements.

Cooled MWIR Detectors operate in the 3μm to 5μm band. They utilize a cryogenic cooler to lower the sensor temperature to approximately 77 Kelvin. This cooling reduces thermal noise, allowing for extreme sensitivity (NETD < 25mK). MWIR systems are superior for long-range surveillance and high-humidity environments where LWIR transmission is attenuated.

Uncooled LWIR Detectors typically use Vanadium Oxide (VOx) or Amorphous Silicon (a-Si) microbolometers operating in the 8μm to 14μm band. These sensors do not require cryogenic cooling, resulting in a lower Mean Time Between Failures (MTBF) and reduced power consumption. While they generally offer shorter ranges than cooled systems, recent advancements in 12μm pixel pitch technology have significantly closed the performance gap.

Precision Stabilization Technology

An EO/IR system is useless if the image is unstable. For airborne or maritime applications, the payload must compensate for the host platform’s vibration and movement. This is achieved through multi-axis gyro-stabilization.

Gyro Stabilization Mechanics

High-end systems employ a 4-axis stabilization design. This involves an outer azimuth and elevation axis for coarse movement and an inner azimuth and elevation axis for fine correction. MEMS gyroscopes or Fiber Optic Gyros (FOG) detect angular rate changes, feeding data into a servo control loop that counter-rotates the gimbal motors instantly.

The metric for success here is stabilization accuracy, measured in microradians (μrad). A standard commercial gimbal might achieve 100-200 μrad stability. However, military-grade EO/IR systems for fire control or long-range reconnaissance require stability better than 30 μrad to keep pixels on target at extreme distances.

Spectral Band Selection for Mission Profiles

Selecting the correct infrared band is a critical engineering decision. The choice between SWIR, MWIR, and LWIR dictates the system’s performance in specific atmospheric conditions.

Spectral Band	Wavelength	Primary Advantage	Ideal Application
SWIR	0.9μm – 1.7μm	Penetrates fog/smoke; sees through glass	Maritime haze, target identification
MWIR	3μm – 5μm	High thermal contrast; superior range	Long-range coastal/border surveillance
LWIR	8μm – 14μm	Better in dust/smoke; passive operation	UAV payloads, short-range tactical

Laser Subsystems and Rangefinding

A complete EO/IR system often includes laser subsystems to augment passive imaging. The most common is the Laser Rangefinder (LRF). By emitting a laser pulse (usually at 1550nm to be eye-safe) and measuring the time of flight, the system calculates the precise distance to the target. This data is essential for geo-location.

Advanced payloads also incorporate Laser Illuminators (pointer) or Laser Designators. Illuminators operating in the NIR spectrum are invisible to the naked eye but visible to Night Vision Goggles (NVG), allowing operators to signal targets to ground forces covertly. Designators use coded laser pulses to guide precision munitions, requiring significantly higher power output and thermal management.

Data Processing and Sensor Fusion

Modern EO/IR architecture is shifting from simple “sensor-to-screen” pipelines to complex edge computing nodes. The payload itself now acts as a computer.

Image Blending and Fusion

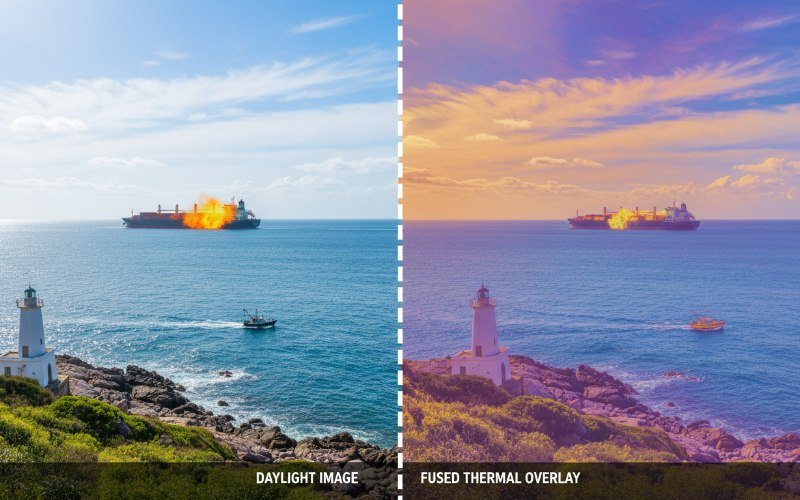

Sensor fusion algorithms digitally overlay the thermal image onto the visible image. This preserves the thermal signature of a target (like a heated engine or body heat) while retaining the contextual detail of the visible spectrum (like text on a sign or uniform colors). This fusion provides superior situational awareness compared to viewing either channel in isolation.

Video Tracking and AI

Onboard video trackers are mandatory for automated surveillance. Using correlation or centroid tracking algorithms, the system can lock onto a moving vehicle or drone and mechanically steer the gimbal to keep the target centered without operator input. Newer systems integrate Neural Processing Units (NPUs) to perform Automatic Target Recognition (ATR), classifying objects as humans, vehicles, or aircraft in real-time.

Integration Challenges regarding SWaP

Size, Weight, and Power (SWaP) remains the primary constraint for system integrators, particularly in the unmanned aerial vehicle (UAV) sector. Every gram of payload reduces flight time.

To address this, manufacturers are moving toward smaller pixel pitches. Reducing a thermal detector from 17μm to 12μm or 10μm allows for smaller optical lens assemblies while achieving the same magnification. This optical reduction significantly lowers the overall payload weight. Furthermore, the industry is transitioning from HD-SDI video interfaces to MIPI and Gigabit Ethernet, allowing for lighter cabling and easier integration with onboard flight computers.

Future Trends in EO/IR Technology

The future of EO/IR lies in High Operating Temperature (HOT) MWIR sensors. Traditional MWIR sensors require cooling to 77K, which demands significant power and wears out cooler bearings. HOT MWIR sensors can operate at 150K. This higher operating temperature reduces the cooling load, extends cooler life, and enables
