Uncooled Infrared Camera Core with Strong Shock Resistance

China Moneypro

ROCK Series Uncooled Infrared Camera Core delivers exceptional thermal imaging with shutterless algorithm technology requiring no shutter correction. Features extreme shock resistance up to 1500g/0.4ms, compact design at 36mm diameter weighing just 28.6g, and silent operation for concealment. Supports multiple video interfaces, various lens options including manual focus and motorized zoom, and drives multiple Micro OLED displays. Equipped with advanced image processing including NUC, DRC, DNS, and digital zoom capabilities. Ideal for outdoor surveillance, ADAS systems, and UAV payloads. Provides clear thermal imaging in complete darkness and challenging conditions with reliable performance in demanding environments.

Share your love

FEATURES

Shutterless algorithm, strong shock resistance

No shutter correction is required to avoid shutter damage during useu003cbru003eMute operation for good concealmentu003cbru003eShock resistance up to 1500g/0.4msu003cbru003eMax envelope diameterܦ36, weight 28.6g (bare module)

Powerful features, easy integration

Support reticles, storage, network, and keypadsu003cbru003eSupport a variety of video interfacesu003cbru003eSupport various lenses: manual focus/motorized lens/continuous zoomu003cbru003eSupport to drive various Micro OLEDs

DESCRIPTION

The ROCK series shutterless infrared camera core delivers exceptional thermal imaging capabilities. It does not require shutter correction during operation and can adapt to 1500g@0.4ms strong shock, solving the interference or noise problems encountered by observers. It allows users to see clearly in complete darkness and through challenging environmental conditions, and captures sharp and detailed images, ensuring accurate identification and target acquisition.u003cbru003eDesigned with robust shock resistance technology, ROCK series shutterless infrared camera core remains reliable and functional in various challenging environments such as heavy vibrations and impacts, making it ideal for use in a variety of demanding environments without compromising image quality. This advanced infrared camera core is not only rugged and reliable but also supports extensive secondary development and various video interfaces. It can be seamlessly connected to various devices and systems, making it an ideal choice for various applications.u003cbru003eIn order to meet the personalized needs of integrators, ROCK series infrared camera core is equipped with various functions such as reticle, external OLED, keypads and provides various video interfaces and lenses for easy integration. It drives various Micro OLED displays to provide high-quality visual output, enhance user experience and ensure optimal display performance. It excels in detecting and identifying targets even in complete darkness or extreme low-light conditions. This advanced imaging solution delivers exceptional performance across a range of demanding applications. Such a powerful performance infrared camera core truly provides first-class observation experience under limited space and load conditions.u003cbru003eElevate your thermal imaging capabilities with the ROCK series infrared camera core. Its combination of advanced features, durability, and flexibility for secondary development makes it the perfect choice for professionals seeking a reliable and adaptable thermal imaging solution. Whether for outdoor leisure, surveillance, or research, this infrared camera core is your go-to solution for clear, reliable thermal imaging.

APPLICATIONS

Outdoors

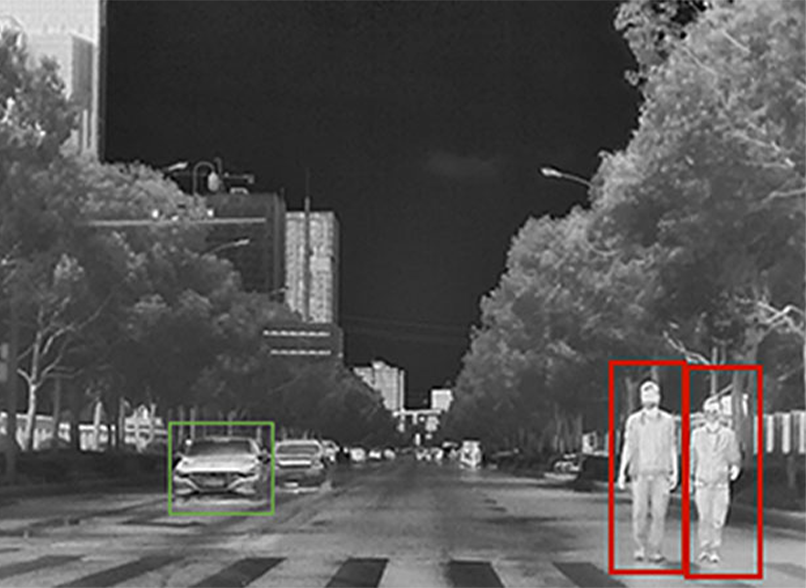

ADAS

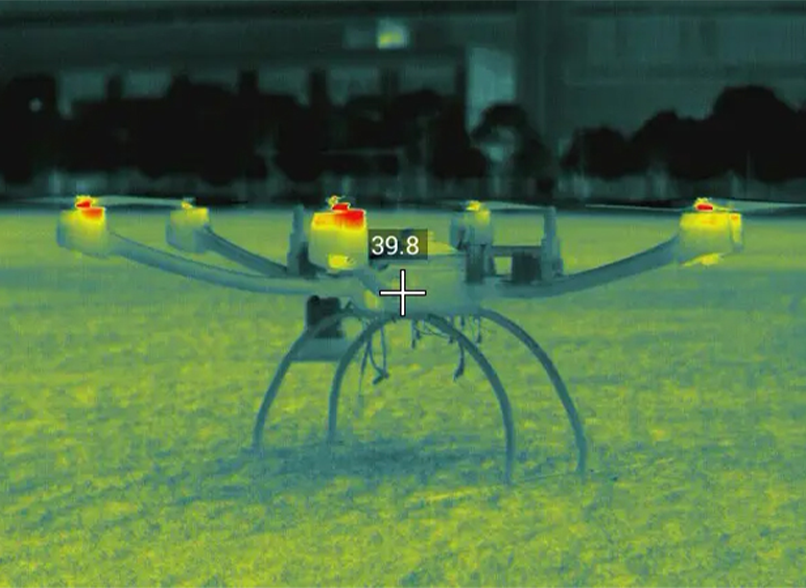

UAV Payloads

SPECIFICATIONS

ModelROCKA312ROCKA612ROCKB312ROCKB612
IR Detector384 288/12 m640 512/12 m384 288/12 m640 512/12 m
Spectral Response8~14 m
Typical NETD 30mK@F1.0/25
Analog VideoPAL/NTSC
Digital Video InterfaceDVP8/DVP16/USB2.0/LVDS/BT.656DVP16/USB3.0/MIPI/BT.1120
Frame Rate25/30/50HZ
Image AlgorithmNUC/DRC/DNS/DDE/SFFC
Digital Zoom1x/2x/4x1x/2x/4x/8xThe Reticles Center is Magnified 1x/2x/4xThe Reticles Center is Magnified 1x/2x/4x/8x
Image DirectionHorizontal/Vertical/Diagonal
Cross DivisionSupport
Picture in PictureSupport Upper Left/Upper Middle/Upper Right, and Drawing with Reticles
Photo/Support
Video/Support
Standard External Interface50pin: BP040SB-50-0114-B-R080pin
Communication InterfaceRS232-TTL/USB2.0
Power InterfaceBattery Supply/USB External   Power Supply
Power Consumption0.5W@23 3 1.5W@23 3
Sizeܦ36 (Max Envelope Diameter)
Weight 28.6g 29.5g
Working Temperature-40 ~+70 (Imaging)
OpticsFixed Focus Athermal: 19/25/35/50/70/100mm
Manual Focus: 25/35/50mm
Motorized Lens: 75/100/150mm
Continuous Zoom: 28~90/30~180mm
Extension ComponentsCameralink/HDMI/SDI/MIPI/GigE/USB2.0/USB3.0/VPCWIFI: support 802.11b/g, 2.4Ghz, real-time video transmission and control
Ethernet: support RTSP/HTTP/FTP/CGI
