MZT190VA Two-Axis Single-Optical Turntable
China Moneypro
The MZT190VA Two-Axis Single-Optical Turntable is a lightweight, high-precision photoelectric system designed for unmanned vehicles, armored vehicles, and surveillance towers. It combines a 30x visible light camera with infrared thermal imaging to deliver round-the-clock reconnaissance, surveillance, and target location capabilities. The system features automatic target identification and tracking, 360-degree continuous azimuth rotation, and pitch control from -15 to +90 degrees. With exceptional stability accuracy of 0.1 milliradians and maximum turning speeds of 60 degrees per second, it provides reliable performance in demanding environments. Advanced functions include autofocus, manual focus, low-light operation, memory tracking, and target locking with real-time video output. The compact design weighs just 4.7kg and operates reliably across extreme temperatures from -40 to 60 degrees Celsius. Ideal for border defense, coastal monitoring, and high-point surveillance applications.
The MZT190VA two-axis single-light turntable is mainly composed of a servo motion frame, sensor support frame, shock absorber, 30x visible light camera, servo drive board, image tracking board, gyroscope, and other components. It features a lightweight design, high stability and precision, as well as high integration. The system is suitable for deployment on unmanned vehicles, armored vehicles, and sentry towers, enabling day-and-night reconnaissance, surveillance, and target positioning.
Equipped with an infrared thermal imager and a visible light camera, the photoelectric turntable can detect, identify, and track ground targets around the clock. It outputs real-time infrared and visible light video feeds for mission personnel to monitor.
Typical applications of the optoelectronic turntable include aerial detection, ground surveillance, border and coastal defense, high-point monitoring, and border sentry posts.
I. Photos of the actual product
Figure 1 Product Image
II. Product Functions
a) Capable of automatically identifying and tracking typical targets.
b) Equipped with self-test and fault reporting functions.
c) Features 30× optical zoom for visible light.
d) Visible light supports optical zoom, autofocus, manual focus, and low-light operation.
e) Provides two-degree-of-freedom motion (azimuth and pitch).
f) Offers multiple operating modes: automatic search, manual search, follow-up, automatic tracking, and favorites.
g) In manual search mode, can receive commands from the control station to execute turntable operations.
h) Capable of isolating carrier disturbances and stabilizing the line of sight.
i) Supports target locking/unlocking; when a target is locked, the turntable outputs an image with a tracking frame.
j) Enables automatic target tracking, with the ability to resist natural interference.
k) Includes memory tracking, allowing rapid re-acquisition of a target after brief loss.
l) Allows adjustment of the gate size.
m) Features tracking point switching capability.
n) Provides target positioning functionality.
o) Hermetically sealed optical cabin.
p) Supports photo and video recording.
III. Platform
Unmanned vehicles, armored vehicles, monitoring towers, etc.
IV. Main Technical Parameters
| model | ZT190VA |
| Visible light camera | |
| resolution | 1920 1080 |
| Response band | 0.4 m to 0.9 m |
| Pixel size | 2.8 m |
| Optical zoom | 30 times |
| Mixed Variable Multiplication | 60 times |
| focal length | 4.3mm 129mm |
| Field of view | 63.7 35.8 2.3 1.3 |
| zoom mode | Autofocus, manual focus |
| Minimum Illumination | 0.01 Lux |
| Servo Platform | |
| Orientation angle | 360 n (360 continuous rotation) |
| Pitch angle | -15 to +90 (positive for upward) |
| Frame corner accuracy | 0.1 (1 ) |
| Stable accuracy | 0.1mrad (1 ) |
| Maximum turning speed | Azimuth 60 /s, Pitch 60 /s |
| Maximum turning acceleration | Azimuth 100 /s2, Pitch 100 /s2 |
| System Indicators | |
| Image tracking | Automatically track selected target |
| Power supply voltage | 20V 32VDC |
| power | Stable power consumption: 40W |
| weight | 4.7Kg |
| volume | 190mm 200mm 286mm |
| interface | |
| Control Interface | CAN/422/100Mbps Ethernet |
| Video interface | 100M network |
| Storage interface | 128G memory card (Micro SD card) |
| Image format | JPG format |
| Video format | AVI format |
| Environmental adaptability | |
| Operating temperature | -40 60 |
| Storage temperature | -45 70 |
| Vibration conditions | The acceleration was 6.06g; 30 minutes each in the vertical, lateral, and longitudinal directions. |
| Impact conditions | Peak acceleration 20g, duration 11ms |
| Protection level | Optical cabin airtight |
V. Mechanical Dimensions and Installation Interfaces

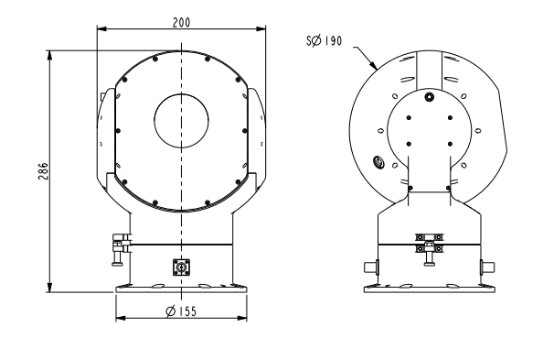

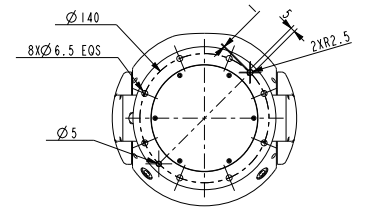

Figure 2 Product mechanical dimensions diagram
