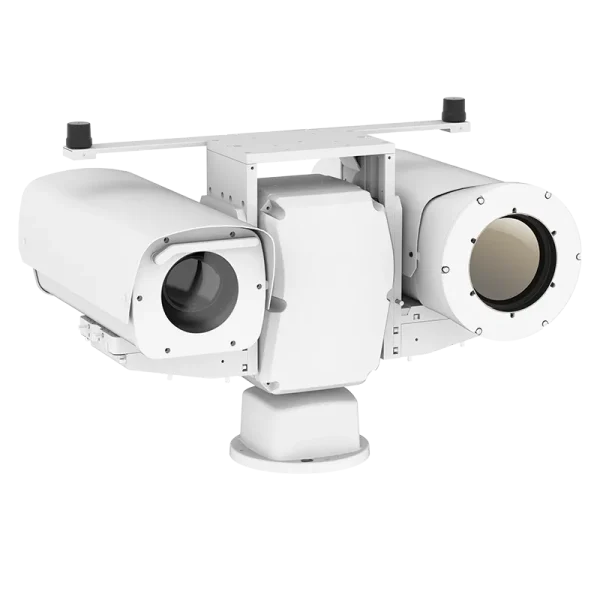

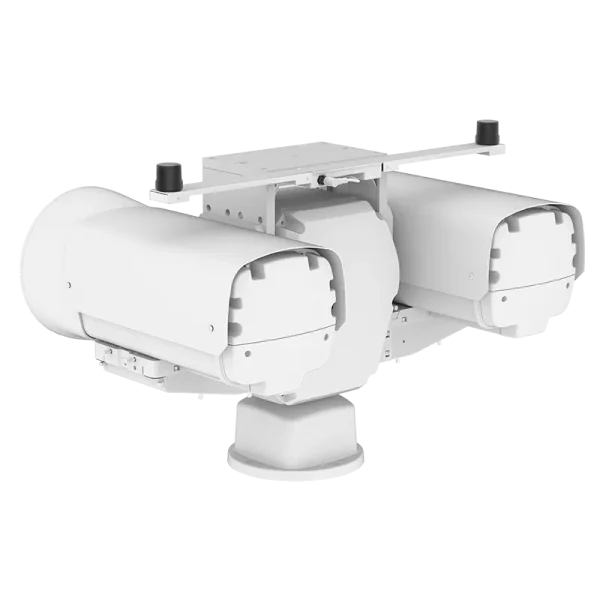

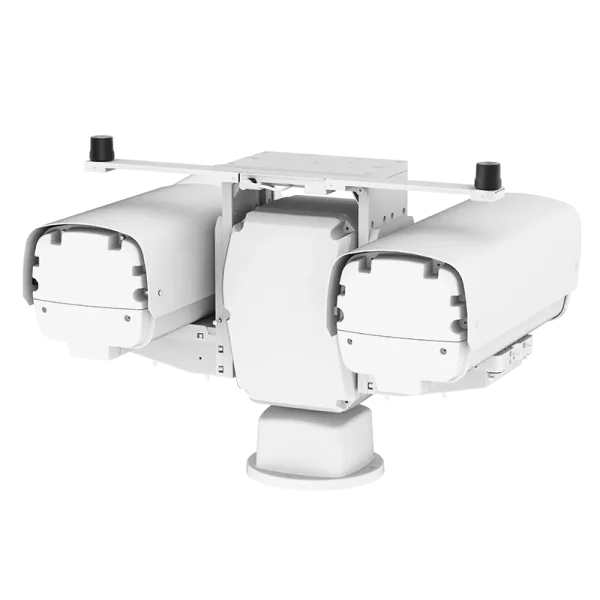

MPC664A1 Dual-Spectrum PTZ Camera

China Moneypro

The PC2 Series Dual-Spectrum PTZ Camera is a medium-range temperature measurement and monitoring product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one.

Equipped with intelligent functions like fire point detection, tripwire intrusion, and regional intrusion detection, the product also integrates sophisticated industrial temperature measurement and analysis tools for analyzing temperature data and triggering alarms. It is suitable for device temperature monitoring, factory area, and park monitoring, as well as robot routine inspection.

Feature

Industry-Leading Infrared Detector

To achieve long-range, high-definition imaging, the solution integrates either the latest uncooled infrared detectors or high-performance cooled MWIR detectors, paired with sophisticated infrared image algorithms.

Dual-Spectrum Imaging

Supports thermal imaging up to 2 MP (1920 × 1080) and visible light imaging up to 4 MP (2688 × 1520).

Long-Range Detection

To meet the demands of long-range detection, we offer infrared lenses with continuous zoom options, including models that cover 25–225mm and 35–350mm.

Intelligent Video Analysis

Intelligent video analytics enabling AI-powered multi-target recognition of humans, vehicles, boats, drones, and fire sources, with support for detecting intrusions, cross-border violations, and zone entry/exit activities.

Centimeter-Level Satellite Positioning

Achieves centimeter-level positioning for latitude, longitude, and elevation; RTK supported; azimuth orientation accurate to 0.3°.

Platform Integration

Support ONVIF compliance, offer SDK and demo for development, and provide NVR and VMS software for application deployment.

Specification

Thermal Module
Detector Type	Uncooled VOx infrared detector
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	640×512
Pixel Pitch	12μm
Focal Length	25~225mm/35~350mm
Optical Module
Sensor	1/1.8-inch 4 megapixel CMOS image sensor
Resolution	2688×1520
Focal Length	15~775mm/20~1200mm
GNSS
Satellite Positioning	Satellite location module
PTZ
Pan	360° continuous，0.01°~120°/s
Tilt	-90°~+90°，0.01°~60°/s
Scan mode	Preset point/Patrol inspection group/Patrol inspection scan/Linear scan/Pattern scan
Smart Function
Fire Detection	Support
Alarm Linkage	Video taking/Image capture/Email/Linked PTZ/Alarm output
Fire Point Detection	Support
Intelligent Alarm	Abnormality detection and linkage alarm for network cable disconnection, IP address conﬂict, full memory, memory error, and illegal access
Intelligent Detection	Tripwire detection, regional intrusion, and other intelligent video analysis functions
Intelligent Recognition	Recognition and tracking of people, vehicles, ships, UAVs
System Interface
Power	DC 48V±15%
Audio	1-channel audio input, 1-channel audio output
Alarm	7-channel input, 2-channel output
Storage	Micro SD card (up to 1 TB)
Serial Port	1-channel RS485 interface
Network	One RJ45 10 M/100 M adaptive Ethernet port
General
Work Environment	-40℃~+70℃；<90%RH
Protection	IP66, TVS 6000V, lightning protection, surge protection, and spike protection
Power Consumption	Max.270W
Dimenstion(mm)	805.6×661.5×585.3mm(W×H×L)
Weight	80kg
Serial Port	1 channel RS485, can support Pelco protocol
General
Work Environment	-40℃~+70℃；<90%RH
Protection	IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Certification	CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3
Power Consumption	≤300W
Dimenstion(mm)	623.6×398.5×350
Weight	30KG
