MZT190TA Two-Axis Three-Light Turntable

China Moneypro

The MZT190TA Two-Axis Three-Light Turntable is a lightweight, highly stable photoelectric surveillance system designed for unmanned vehicles, armored vehicles, and monitoring towers. It integrates an infrared thermal imager, visible light camera with 30x optical zoom, and laser rangefinder for comprehensive day and night reconnaissance and target tracking. The system features dual-axis servo motion with 360-degree azimuth rotation and -15 to +90 degree pitch capability, delivering real-time infrared and visible light video feeds. Advanced capabilities include automatic target identification and tracking, memory tracking for brief target loss recovery, laser ranging up to 6km, and precise positioning calculations. The compact design weighs under 5kg with an airtight optical cabin, operates across extreme temperatures from -40 to 60 degrees Celsius, and withstands significant vibration and impact. Multiple working modes including automatic search, manual control, and favorites, combined with photo and video recording functions, make it ideal for border defense, coastal surveillance, and high-point monitoring applications.

The MZT190TA two-axis three-light turntable mainly consists of a servo motion frame, sensor support frame, shock absorber, infrared camera, visible light camera, laser rangefinder, servo drive board, image tracking board, gyroscope, and other components. It features lightweight construction, high stability and precision, and high integration, and can be applied to unmanned vehicles, armored vehicles, and sentry towers to perform day and night reconnaissance, surveillance, and target location tasks.

The photoelectric turntable uses an infrared thermal imager and a visible light camera to detect, identify, and track ground targets around the clock, and outputs infrared and visible light videos in real time for mission personnel to view.

Optoelectronic turntables are mainly used in scenarios such as air detection, ground detection, border and coastal defense, high-point monitoring, and border sentry posts.

I. Photos of the actual product

Figure 1 Product Image

II. Product Functions

a) It has the function of automatic identification and tracking of typical targets;

b) It has self-testing and fault reporting functions;

c) It has a 30x optical zoom function for visible light ;

d) Possesses infrared and visible light band detection capabilities, and can output infrared and visible light images;

e) Visible light has optical zoom, autofocus, manual focus and low light functions;

f) The infrared sensor has electronic amplification and color palette switching functions;

g) Equipped with laser ranging function;

h) Possesses the ability to move with two degrees of freedom: azimuth and pitch;

i) It has multiple working modes such as automatic search , manual search, follow-up, automatic tracking, and favorites;

j) In manual search mode, it has the function of receiving control station commands and completing turntable operations;

k) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;

l) It has a target locking /unlocking function, and after locking the target, the turntable output image is an image with a tracking frame;

m) It has an automatic target tracking function, which can automatically track targets and is resistant to natural interference;

n) It has a memory tracking function, which allows the target to be recaptured in a short time after being briefly lost;

o) It has the function of adjusting the gate size;

p) It has a tracking point switching function;

q) The target coordinates can be calculated based on laser ranging and vehicle attitude information;

r) It has target positioning function;

s) Airtight optical cabin;

t) It has photo and video recording functions .

III. Platform

Unmanned vehicles, armored vehicles, monitoring towers, etc.

IV. Main Technical Parameters

model	ZT190TA
Infrared thermal imager
Detector type	Uncooled focal plane detector
Operating band	8 m 14 m
Detector resolution	640 512
Pixel size	12 m
Lens focal length	25mm 75mm
Field of view	17.4 14 5.8 4.7
Pseudo-color	6 types
Numbers multiplied	1 4X
Noise equivalent temperature difference	NETD 50mK
Minimum distinguishable temperature difference	MRTD 500mK
Visible light camera
resolution	1920 1080
Response band	0.4 m to 0.9 m
Pixel size	2.8 m
Optical zoom	30 times
Mixed Variable Multiplication	60 times
focal length	4.3mm 129mm
Field of view	63.7 35.8 2.3 1.3
zoom mode	Autofocus, manual focus
Minimum Illumination	0.01 Lux
Laser rangefinder
wavelength	1535nm
Maximum ranging distance	6km (under conditions of visibility 15km)
Minimum ranging distance	20m
Distance measurement accuracy	2m
Ranging frequency	1 to 5 Hz
Servo Platform
Orientation angle	360 n (360 continuous rotation)
Pitch angle	-15 to +90 (positive for upward)
Frame corner accuracy	0.1 (1 )
Stable accuracy	0.1mrad (1 )
Maximum turning speed	Azimuth 60 /s, Pitch 60 /s
Maximum turning acceleration	Azimuth 100 /s2, Pitch 100 /s2
System Indicators
Image tracking	Automatically track selected target
Power supply voltage	20V 32VDC
power	Stable power consumption: 40W
weight	5Kg

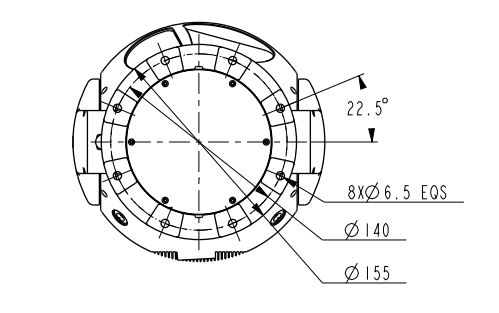

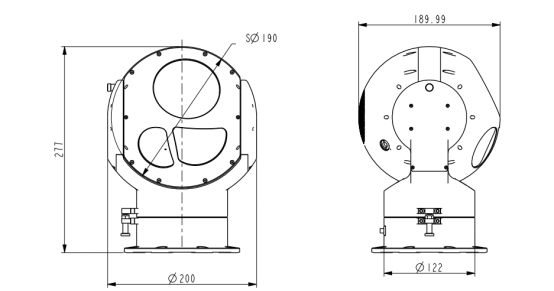

volume	190mm 200mm 277mm
interface
Control Interface	CAN/422/100Mbps Ethernet
Video interface	100M network
Storage interface	128G memory card (Micro SD card)
Image format	JPG format
Video format	AVI format
Environmental adaptability
Operating temperature	-40 60
Storage temperature	-45 70
Vibration conditions	The acceleration was 6.06g; 30 minutes each in the vertical, lateral, and longitudinal directions.
Impact conditions	Peak acceleration 20g, duration 11ms
Protection level	Optical cabin airtight
