MPC4S4A1 Dual-Spectrum PTZ Camera

China Moneypro

The PC4 series is a medium-to-long-range observation and monitoring product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one. The product, equipped with a self-developed AI recognition algorithm, can perform target recognition and tracking. It supports intelligent functions such as ﬁre point detection, tripwire intrusion, and regional intrusion detection, enhancing target recognition accuracy during nighttime and adverse weather conditions. It is suitable for scenarios requiring medium-range and long-distance monitoring such as forest ﬁre monitoring, medium-range perimeter security and perimeter monitoring.

Feature

12μm Uncooled Infrared Detector

Equipped with a next-generation 12μm uncooled infrared detector and enhanced by sophisticated infrared imaging algorithms, this solution delivers extended operational range with improved image clarity.

Dual-Spectrum Imaging

To meet round-the-clock security surveillance demands, this system integrates both visible light and thermal imaging in a dual-spectrum configuration. It supports a thermal imaging resolution of up to 1.3 megapixels (1280×1024) and a visible light resolution of up to 4 megapixels (2688×1520).

Multiple Lenses

To meet long-range detection requirements, use a high-magnification visible light lens with continuous zoom capability, complemented by an infrared lens featuring electric focusing and seamless zoom adjustment.

Intelligent Fire Detection Algorithm

Address the requirements of forest fire surveillance and perimeter protection through smart detection of smoke and flames, alongside intelligent infrared video analytics.

Intelligent Video Analysis

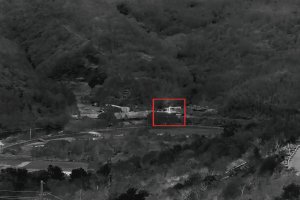

Enables smart detection of activities including dual-spectrum line-crossing and zone-based breaches, facilitates AI-powered identification and real-time tracking of various objects like people and vehicles, significantly extending the effective detection range.

Platform Integration

Compatible with standard ONVIF protocol, and includes SDKs along with integrated NVR software support.

Specification

Thermal Module
Detector Type	Uncooled VOx infrared detector
Spectral Range	8~14μm
NETD	≤40mK @25°C, F#1.0
Resolution	1280×1024
Pixel Pitch	12μm
Focal Length	25~75mm Motorized lens
Optical Module
Sensor	1/1.8-inch 4 megapixel CMOS
Resolution	2688×1520
Focal Length	6~360mm 60X
PTZ
Pan	360° continuous rotating
Tilt	-90°～+40°
Scan mode	Preset point/Patrol inspection group/Pattern/Area scanning/Linear scanning/Comprehensive patrol
Smart Function
Smoke & Fire Detection	Support
Fire Detection	Support
Radar Linkage	Support
Coaxial Linkage Amplification	Support
Intelligent Video Taking	Video taking triggered upon alarms or network failures (continue to transmit after recovery)
Intelligent Alarm	Support abnormality detection and linkage alarm for network anomaly, IP address conflict, memory error, illegal access, and burn alarm
Intelligent Detection	Support intelligent analysis of videos like tripwire and regional intrusion detection, and support passenger and vehicle recognition
System Interface
Communication	One RJ45 10M/100M adaptive Ethernet port, 1-channel RS485
Audio	1-channel audio input, 1-channel audio output
Alarm	7-channel alarm input,2-channel alarm output
Storage	Support Micro SD card (up to 512G)
General
Work Environment	-40℃~+70℃；<90%RH
Power Input	DC 24V士15%
Protection	IP66; TVS 6000v, lightning protection, surge protection, and spike protection
Power Consumption	Max.75W
Dimenstion(mm)	250x472x360mm (W x H x L)
Peripherals	Heater, wiper and fan
Weight	<20kg
Storage	Support Micro SD card (Max.512G)
Serial Port	1 channel RS485, can support Pelco protocol
General
Work Environment	-40℃~+70℃；<90%RH
Protection	IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Certification	CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3
Power Consumption	≤300W
Dimenstion(mm)	623.6×398.5×350
Weight	30KG
