MZT093FA Two-Axis Four-Light Rotary Table

China Moneypro

The MZT093FA Two-Axis Four-Light Rotary Table is a lightweight, highly stable optoelectronic surveillance system featuring an uncooled infrared thermal imager, servo-stabilized two-axis platform, and advanced image tracking. Designed for unmanned vehicles, ships, and sentry towers, it delivers 24/7 ground target detection, identification, and tracking with real-time infrared video output. The system offers automatic target recognition, multiple search modes, stabilized line-of-sight isolation, and memory tracking capabilities. With a 1280×1024 detector resolution, 900mm lens, and 8-14 micrometer operating band, it achieves exceptional thermal sensitivity. The platform provides 360-degree azimuth rotation and -90 to +90 degree pitch control at speeds up to 80 degrees per second. Ideal for border defense, coastal monitoring, and high-point surveillance, it weighs under 35kg and operates reliably in extreme temperatures from -40 to 65 degrees Celsius.

The MZT093FA two-axis four-light turntable consists of an uncooled infrared thermal imager, a two-axis servo-stabilized platform, and an image tracker. It features lightweight construction, high stability and precision, and high integration, and can be applied to unmanned vehicles, ships, and sentry towers. It enables the search and verification of small surface targets and near-shore targets in the sea.

The photoelectric turntable uses an uncooled infrared thermal imager to detect, identify, and track ground targets around the clock, and outputs infrared video in real time for mission personnel to view.

Optoelectronic turntables are mainly used in various scenarios such as air detection, ground detection, border and coastal defense, high-point monitoring, and border sentry posts.

I. Photos of the actual product

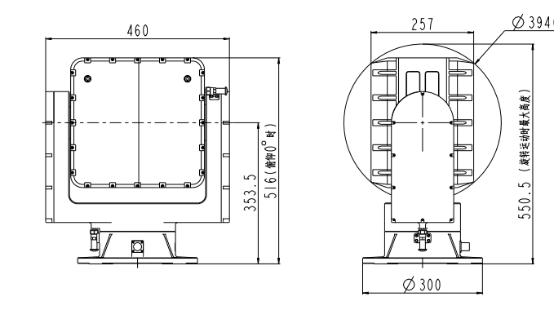

Figure 1 Product Image

II. Product Functions

a) It has the function of automatic identification and tracking of typical targets;

b) It has self-testing and fault reporting functions;

c) It has infrared band detection capability and can output infrared images;

d) Possesses the ability to move with two degrees of freedom: azimuth and pitch;

e) It has multiple working modes such as automatic search , manual search, follow-up, automatic tracking, and favorites;

f) In manual search mode, it has the function of receiving control station commands and completing turntable operations;

g) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;

h) It has a target locking /unlocking function, and after locking the target, the turntable output image is an image with a tracking frame;

i) It has an automatic target tracking function, which can automatically track targets and is resistant to natural interference;

j) It has a memory tracking function, which allows the target to be recaptured in a short time after being briefly lost;

k) It has the function of adjusting the gate size;

l) It has a tracking point switching function;

m) Optical cabin airtight;

n) It has photo and video recording functions .

III. Platform

Unmanned vehicles, shipborne equipment, sentry towers, etc.

IV. Main Technical Parameters

model	ZT093FA
Infrared thermal imager
Detector type	Uncooled focal plane detector
Operating band	8 m 14 m
Detector resolution	1280 1024
Pixel size	12 m
Lens focal length	900mm
Field of view	9.8 7.8
splicing field of view	8 28
Pseudo-color	6 types
Noise equivalent temperature difference	NETD 40mK
Minimum distinguishable temperature difference	MRTD 500mK
Servo Platform
Orientation angle	360 n (360 continuous rotation)
Pitch angle	-90 to +90 (positive for upward)
Maximum turning speed	Azimuth 80 /s, Pitch 80 /s
Maximum turning acceleration	Azimuth 80 /s2, Pitch 80 /s2
System Indicators
Image tracking	Automatically track selected target
Power supply voltage	20V 32VDC
power	Stable power consumption: 60W (peak power consumption 240W)
weight	35Kg

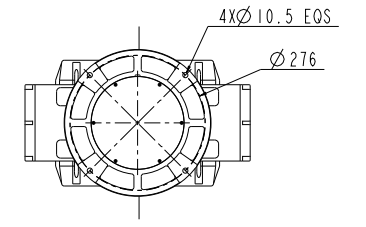

volume	300mm 460mm 550.5mm
interface
Control Interface	422/100Mbps network
Video interface	100M network
Storage interface	128G memory card (Mini SD card)
Image format	JPG format
Video format	AVI format
Environmental adaptability
Operating temperature	-40 65
Storage temperature	-45 80
Vibration conditions	The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions.
Impact conditions	Peak acceleration 20g, duration 11ms
Protection level	Protect from light rain
