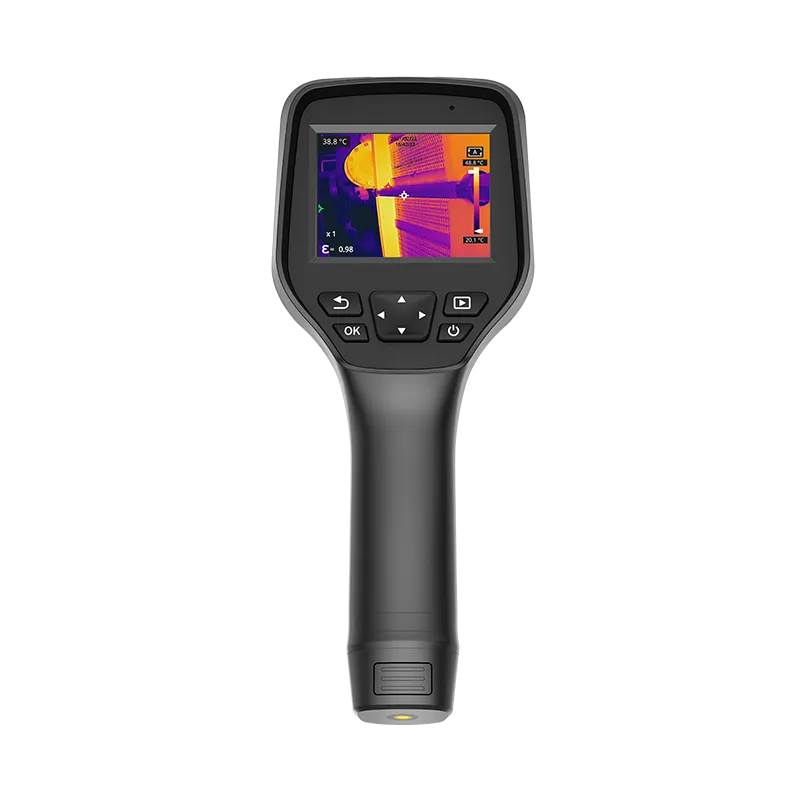

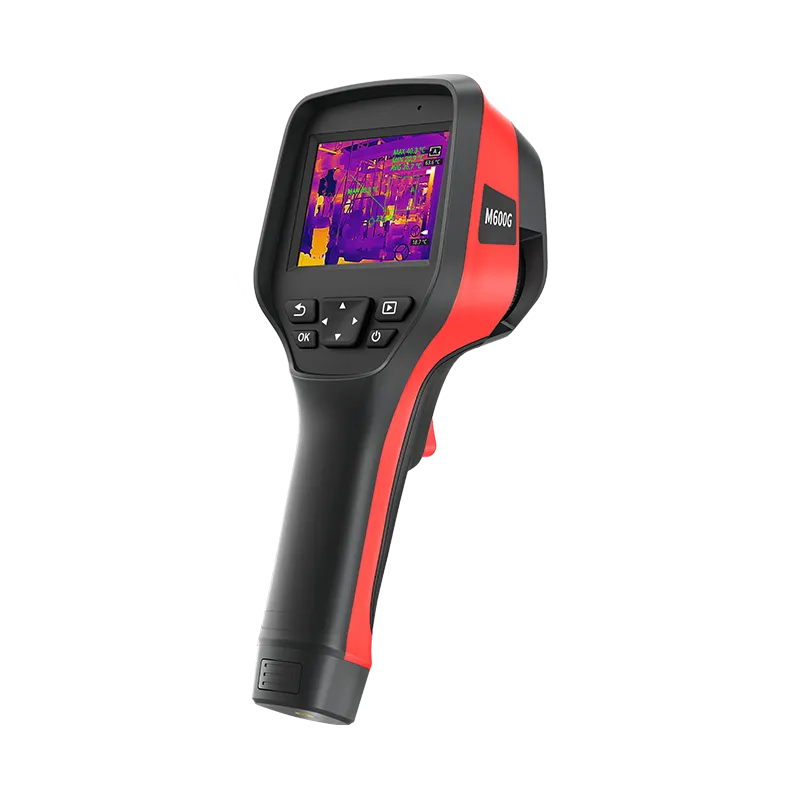

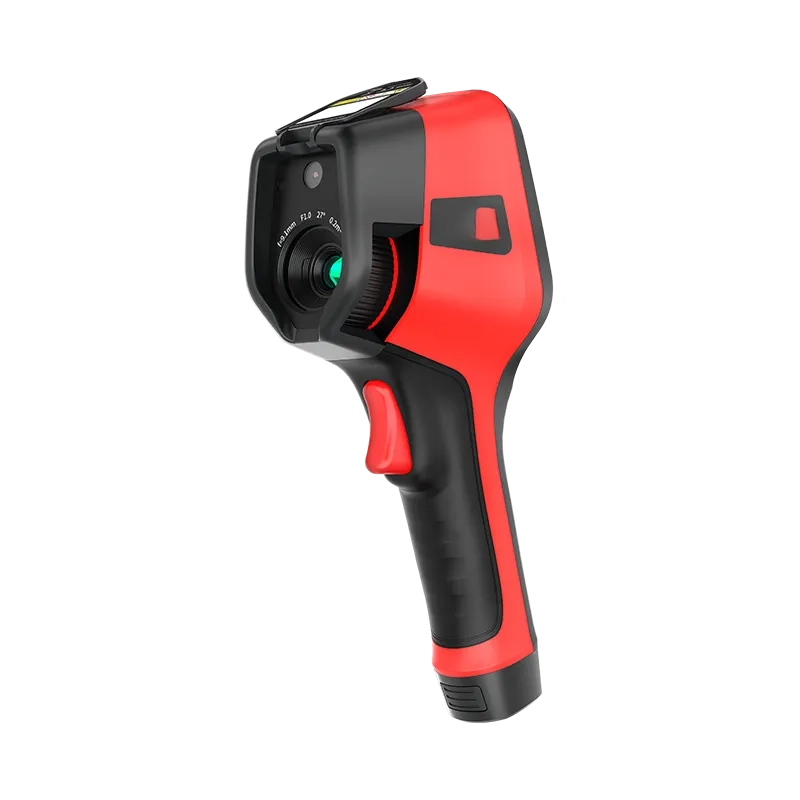

MRM600G Professional Handheld Thermal Camera

China Moneypro

RM600G is a professional-grade handheld thermal camera, featuring high resolution and manual focus for temperature measurement.

It is equipped with a self-developed 640 512 infrared detector, providing a high sensitivity of 35mK.

It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.

Feature

Clear Thermal Images, Precise Temperature Measurement

12 m high-performance 640 512 uncooled infrared detector.
NETD as low as 35mK, capable of distinguishing temperature differences of 0.035 C.
USB plug-and-play analysis, real-time full-frame transmission, and analysis of temperature information.

Professional Functions, Multi-dimensional Design

Support full-frame high/low-temperature alarms and scheduled image capture, and record temperature rise changes.
Capable of automatically tracking the highest temperature, the lowest temperature, and the central-point temperature within the measurement area.
Support multiple image modes+10 palette settings to meet temperature measurement under different requirements.
Support professional thermal imaging analysis software on the app, PC.

Hard-core Configuration, High-end Experience

IP54 and 2m drop protection, solid and durable.
3.5-inch touch screen, 640 480 resolution
Built-in laser pointer module for quick target locating.

Specification

Thermal Imaging
Detector Type	Uncooled infrared detector
Infrared Resolution	640 512
Pixel Size	12 m
Spectral Band	7.5-14 m
NETD	35mK (25 C,F1.0)
Frame Rate	30 Hz
Lens Focal Length	9.1mm
FOV	48 38
IFOV	1.31mrad
Focusing Mode	Manual focusing
Measurement Range	-20 C~+150 C, 100 C~550 C
Measurement Accuracy	2 C or 2% of readings, whichever is greater
Imaging Display
Display	3.5-inch touch screen, 640 480 resolution
Visible Light Camera	5 megapixels
Digital Zoom	1 , 2 , 4 , 8
Palettes	10
Image Mode	Infrared, visible light, PIP, dual-spectrum fusion
Temperature Width Stretch	Automatic/Manual
Image Storage
Storage Medium	Standard 32GB MicroSD, up to 512G
Text Notes	Support
Voice Annotation	Support
Image Naming	Auto/manual naming, naming by scanning QR code
Measurement and Analysis
Analysis Functions on the Device	Custom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature display
Supporting Software	PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)
System Functions
Communication Protocol	Wi-Fi, USB
Video Transmission	Support UVC video transmission
Laser Pointer	Support
Others
Battery	Rechargeable and detachable lithium-ion battery
Charging Mode	USB Type-C or desktop charger
Battery Life	About 6h (about 3h for a single battery)
Interface	USB Type-C, SD card
Tripod Socket	UNC 1/4-20 interface for tripod
Operating Temperature	-10 C~+50 C
Operating Humidity	10%~95% (non-condensing)
Storage Temperature	-20 C~+60 C
Ingress Protection Rating	IP54
Shock and Vibration	Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
Weight and Dimensions	About 670g, 258.4 105.1 102.3mm
Authentication	CE/RoHS/CMA, etc.
Packing List	Thermal camera, 5V 3A power adaptor, USB cable, SD card, battery 2, Quick Start Guide, battery charger, calibration certificate, package list, safety box
